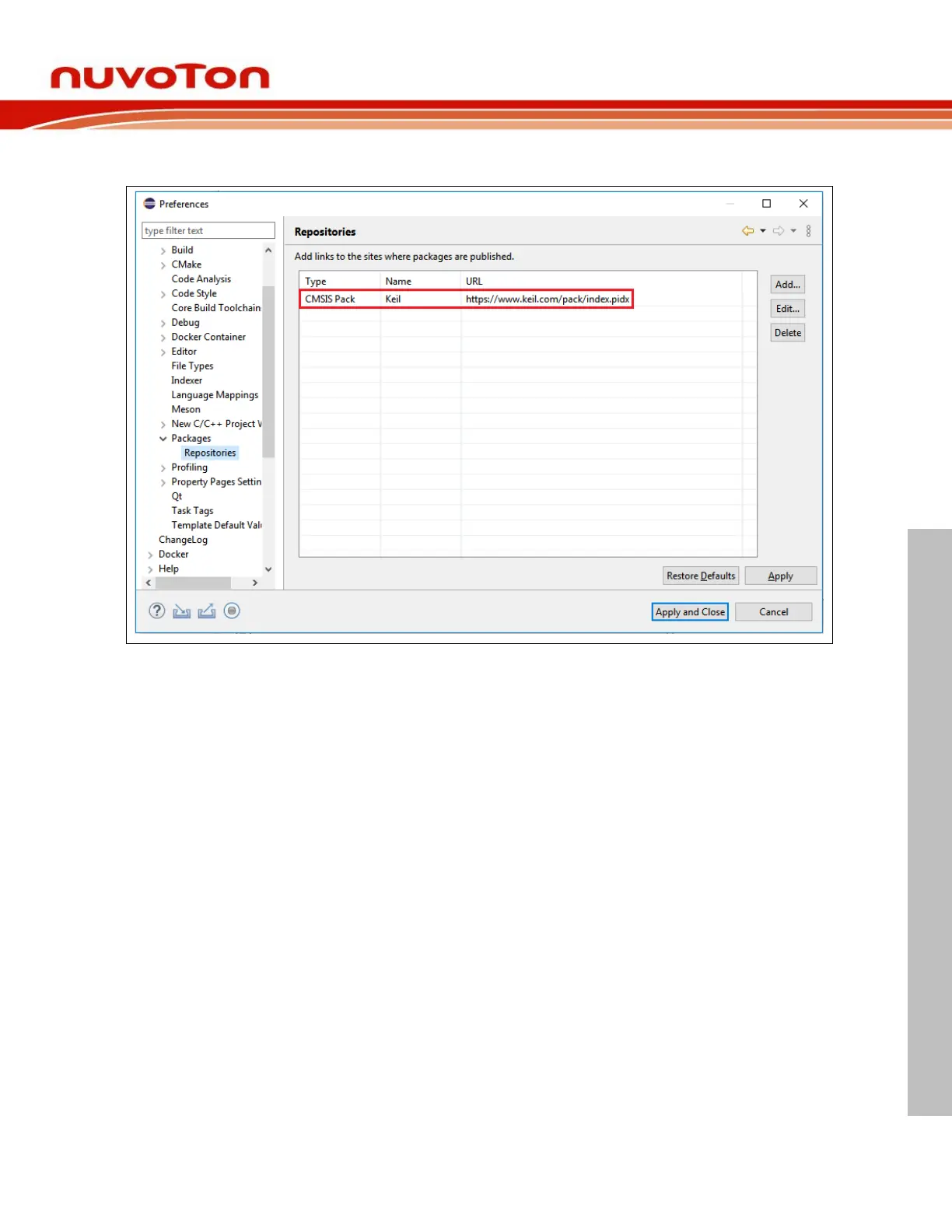

The locations of repositories are specified in the Window > Preferences > C/C++ > Packages >

Repositories. The default is from Keil’s CMSIS Pack.

Figure 4-15 Locations of Repositories
