Apr. 25, 2022 Page 27 of 57 Rev 1.02.019

ECLIPSE USER MANUAL

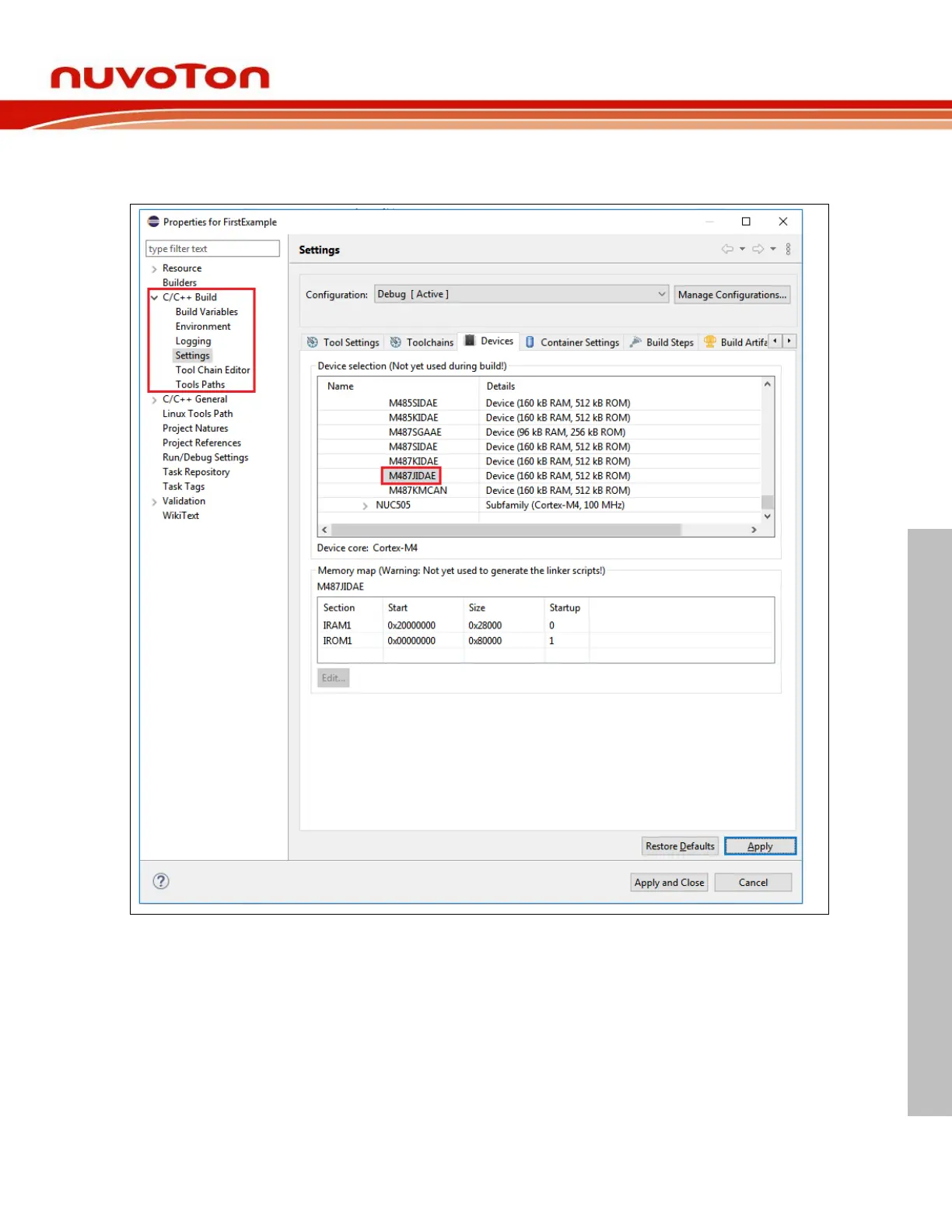

To use the specific SFR file, open the project’s properties dialog and go to the C/C++ Build > Settings.

From there, we should choose the specific device matching the real one. In this case, it is M487JIDAE.

Click the Apply button to take effect.

Figure 4-17 Device Selection
