88 Quadro Workstation User’s Guide
Chapter 6
Configuring HDTV

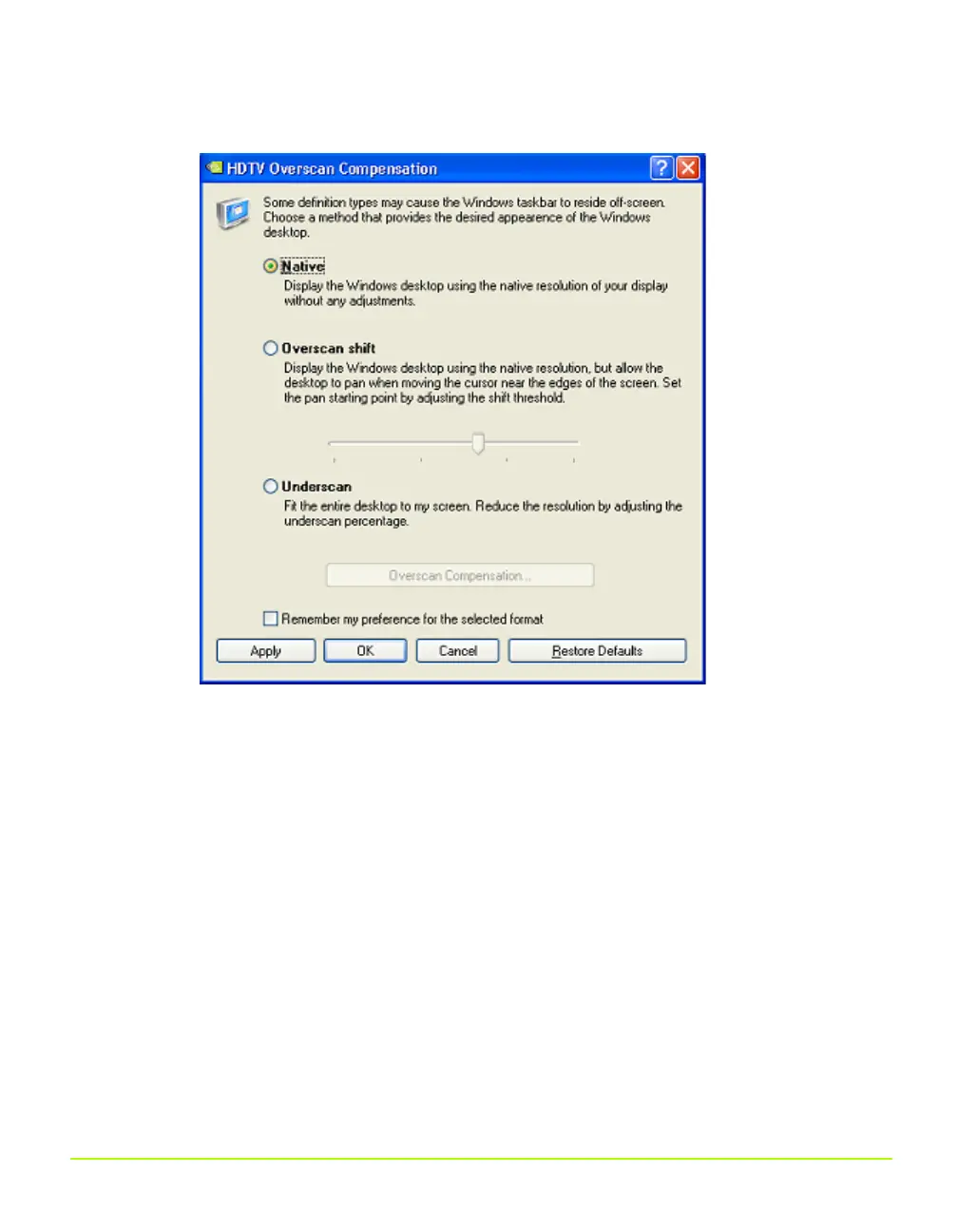

Figure 6.6 HDTV Overscan Configuration — “Native” Selected
Using Overscan Shift
As explained in “Overscan Shift” on page 80, use this option when your desktop
appears larger than your HDTV screen so that part of your Windows taskbar, such as
the Start button or the clock are not visible. Overscan shift will enable you to “pan”
your desktop by moving your mouse over the edges of your desktop so that the
hidden areas become visible.
1 From the HDTV Overscan Configuration page, select the Overscan shift option
(Figure 6.7) and click Apply.
2 Use the slider to indicate to what degree you want to pan the edges of the desktop
for the hidden parts to be visible. If you move the slider all the way to the left, that
indicates “zero” panning. The further right you move the slider, the more you
have to pan.
3 Click OK or Apply when done.
