Nvidia Quadro Workstation - NVIDIA Multi-Display Support

40 Quadro Workstation User’s Guide
Chapter 4
Using nView Multi-Display Settings
NVIDIA Multi-Display Support
The following are sample display combinations that NVIDIA GPU-based multi-
display cards support when used with the NVIDIA ForceWare graphics display
driver:
• Two RGB displays with second RAMDAC (digital-to-analog converter)
• Two analog flat panels
.

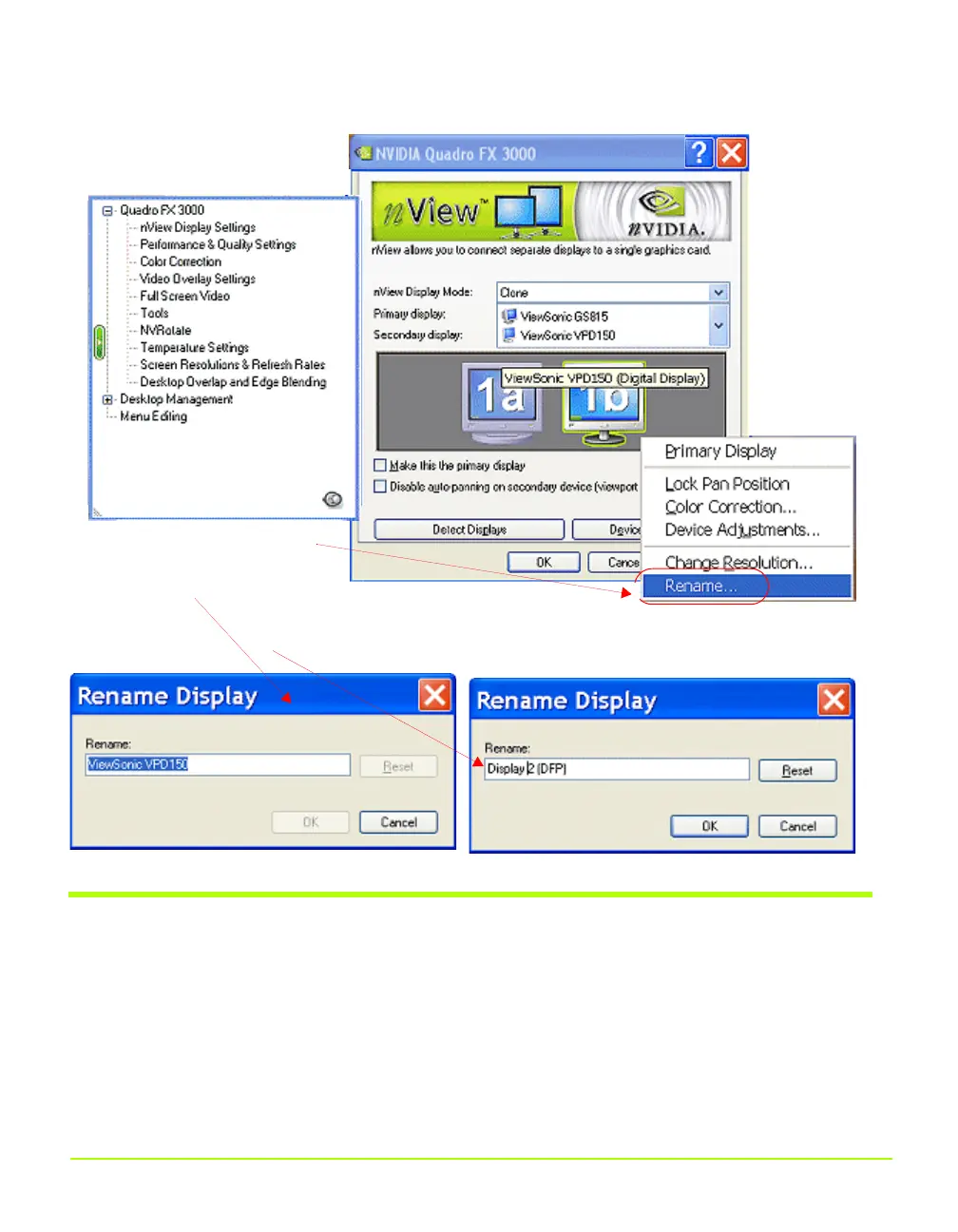

1. Select Rename from the
display’s context menu to
open the Rename Display
dialog box.
2. Then enter a new name and click OK to show the new name on the nView Display Settings
page (Fig. 5.5).
