Oki C3400N - Page 87

43163501TH Rev.1 87 /
9-2 43206501 Guide-Assy.-Eject-U

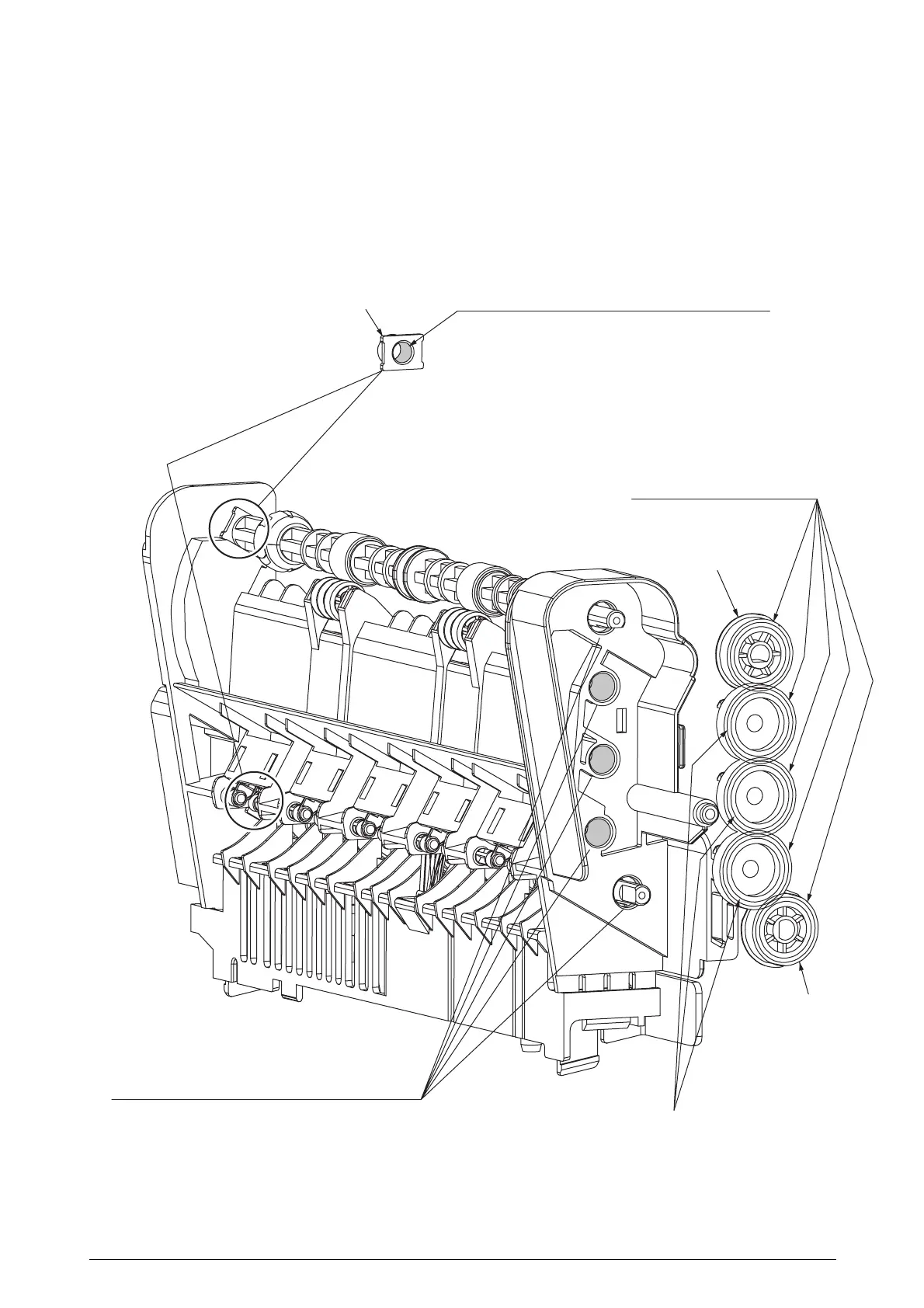

Apply MOLYKOTE (EM-30L)
to the gear tooth surface.
EM-30L Class C
Gear-Idle-Exit (Z19)
Gear-Idle-Exit (Z19)
Gear-Idle-Exit (Z21)
Bearing-Eject (FD.FU)
(2 points)
Apply MOLYKOTE (EM-30L) to the hatched areas.
EM-30L Class C
Apply MOLYKOTE (EM-30L) to the hatched areas.
(In gear bearing part)
EM-30L Class C
