4. REPLACEMENT OF PARTS

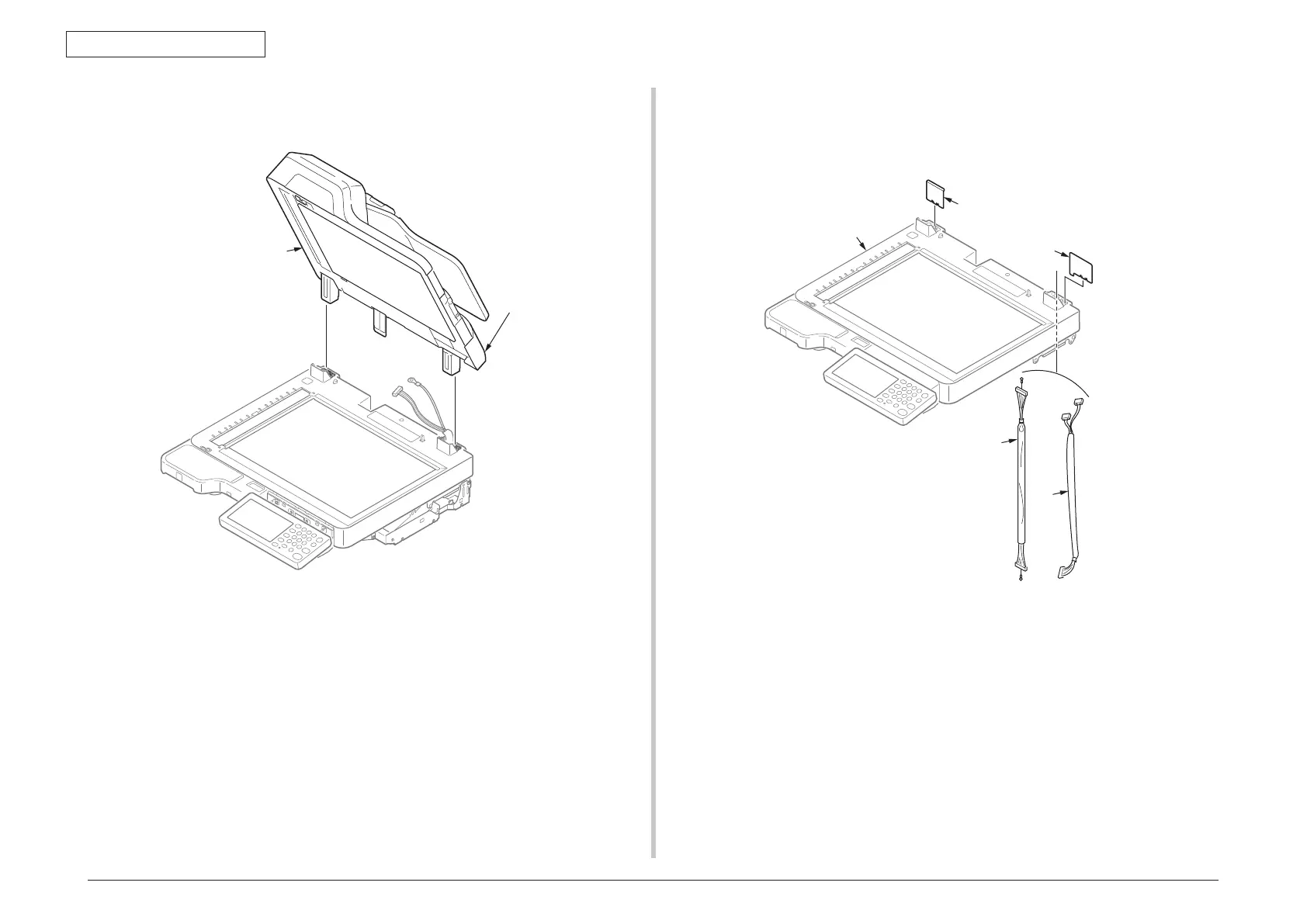

(6) Remove the CONN Cord
①
and
③
from the Flatbed-unit.
(7) Remove the Film-Guard(L)
⑤
and the Film-Guard(R)
⑥
from the Flatbed-unit.
Flatbed-unit
①
③
⑥
⑤
(5) Remove the ADF-unit
④
with pull the cables to out of the Frame-Base(ADF) and
Hinge.
④
Fr
ame-Base(ADF)
