45850101TH Rev.1
4-33
4.2.14 Cable-Assy-Head / Lever-SNS / Photo Sensor
(1) Detach the top cover Assy. (Refer to section 4.2.13)
(2) Disconnect the head FFC from the connector of the LED head. (Refer to section
4.2.7)

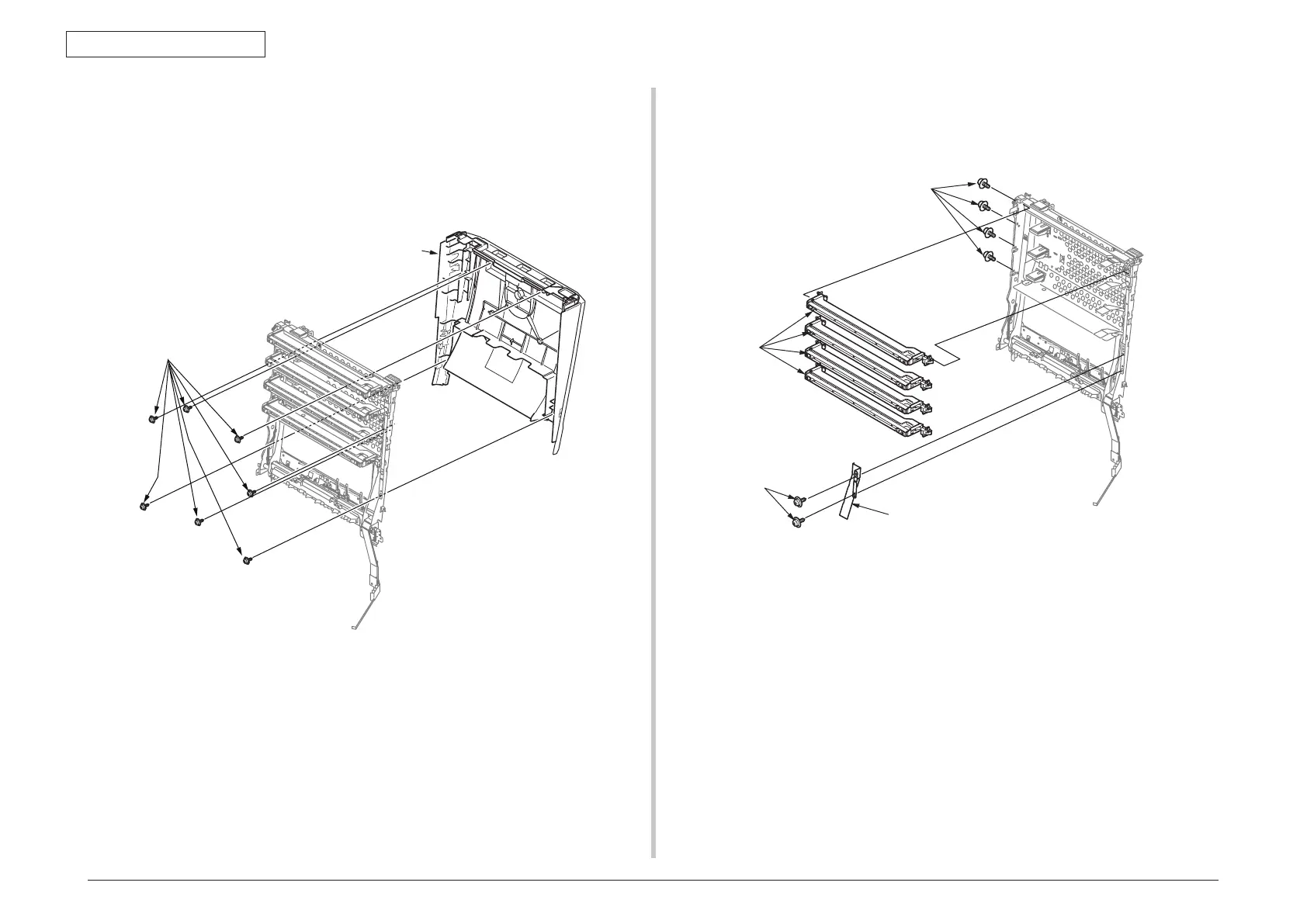

(3) Remove the seven screws (black)
①
and detach the top cover
②
.
(4) Remove the two screws (silver)
③
and the plate shield FFC
④
.
(5) Remove the four screws (black)
⑤
and the head holder Assy.
⑥
.
②
①
③
④
To Next Page
