45850101TH Rev.1
4-32

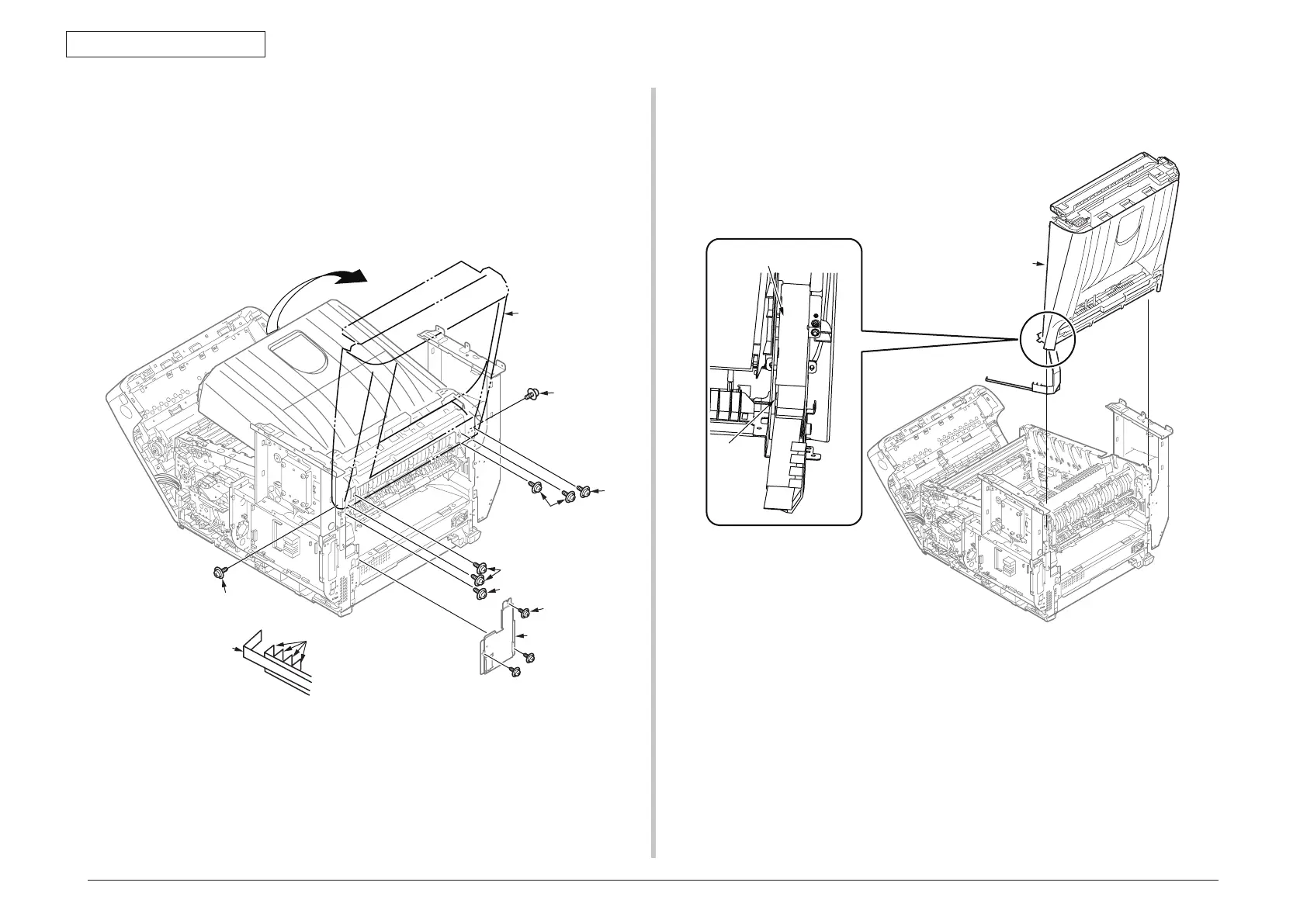

(15) Hold the top cover Assy
⑧
and lift it to detach.
Plate shield FFC
Spring
⑧
Notes on assembling:
The plate shield FFC must be placed at the outer side of the spring.
(11) Remove the three screws (silver)
④
and the plate FFC
⑤
.
(12) Detach the Cable-Assy-Head, and disconnect the four head FFC cables
⑥
and the
RFID-FFC cable
⑦
.
(13) Tilt the top cover Assy
⑧
and remove the four screws (silver)
⑨
.
(14) Open the top cover Assy
⑧
fully again and remove the four screws (silver)
⑩
.
④×3
⑦
⑤
⑥
⑩
⑨
⑨
⑧
⑩
⑩
To Next Page
