45850101TH Rev.1
4-53

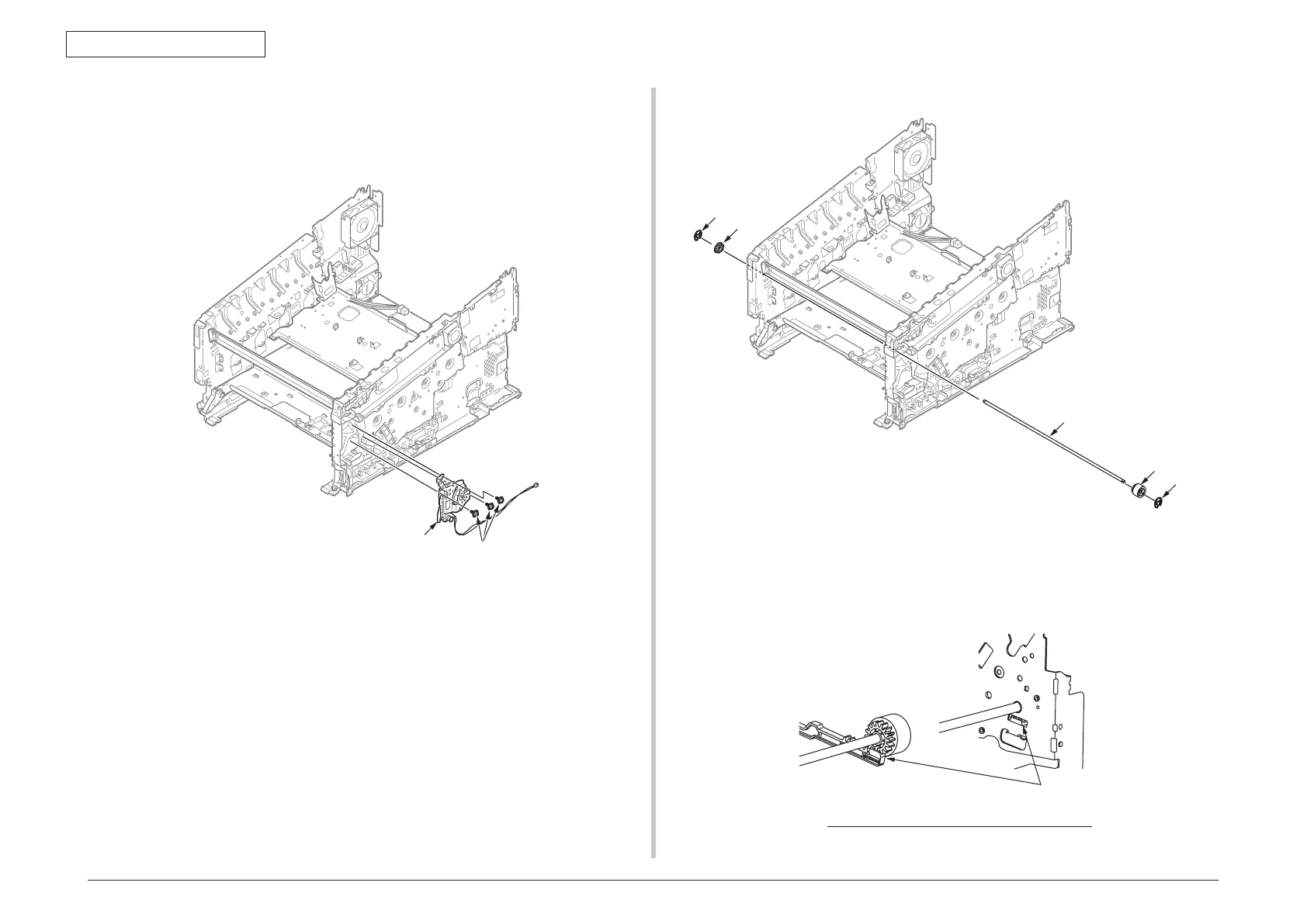

4.2.28 Side-R Assy. and side-L Assy.
(1) See sections 4.2.1 to 4.2.26.
(2) Remove the three screws (silver)
①
and the gear Assy. image drum lift-up
②
.
(3) Remove the E-ring
③
, gear lift-up C/D
④
and the shaft lift-up
⑤
.
②
③
④
⑤
④
Notes on attaching:
To assemble the gear lift-up, match the phase of the right and left gears.
Illustration of (right and left) gear lift-up positioning
Positioning chec
