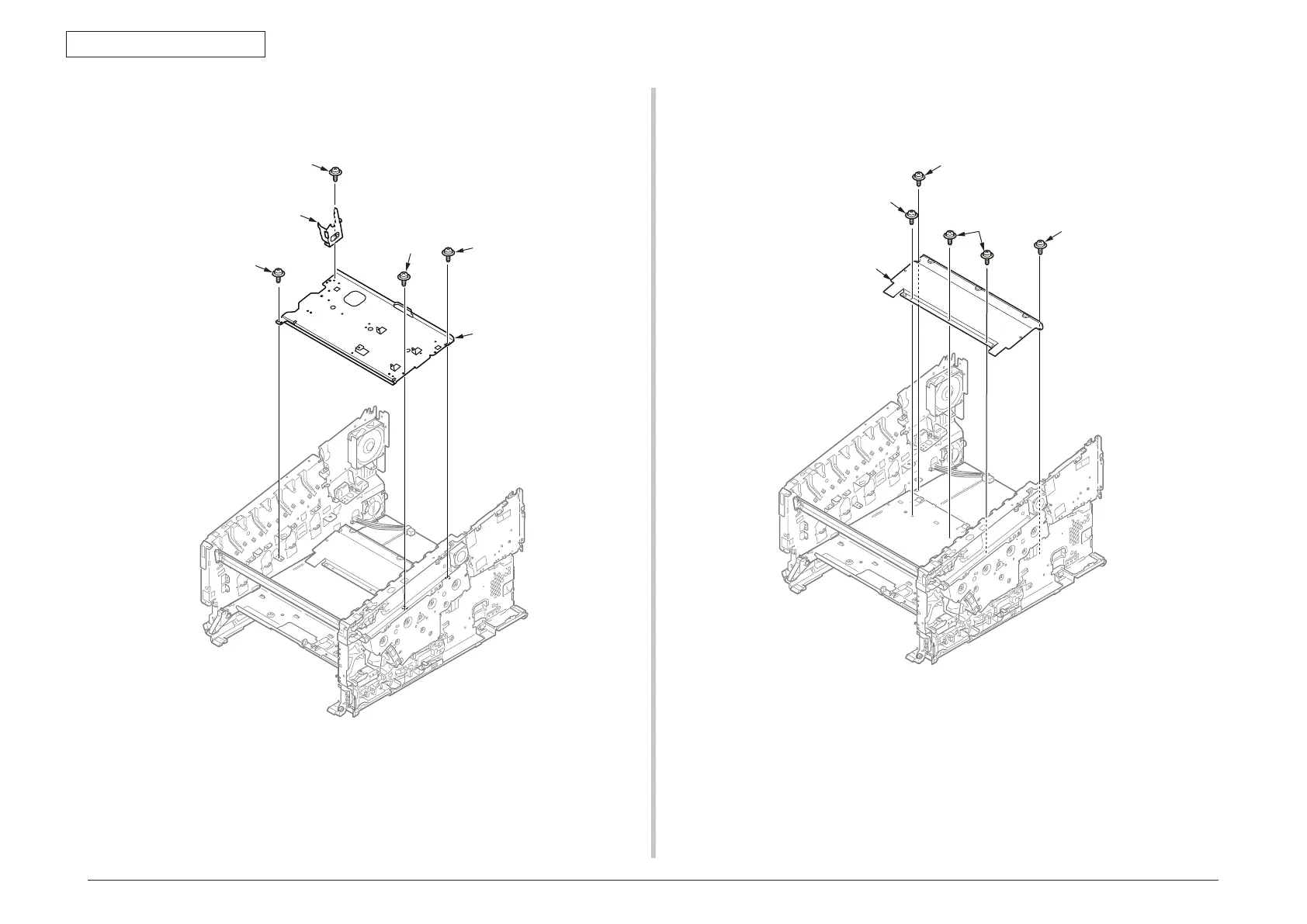

(4) Remove the screw (silver)
⑥
and the three round-head screws (black)
⑦
and
detach the plate guide belt
⑧
and the plate base registration
⑨
.
(5) Remove the two screws (silver)
⑩
and the three round-head screws (black)
⑪
and
detach the plate cover POW
⑫
.
⑦
⑥
⑨
⑦
⑧
⑪
⑪
⑫
⑩
