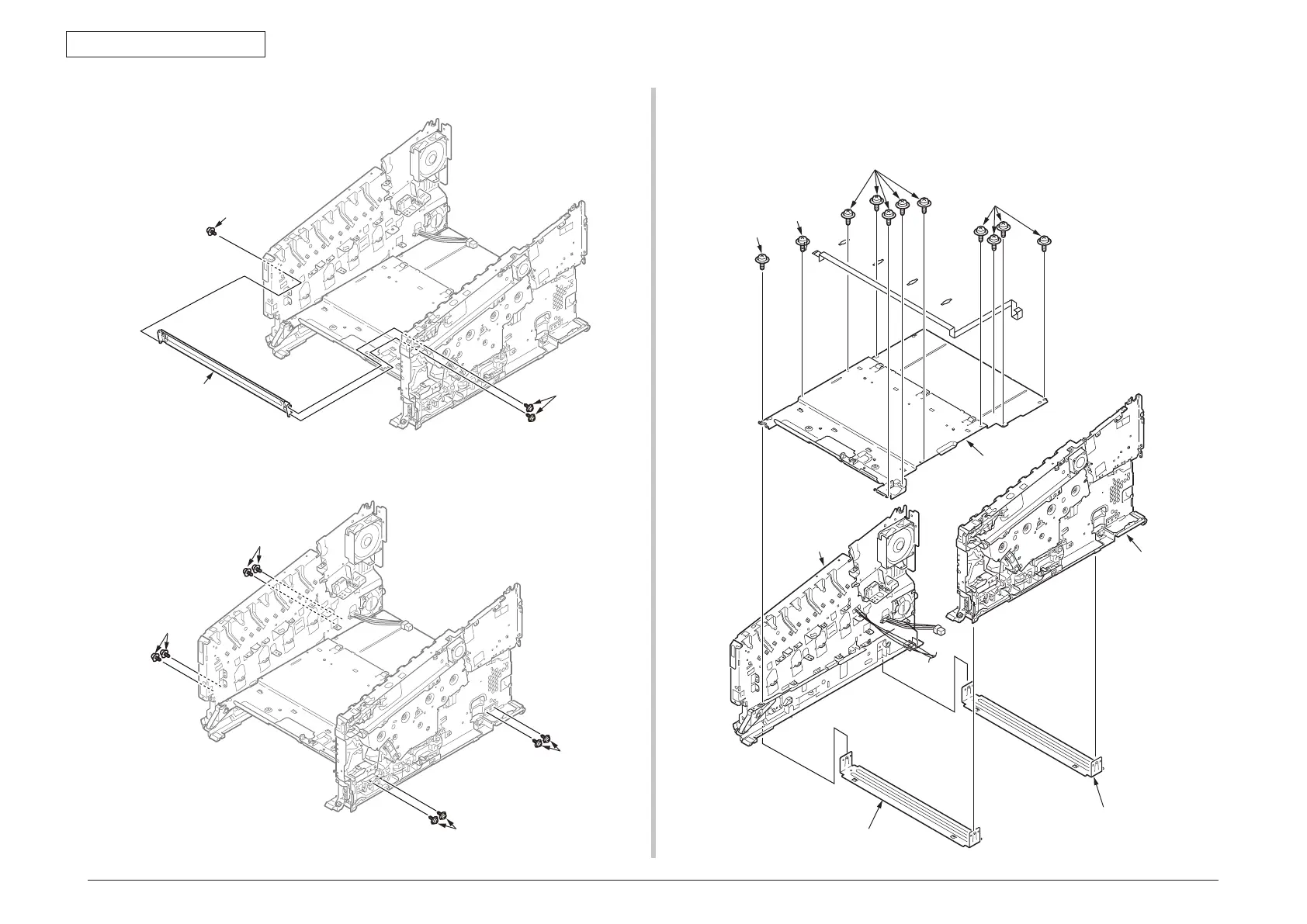

(6) Remove the three screws (silver)
⑬
and detach the plate-beam-front
⑭
.
(7) Remove the eight screws (silver)
⑮
that are fixing the plate-beam-bottom.
(8) Remove the eleven screws, ten screws (silver)
⑲
and the screw (black)
⑳
that are
fixing the plate base
⑯
and both of the plate Assy. side-L
⑰
and -R
⑱
, and detach
the plate Assy. side-L
⑰
and -R
⑱
.
Plate-beam-bottom
Plate-beam-bottom
⑯
⑰
⑲
⑲
⑳
