45850101TH Rev.1
4-56

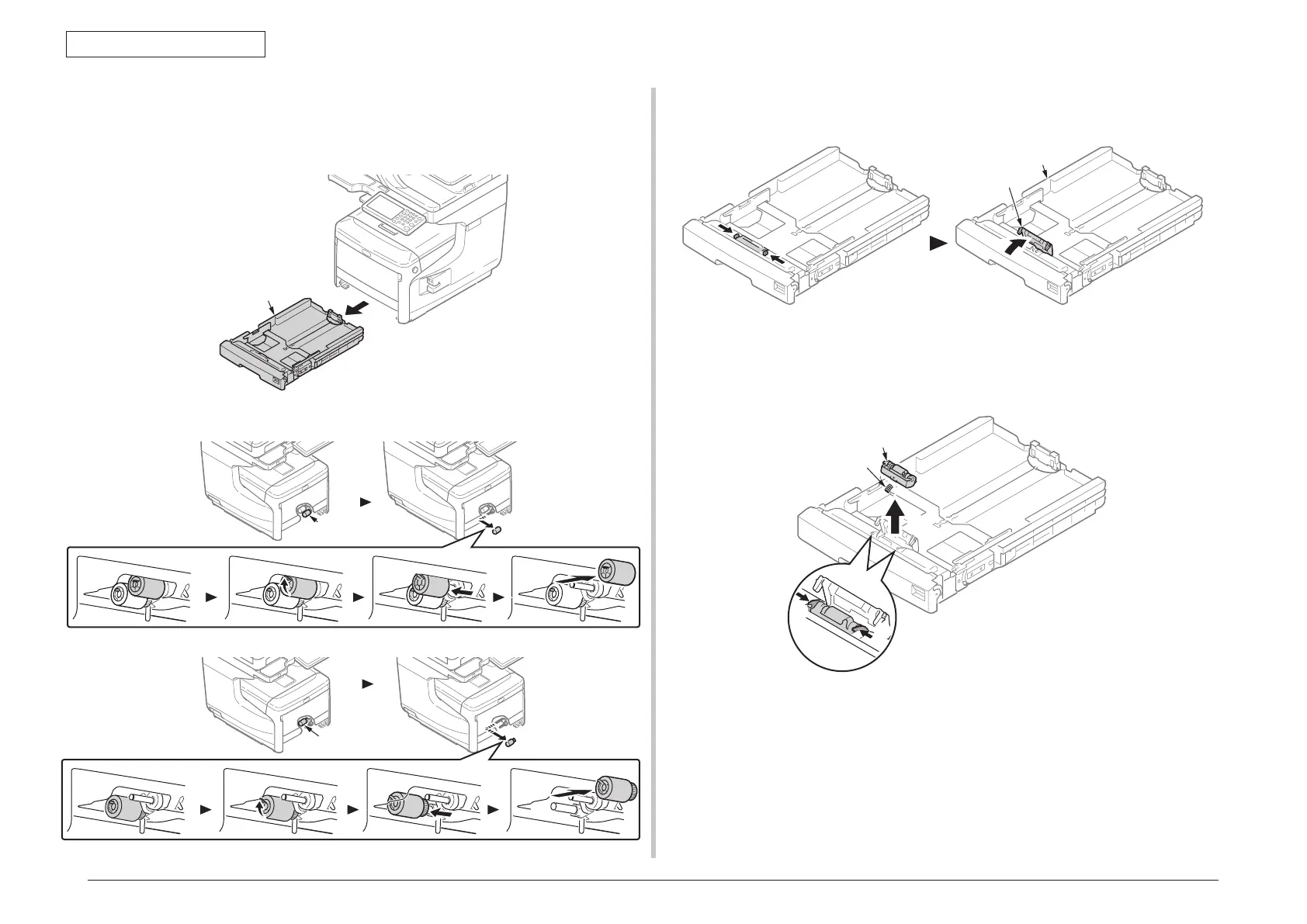

4.2.29 Feed rollers (Tray 1/2/3/4)
Note! Be sure to replace all of the three paper feed rollers.
(1) Turn off the MFP and remove the paper cassette
①
.
(2) While pressing the protrusions of the two paper feed rollers
②
and
③
outward,
detach them from their shafts.
(3) Bend the protrusion on both side of the cover
④
on the paper cassette, and open
the cover
④
by turning the cover
④
to the direction of in following figure.
①
②
④
③
(4) Remove the separation roller
⑤
and the spring
⑥
while pressing the both ends of
the separation roller
⑤
tray inward that are caught by the protrusions.
⑤
⑥
To Next Page
