4. REPLACEMENT OF PARTS
③

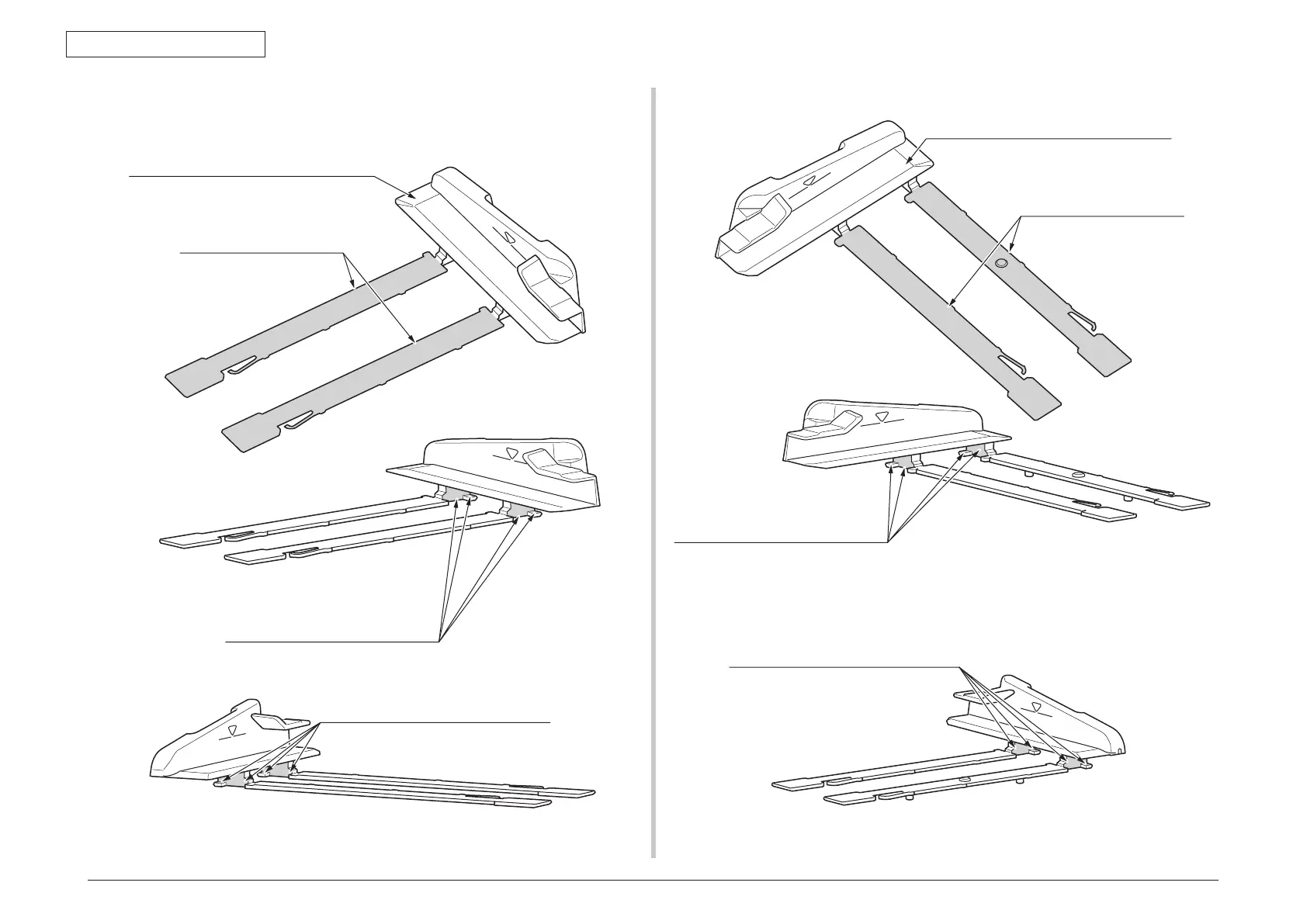

Tray-Assy-Document
1) Guide-Document-F
2) Guide-Document-R
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble the Tray-Assy-Document.
HARVES MDF-1207
Apply HARVES MDF-1207
all round of hatching arera
Without the upper surface grease adhesion
HARVES MDF-1207
Apply HARVES MDF-1207
to the hatched area.
(4 sliding surfaces)
HARVES MDF-1207
Apply HARVES MDF-1207
to the hatched area.
(4 sliding surfaces)
㻌
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble the Tray-Assy-Document.
HARVES MDF-1207
Apply HARVES MDF-1207
all round of hatching arera
Without the upper surface grease adhesion
HARVES MDF-1207
Apply HARVES MDF-1207
to the hatched area.
(4 sliding surfaces)
HARVES MDF-1207
Apply HARVES MDF-1207
to the hatched area.
(4 sliding surfaces)
