4. REPLACEMENT OF PARTS
④

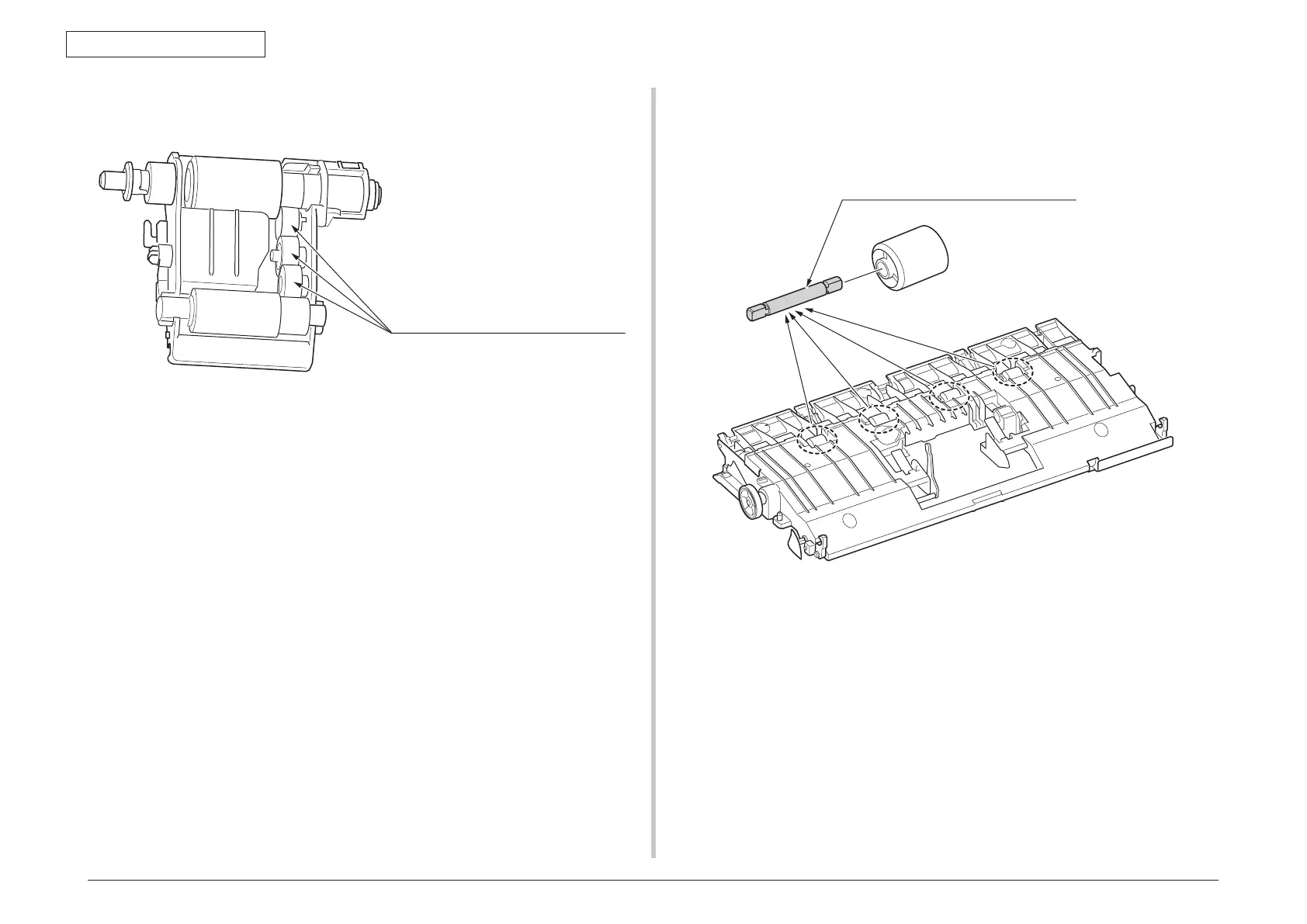

Frame-Assy.-Hopping(ADF)
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble the Gear-Planet.
HARVES MDF-1207 All around
Apply HARVES MDF-1207 all around
of Gear-Planet (3 pcs)
㻌
⑤
Cover-Assy-Top(ADF)
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble the rollers.
HARVES MDF-1207 All around
Apply HARVES MDF-1207 all around
of Shaft-Press (4 pcs)
