6. CONNECTION DIAGRAMS

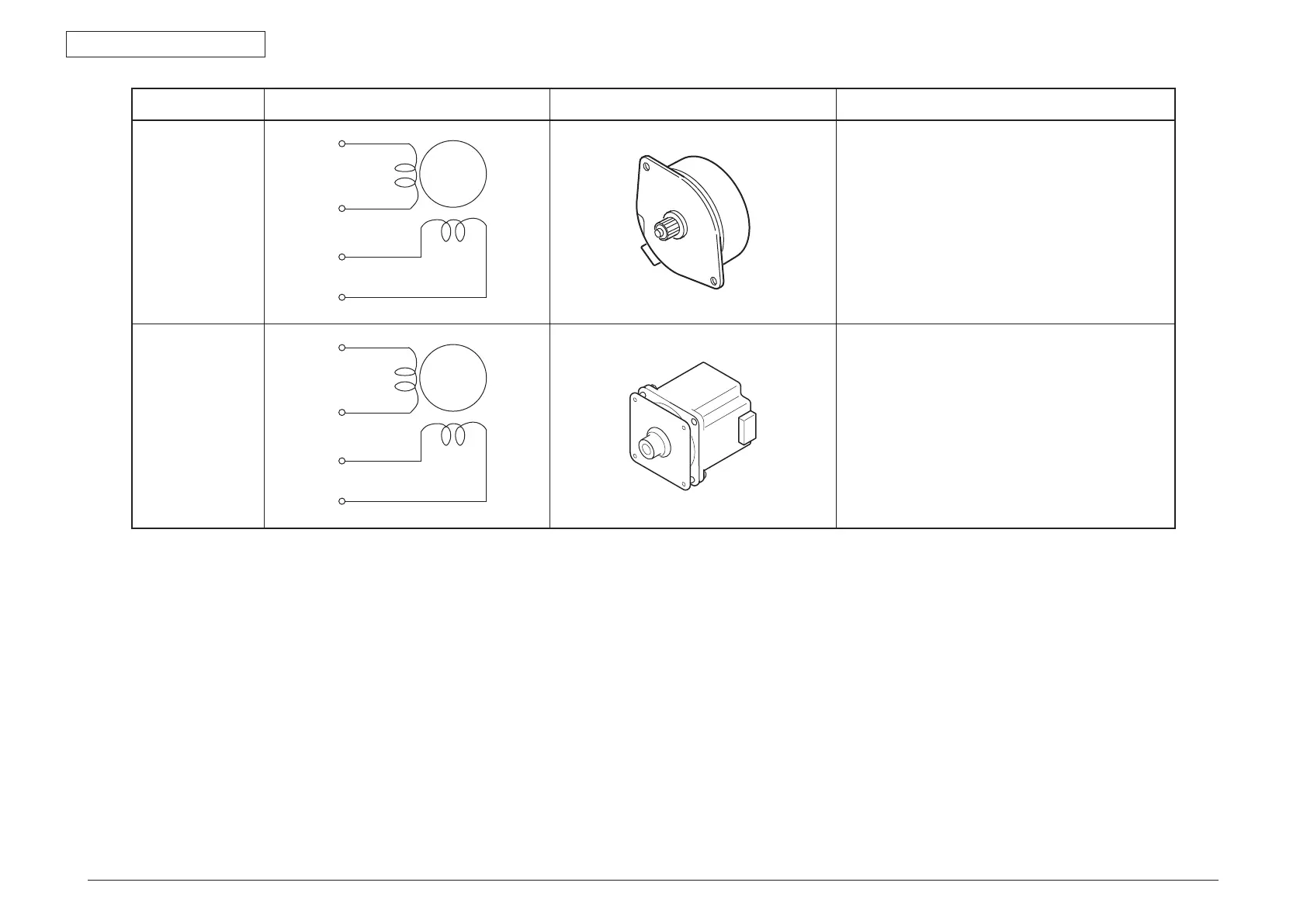

Unit Electrical circuit diagram, connection Part outside view Resistance value
Flatbed motor
M
1
3
2
4
Between pin-1 and pin-3 : 7.4
Ω
Between pin-2 and pin-4 : 7.4
Ω
ADF feed motor
ADF hopping motor
M
1
3
4
6
Between pin-1 and pin-3 : 0.9
Ω
Between pin-4 and pin-6 : 0.9
Ω
