5238-E P-115
SECTION 7 FIXED CYCLES

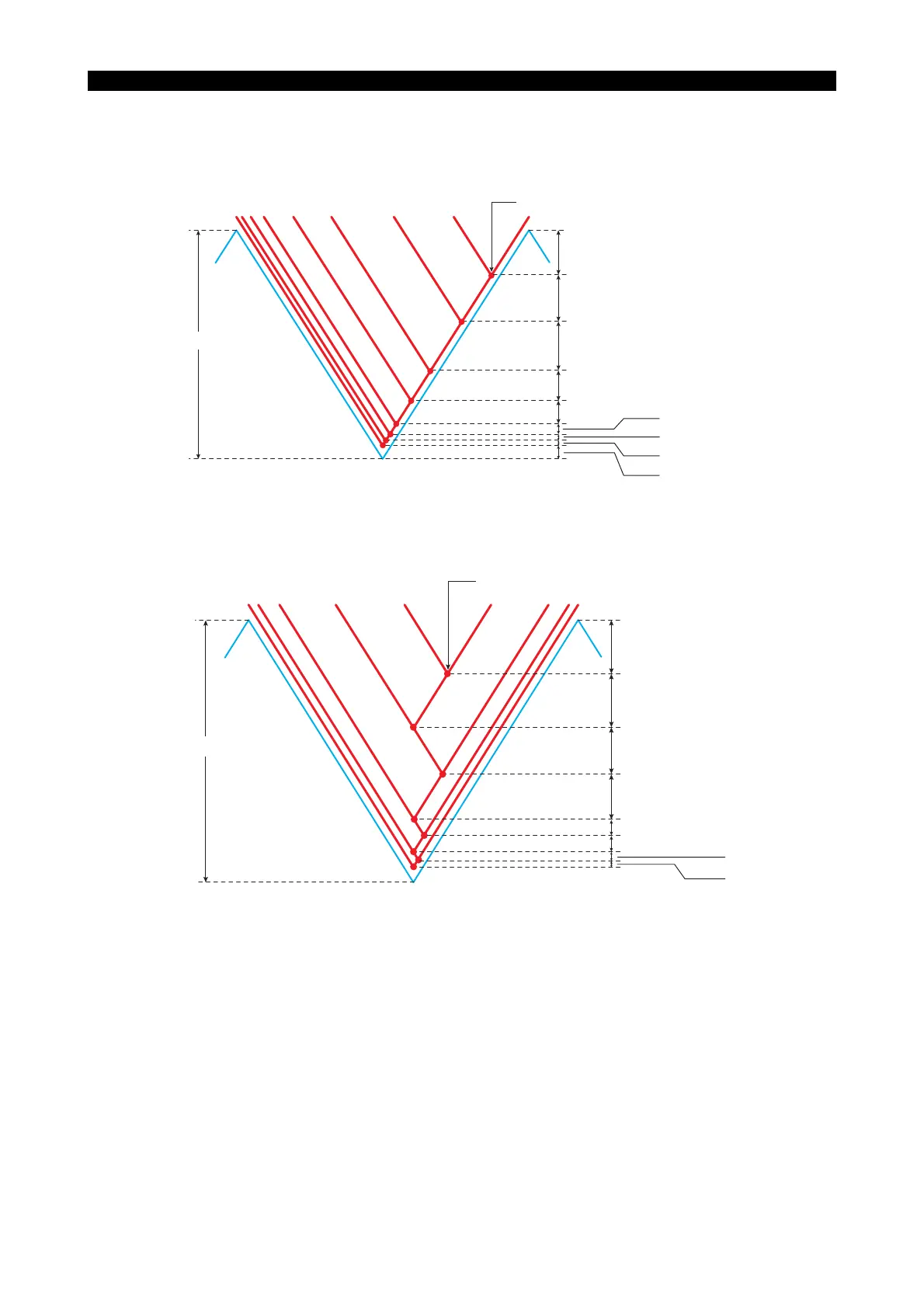

5-4-3. Longitudinal Thread Cutting Cycles
• M32 + M73 Mode
LE33013R0300900160001
• M33 + M73 Mode
LE33013R0300900160002
∆D is remainder of (H-U)/D
D/2
D/2
D/2
D/4
D/8
D/16
D/16
U/2
∆D/2
H/2
Cutting edge
D/2
D/2
3D/16
3D/16
D/16
D/16
(D+∆D)/4
(D+∆D)/4
H/2
Cutting edge
