Okuma OSP-P20L - Timing Chart Example

5238-E P-55
SECTION 5 S, T, AND M FUNCTIONS
6-3. Timing Chart Example
(1) Parameter setting
LE33013R0300700110001
(2) M Codes
LE33013R0300700110002

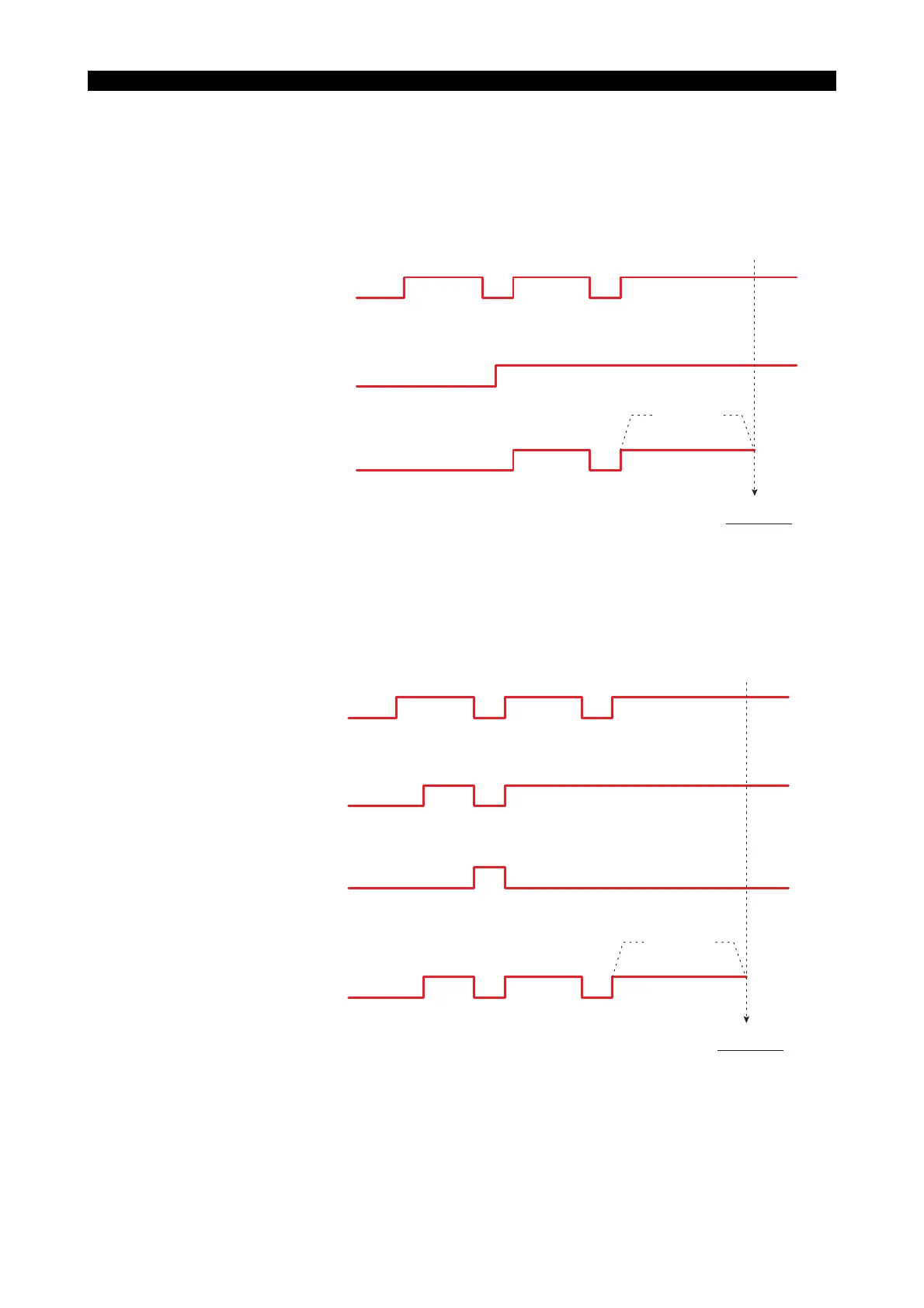

Parameter: ON STM time over check start
Parameter: OFF STM time over check end
M124 : STM time over check start
M125 : STM time over check end
STM operation in progress
Parameter
Time over check
Parameter-set
cycle time
Alarm B
Part program in progress
Time over check
Parameter-set
cycle time
Alarm B
M124
M125
