SECTION 7 FIXED CYCLES
8-19. Selection of Return Point
In the G178, G179, G181 through G184, G189 and G190 cycles, the return point after the
completion of cutting can be selected by setting at Multi cycle return point of optional parameter
(MULTIPLE MACHINING).

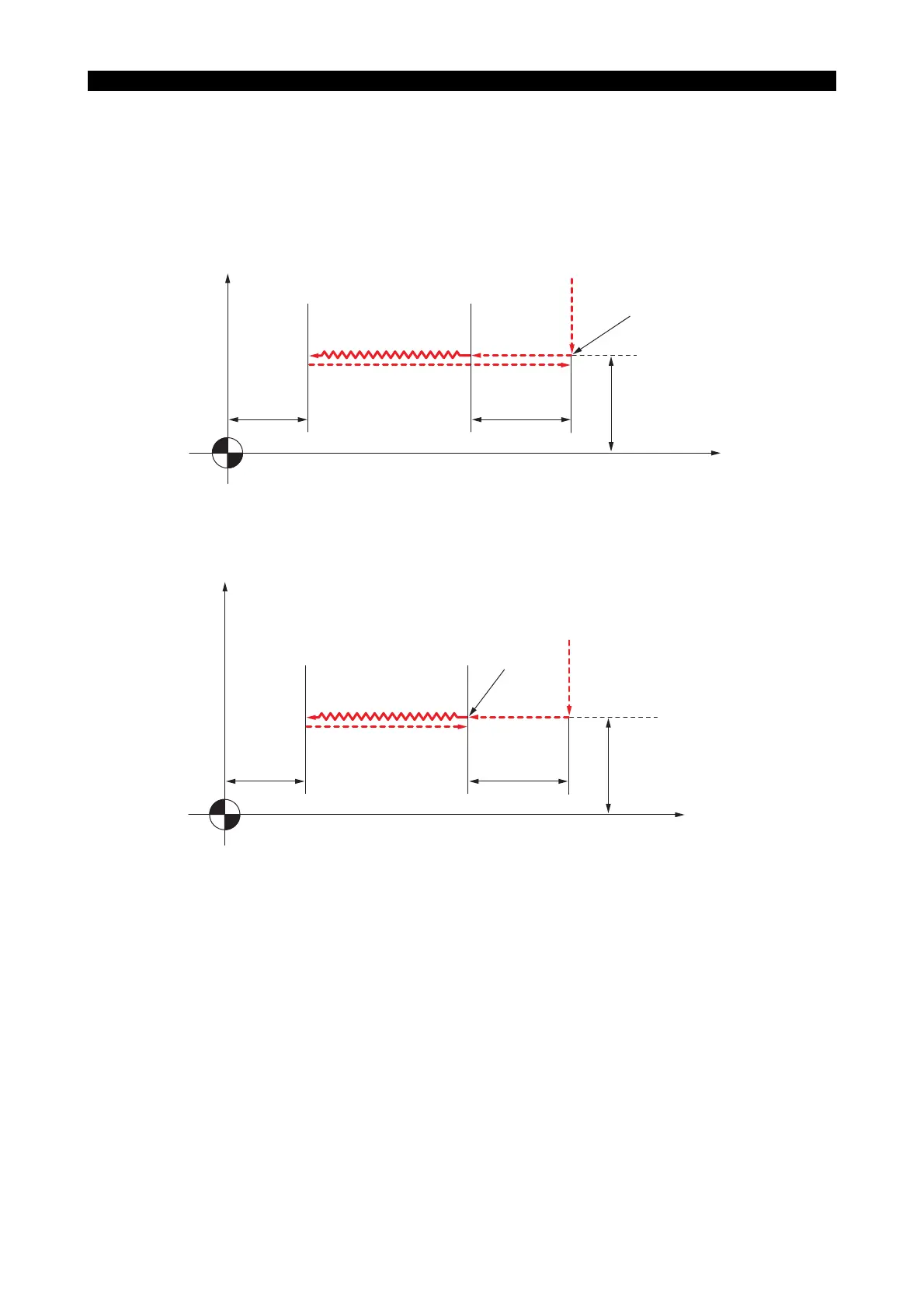

• When the setting at Multi cycle return point is "rapid feedrate start point":
LE33013R0300900490001
• When the setting at Multi cycle return point is "cutting start point":
LE33013R0300900490002
Start point
ZK
Q
4
Q3
Q2
Q1
X/2
Z
K
Q
4
Q3
Q2
Q1
X/2
Cutting start
point
