5238-E P-92
SECTION 6 OFFSET FUNCTION
2-3. Operations

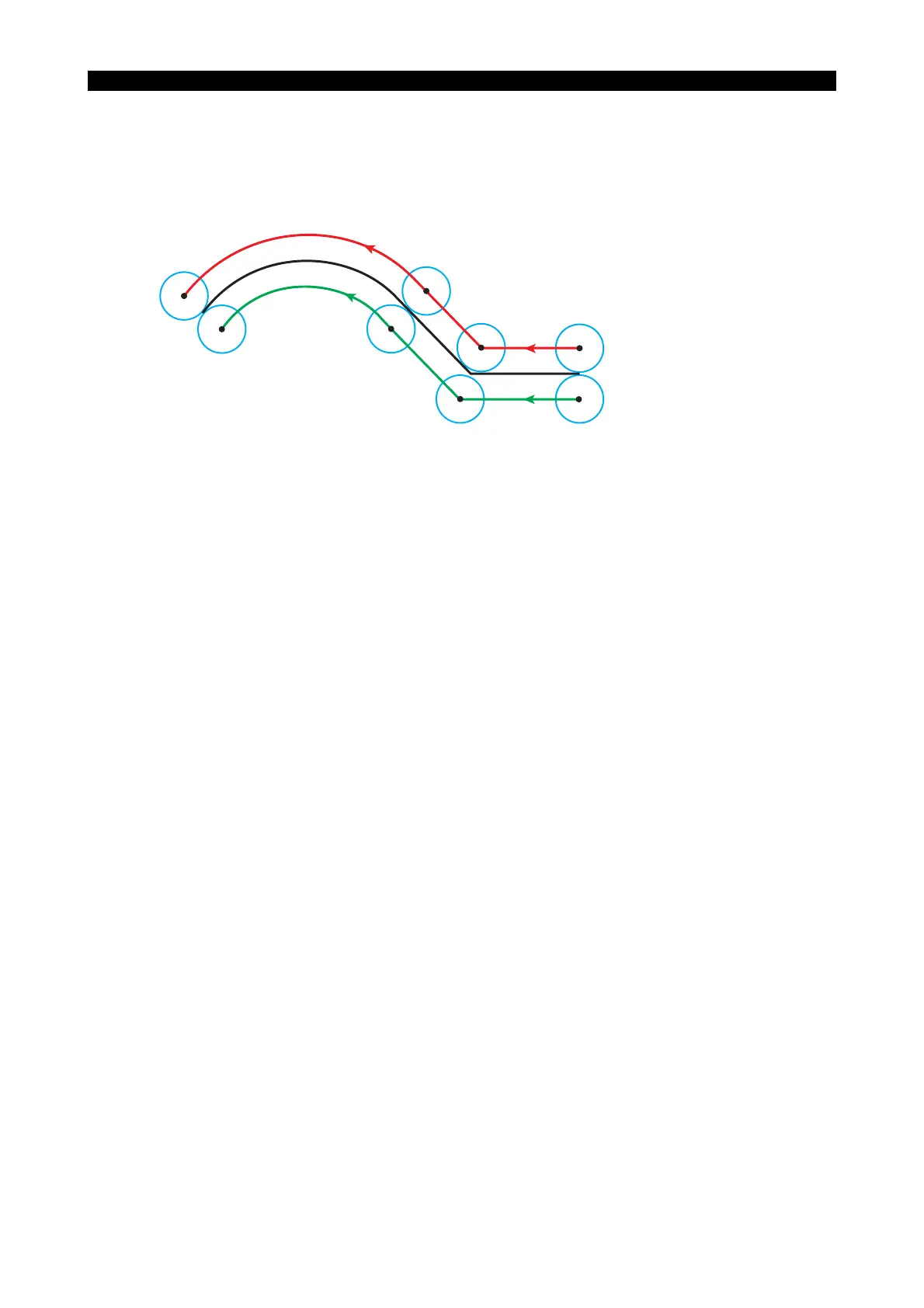

Tool motion in the G17 and G119 modes with the cutter radius compensation function active, is
illustrated below.
LE33013R0300800150001
In the cutter radius compensation OFF (G40) state, the cutter center moves along the path "a".
a : Programmed path (final shape)
b : Tool path in the G42 mode
c : Tool path in the G41 mode
b
a
c
