Okuma OSP-P20L - Transverse Thread Cutting Compound Fixed Cycle (G72)

5238-E P-111
SECTION 7 FIXED CYCLES
Example 2:
Using M33 (zigzag cutting mode) and M74 (infeed pattern 2)
LE33013R0300900080003
5-3. Transverse Thread Cutting Compound Fixed Cycle (G72)
[Function]

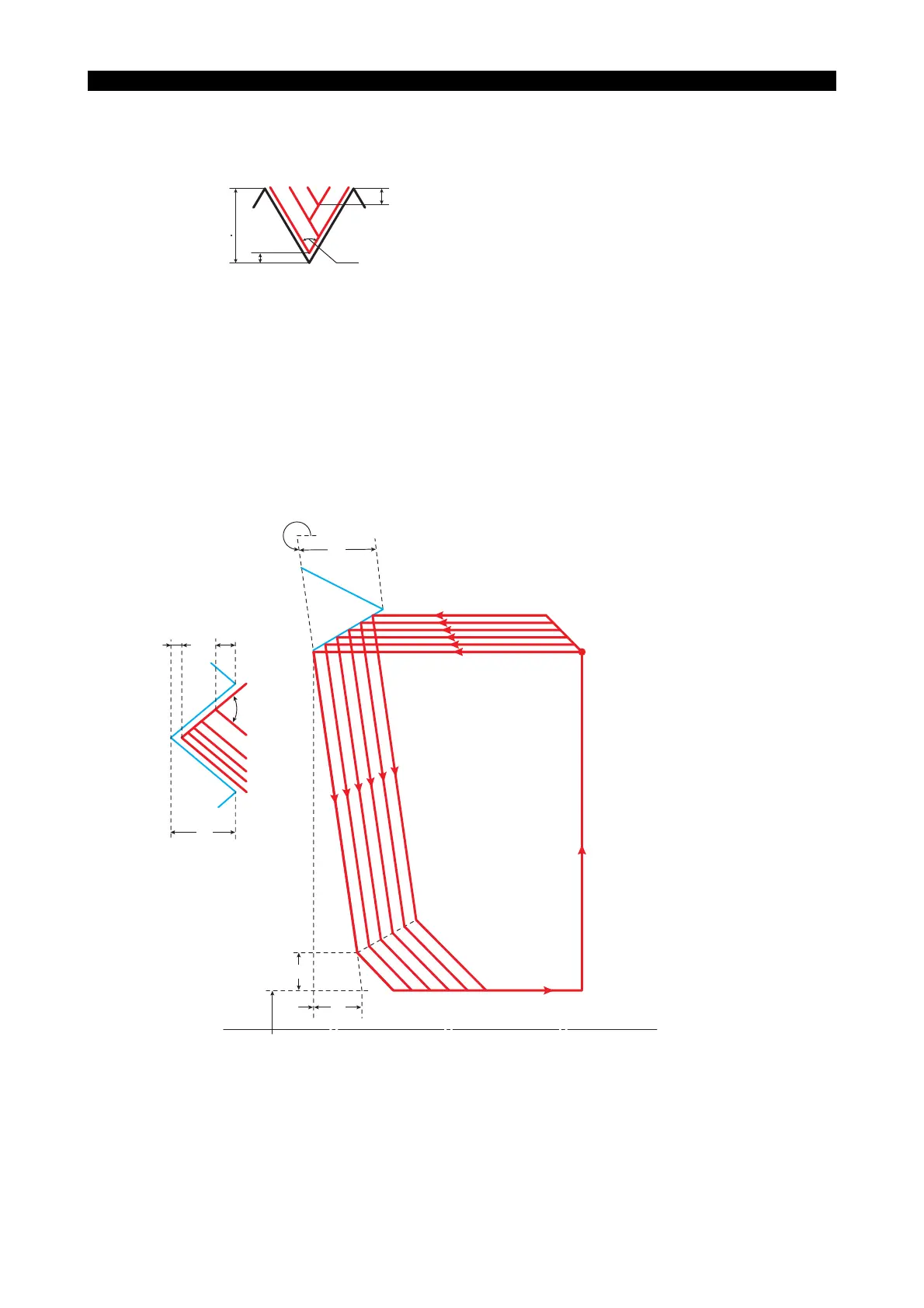

In the transverse thread cutting compound fixed cycle, the thread cutting cycle shown below is
performed.
LE33013R0300900090001
7.8/2
0.2/2
1.1/2
60°
Depth of cut in first
thread cutting cycle
N0001
$
G71 X28 I11 B60 D1.1 U0.2
M23
H7.8
M32
L3
M75
E0.2 F6
Z35
AA
H
D
W
B
H
L
ZK
X
Starting point of
thread cutting cycle
