SECTION 8 LATHE AUTO-PROGRAMMING FUNCTION (LAP)
10-5-4. Precautions when Executing a Bar Copying Cycle

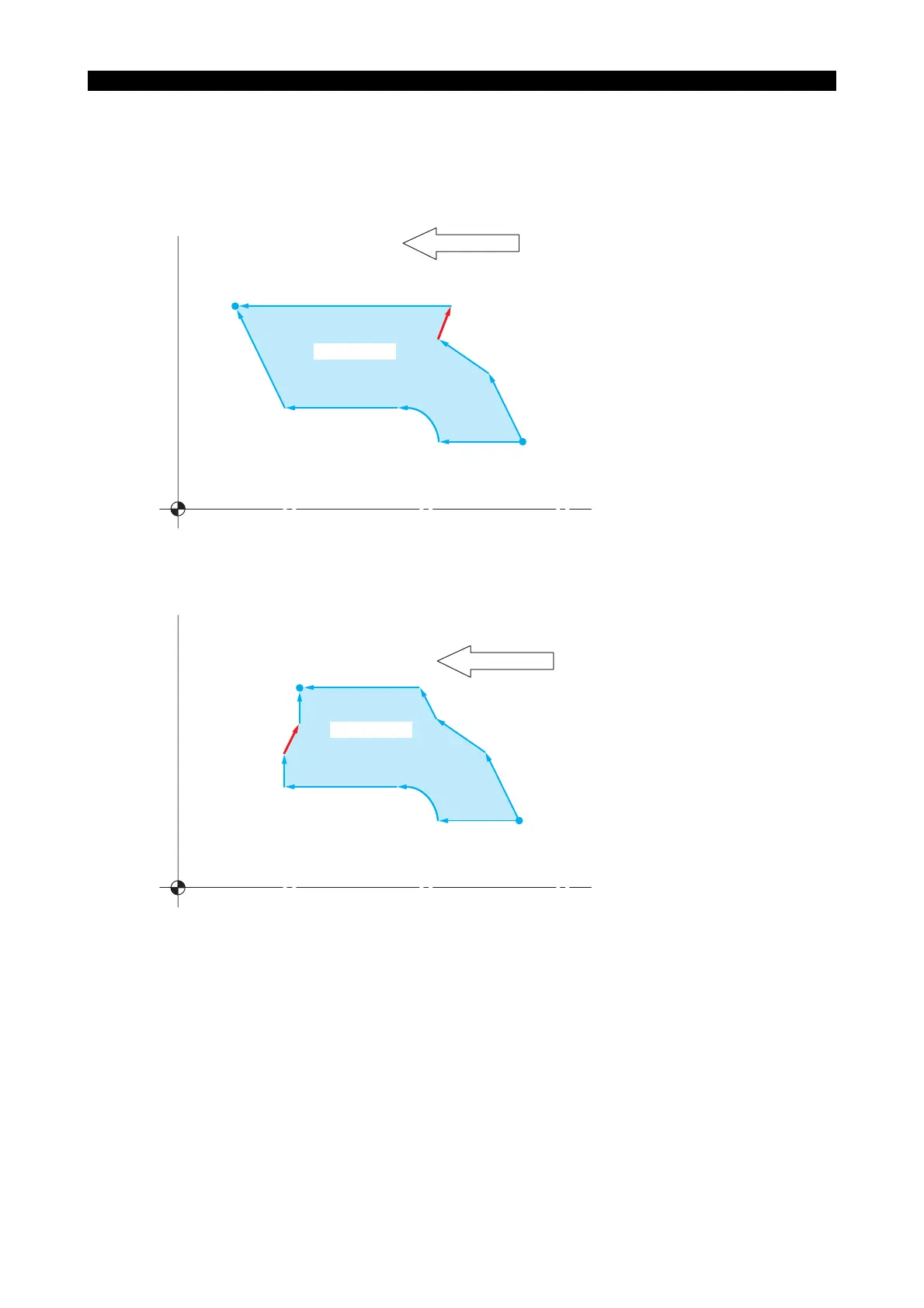

When the direction to define the blank material shape or finish contour is opposite to the cutting
direction, an alarm occurs. In such cases, define the shape again or divide the machining process.
LE33013R0301000300001
Cutting direction
Blank material shape
Cutting area
Finish contour
(Direction used to define blank material
shape is opposite of cutting direction)
Start point
End point
End point
Cutting direction
Blank material shape
Cutting area
Finish contour
Start point
