SECTION 14 OTHER FUNCTIONS
For details of the procedure to establish the chuck barrier, refer to SECTION 4, PARAMETER
SETTING in DATA OPERATION of OPERATION MANUAL.
2-2-2. Establishing a Tailstock Barrier

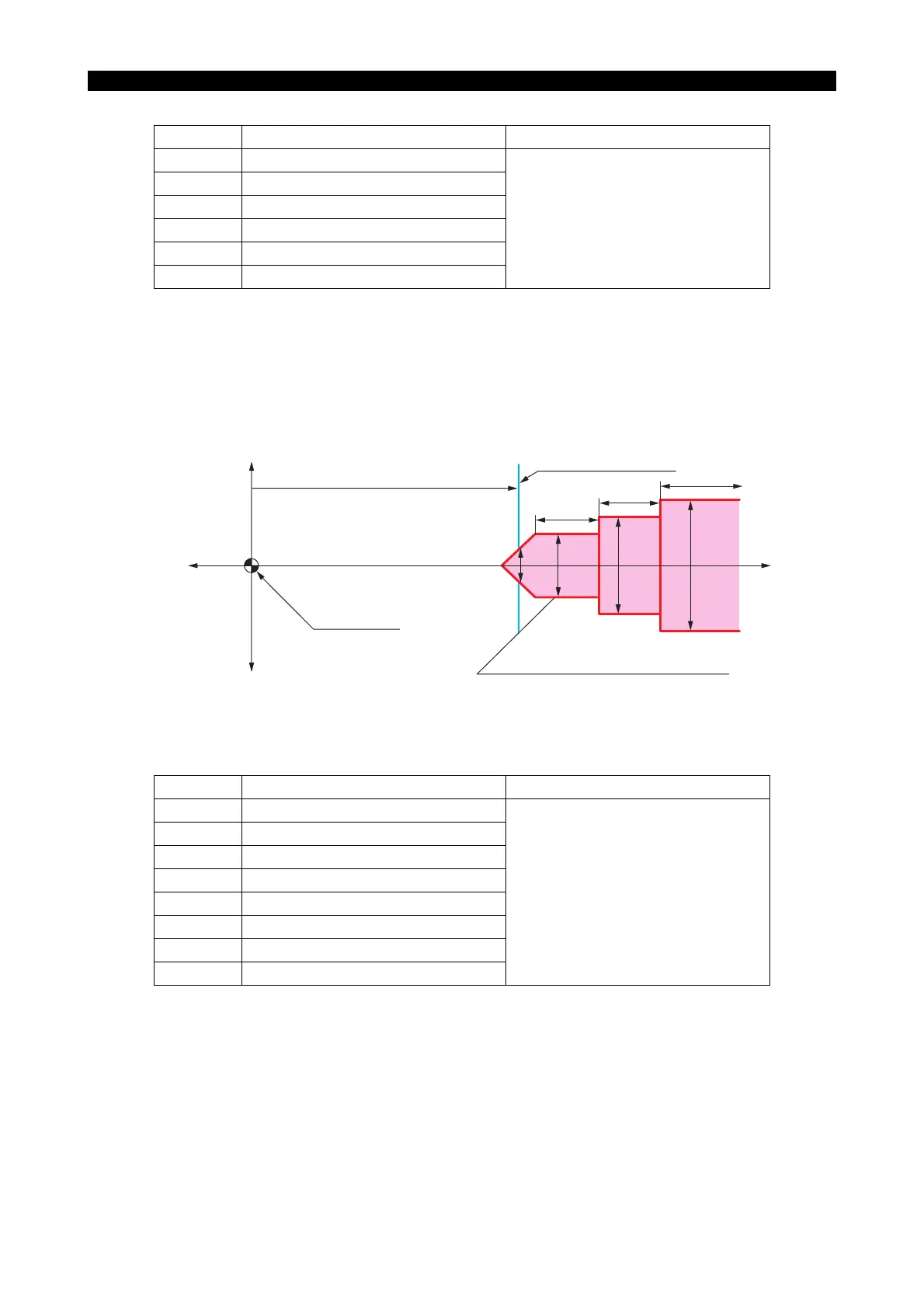

The area used for the tailstock barrier function is indicated in the figure below.
LE33013R0301600040001
Method of setting tailstock barrier
Set required data at the following parameters:
For details of procedure to establish the tailstock barrier, refer to SECTION 4, PARAMETER
SETTING in DATA OPERATION of OPERATION MANUAL.
Symbol Description Method
L Chuck jaw length
Chuck/tailstock axis
D Chuck jaw size
L1 Gripping length of chuck jaw
D1 Chuck jaw gripping face width
CX Chuck gripping diameter
CZ Distance from programming zero
Symbol Description Method
L Tailstock spindle length
Chuck/tailstock axis
D Tailstock spindle diameter
L1 Tailstock spindle length (1)
D1 Tailstock spindle diameter (1)
L2 Tailstock spindle length (2)
D2 Tailstock spindle diameter (2)
D3 Tailstock spindle center diameter
WR Tailstock spindle position (Z)
Program zero
Tailstock barrier area into which
tool entry is inhibited
End face of workpiece
L
L1
L2
D3 D2 D1 D
