SECTION 6 OFFSET FUNCTION
Example program for the path above:
LE33013R0300800100008
It is advantageous to improve the program and eliminate a positioning sequence to a distant
point through commands in the N3 block.
If N2N3N4 were not a sharp angle, such a problem would not occur. To eliminate sharp angles
from the required contour, one possible solution is to interpose a short straight line N3 - N31.
LE33013R0300800100009
In some cases, such a modification is not possible. In these cases, to cut a sharp angle without
positioning the cutting tool at a distant point, follow the steps detailed below.
Example of Improved Program:
LE33013R0300800100010

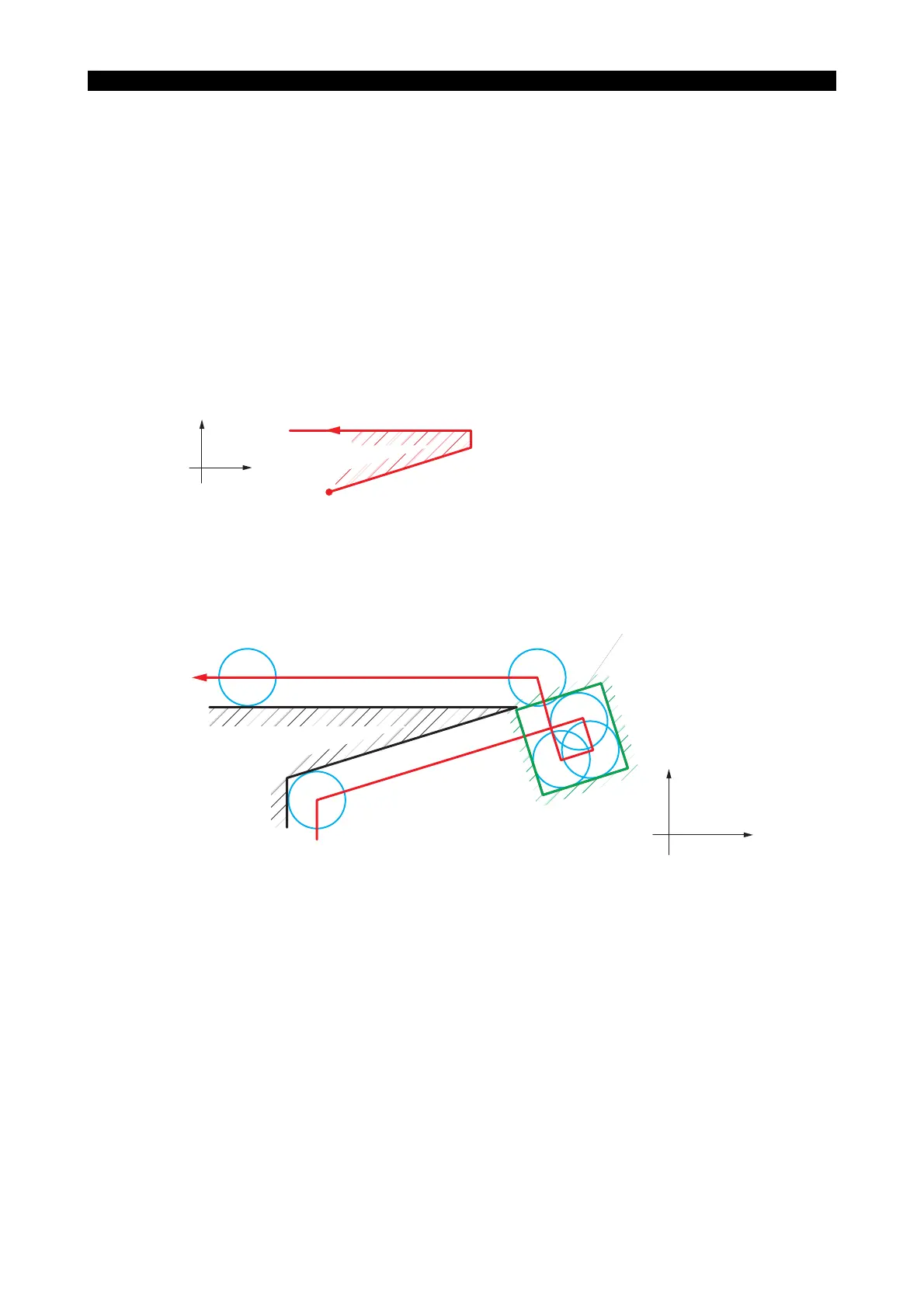

In this improved program, the cutting tool moves along the imaginary square N3N4N5N6. This
permits the operator to estimate the departure of the cutting tool from the programmed contour.
Note that one side of the imaginary square must be longer than twice the nose radius.
N1
N2
N3
G01 Z100 F0.2
X200
X104
....................................
[ > 100 + 4 × (nose R) ]
N4 G01
G00
Z50 S1000
Z300
N0 G42 G00 X100 Z300 S1500 T010101 M03
X +
Z +
N 4
N 2
N 3
N 31
Imaginary shape
X+
Z+
N 7
N 2
N 6
N 3
N 4
N 5
N1
N2
N3
G01 Z100 F0.2
X200.48
N4 X198.48
X104
G00
G01
Z301.24 F1
F0.2
N5 X198 Z300.24
N6 X200 Z300
N7 Z50
Z301
N0 G42 G00 X100 Z300 S1500
S1000
T010101 M03
