5238-E P-78
SECTION 6 OFFSET FUNCTION

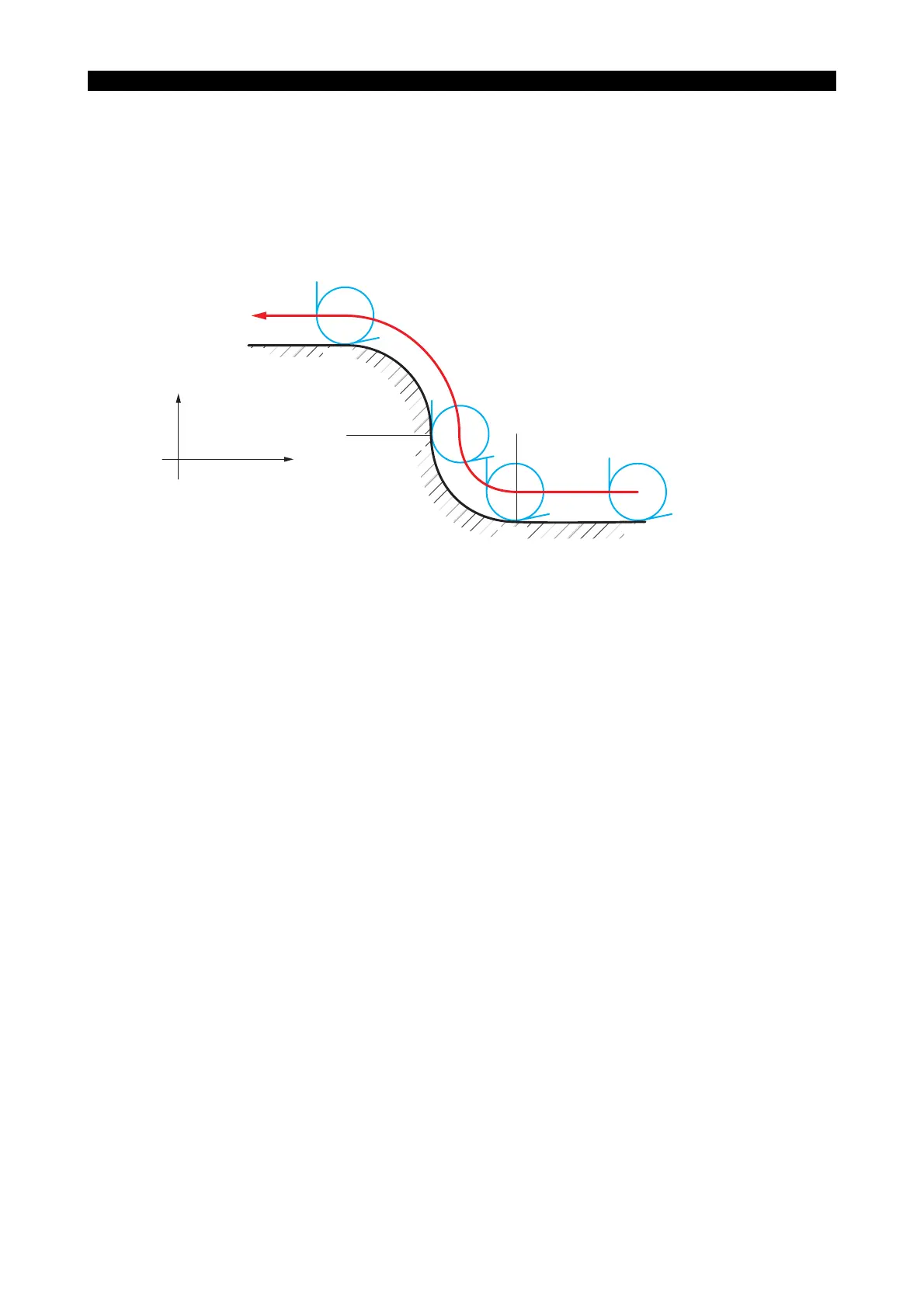

Arc to arc cutting
Arc to arc cutting can be programmed in the same manner as straight line to arc cutting.
The tool path is generated so that the tool nose R is brought into contact with each arc or its
extension.
If the tool path becomes discontinuous in the process of path calculation due to an error, the
machine stops with an alarm displayed on the screen.
Other motions of the cutting tool are as explained in (2), "Straight line to arc cutting".
LE33013R0300800100021
N2
N3
N4
Z100 F0.2
I20
K − 20Z40
Z20
N1 G42
G02
G03
N5
G01
G01 X100
X140
X180
Z80
Z60
S1000 T010101 M04
X+
Z+
N4N5
N3
N2
N1
