2KR/2KS
1-2-12

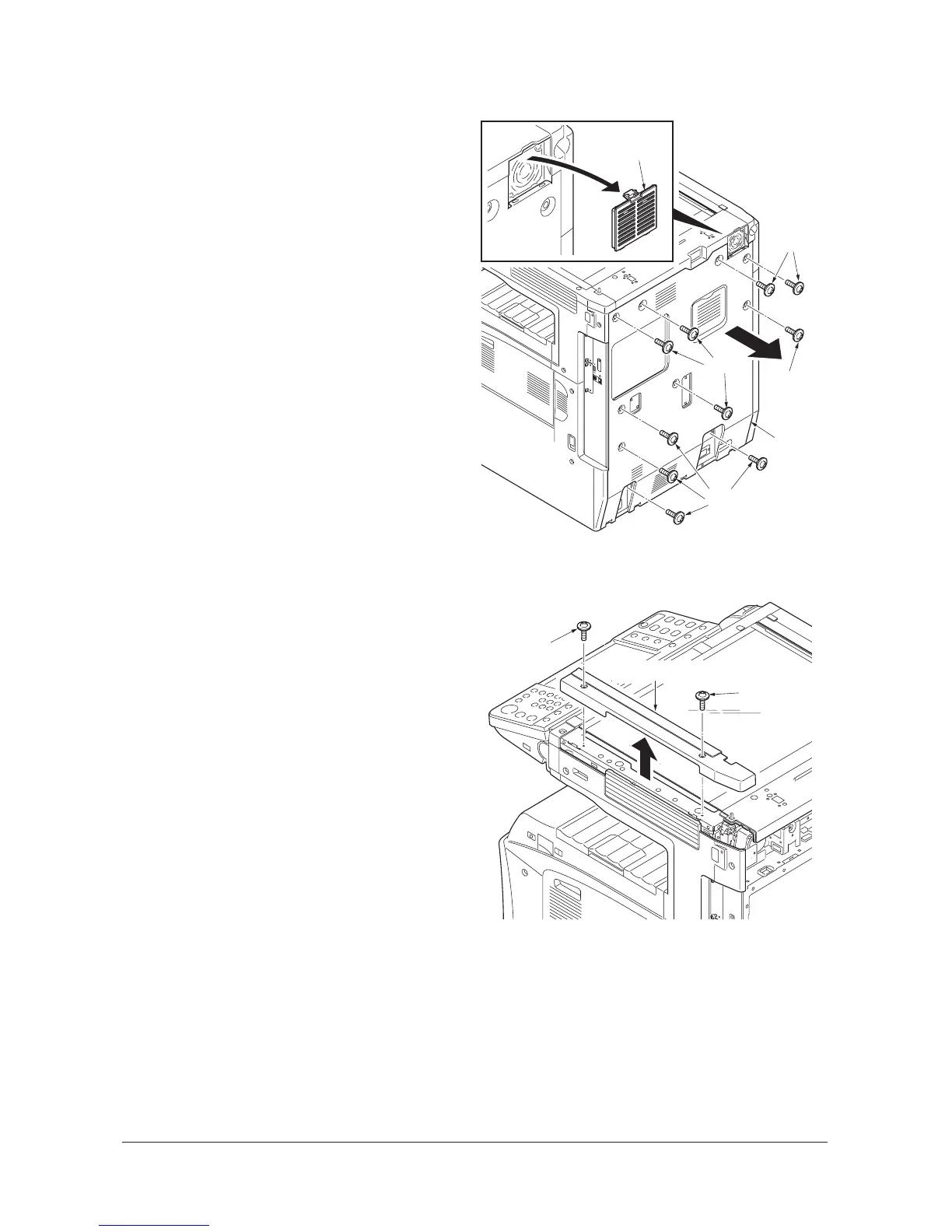

5. Remove the ISU filter cover.
6. Remove ten screws and then remove the
rear cover.
Figure 1-2-15
7. Remove two screws and then remove the
scanner right cover.
Figure 1-2-16
B1
A2
DP
OPT1
Rear cove
r
Screws
ISU filter cover
Screws
Screws
Screw
DP
Screw
Screw
Scanner right cover
Service Manual Y111960-2
