8. Remove three screws and then remove the
right upper cover.
9. Cut out the aperture plate on the right upper
cover using nippers.

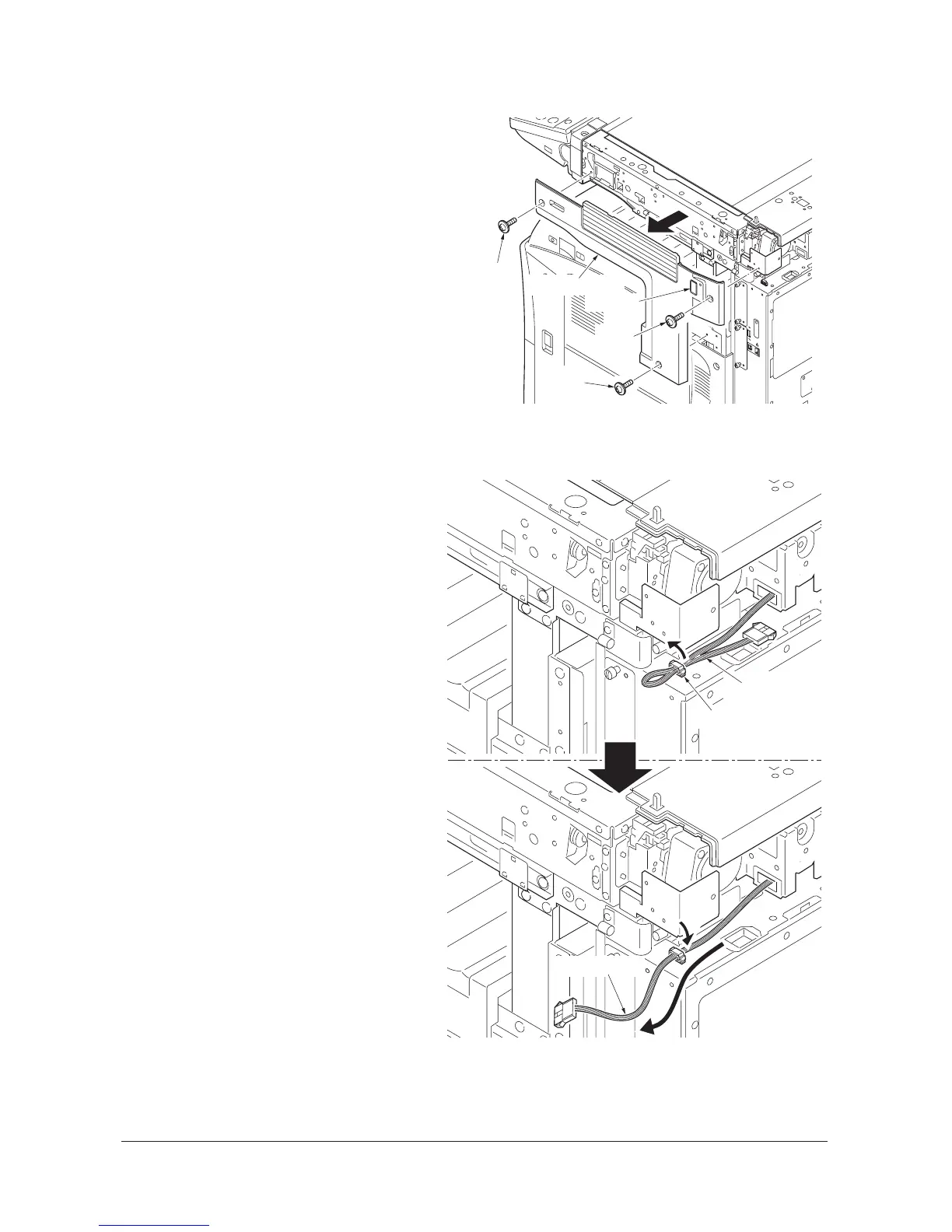

Figure 1-2-17
10. Release the wire saddle and then stretch
the key counter wire.
11. Close the wire saddle.
Figure 1-2-18
B1
A2
DP
OPT1
Right upper cover
Aperture
Screw
Screw
Screw
D
Key counter wire
Wire saddle
Key counter wire
