Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Instrument Description 23
Olympus cannot guarantee any level of ingress protection performance once the
instrument seals have been manipulated. You must use sound judgment and take
proper precautions before exposing the instrument to harsh environments.
To maintain the original level of ingress protection, you are responsible for the proper
care of all routinely exposed membrane seals. Additionally, you are responsible for
returning the instrument to an authorized Olympus service center each year to ensure
that the instrument seals are properly maintained.
1.3 Instrument Hardware Components
The 38DL PLUS front panel features a color display and a keypad. The instrument
comes with a hand strap. A protective rubber boot includes a dust flap seal for the DC
power and serial communication connectors, strap rings at the four corners, and a
stand at the back (see Figure 1-2 on page 23).

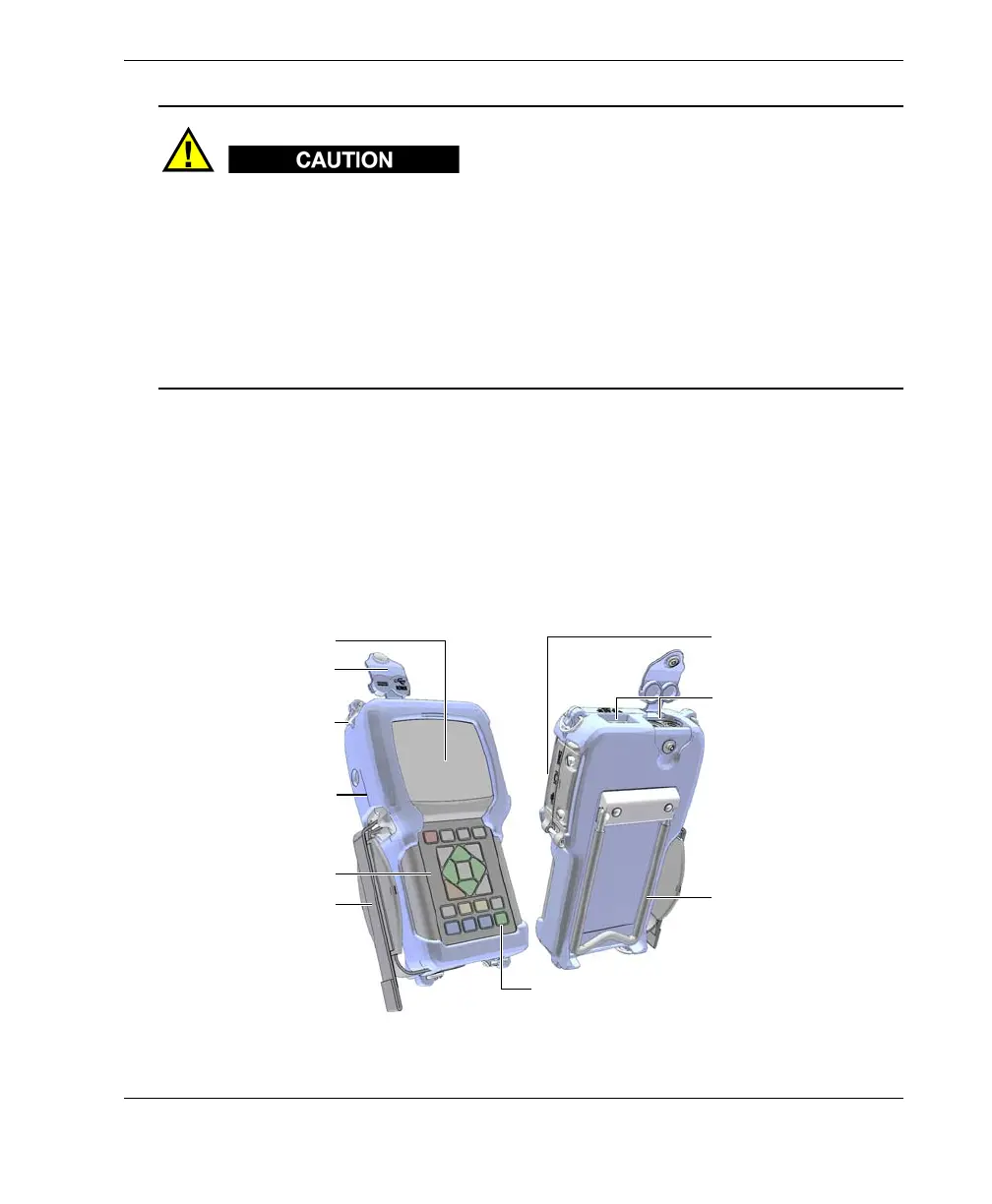

Figure 1‑2 The 38DL PLUS hardware components
CAUTION
Connector rubber seal
Protective rubber boot
(shown in blue)
Stand
Hand strap
Strap rings
(at the four corners)
Color display
Keypad
I/O door protecting more
connectors
Connectors
[ON/OFF] key

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
