Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Chapter 2 36
2.3.3 Replacing the Battery
The battery is located in a compartment that is accessible from the back of the
38DL PLUS (see Figure 2-4 on page 36).

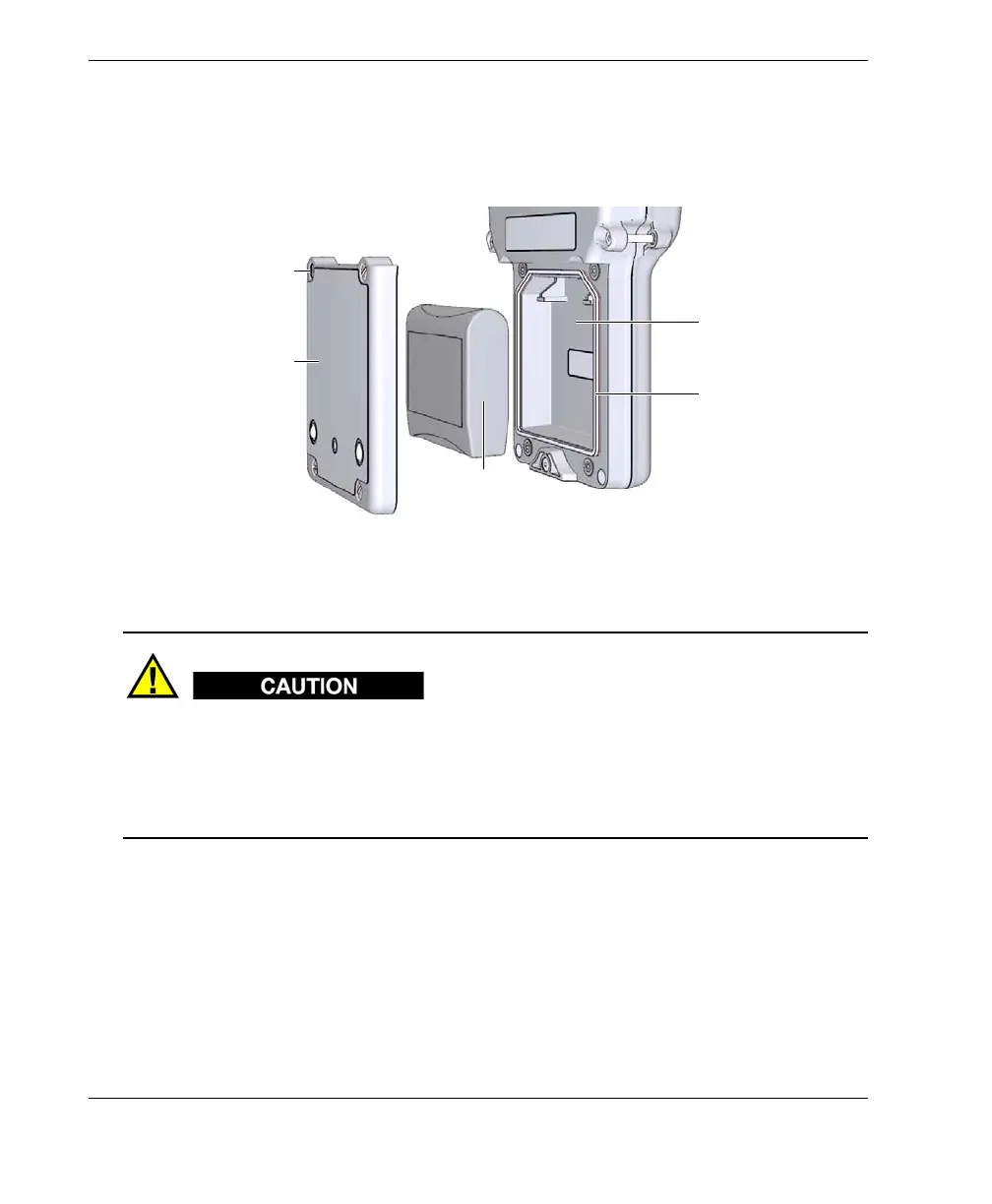

Figure 2‑4 Opening the battery compartment
Do not attempt to replace the battery while the instrument is ON and/or connected to
charger/adaptor. Dispose of used battery promptly. Keep away from children. The
battery used in this device may present a risk of fire or chemical burn if mishandled.
Do not disassemble, heat above 50 °C, or incinerate the battery. Replace the battery
only with an Olympus battery (P/N: 38-BAT [U8760054]).
To replace the battery
1. Disconnect the instrument from the charger/adaptor.
2. Ensure that the 38DL PLUS power is off.
3. Disconnect any other cable connected to the 38DL PLUS.
4. Remove the hand strap.
5. Remove the protective rubber boot.
Battery compartment
door
Screws (4)
Battery compartment
Battery compartment
gasket
Battery (P/N: 38-BAT
[U8760054])
CAUTION

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
