Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Software User Interface Elements 39
3. Software User Interface Elements
The following sections describe the main elements of the 38DL PLUS software screens
and menus.
3.1 Measurement Screen
The 38DL PLUS starts with the measurement screen where you can see the ultrasonic
echo on the waveform display and read the measured thickness value (see Figure 3-1
on page 39). The measurement screen is the main screen of the 38DL PLUS software.
From anywhere in the 38DL PLUS software, simply press [MEAS] to return to the
measurement screen. The power indicator is always present on the right side of the
38DL PLUS screen (see “Using Battery Power” on page 33 for details).

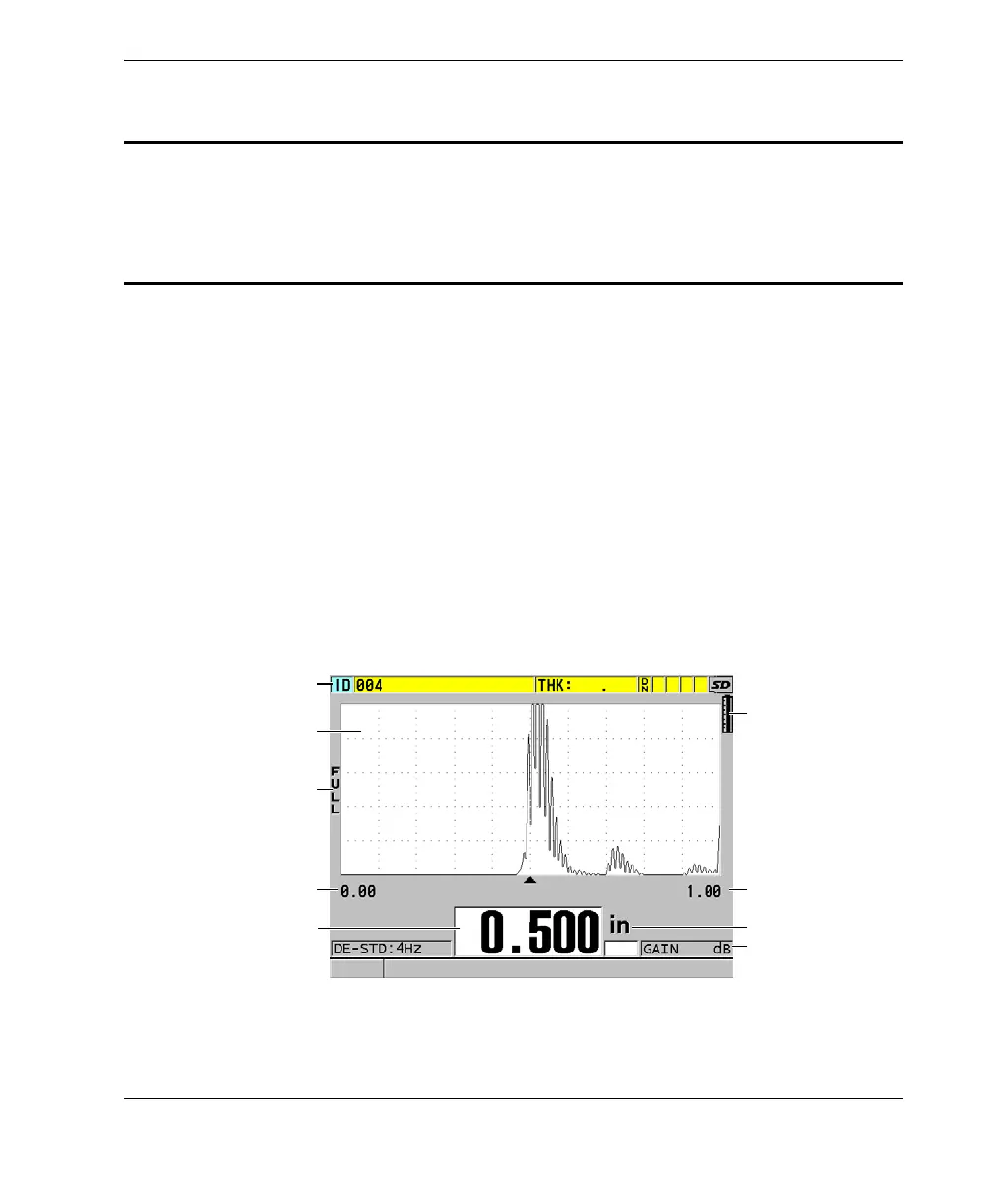

Figure 3‑1 The main elements of the measurement screen
Rectification indicator
Delay
Thickness value
Power indicator
Gain value
Range
Waveform display
(A-scan)
ID bar
Measurement units

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
