Powering the 38DL PLUS 33

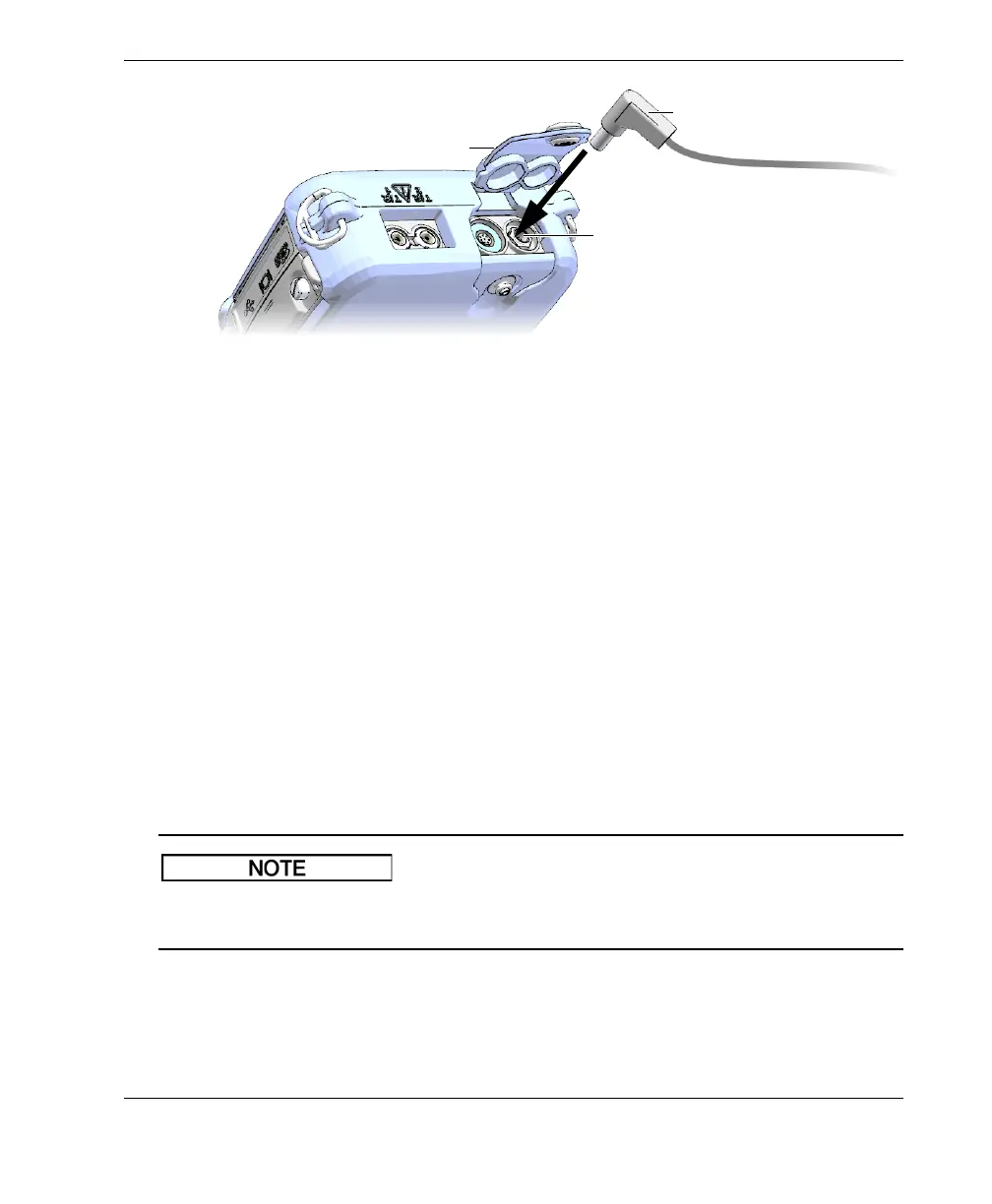

Figure 2‑3 Connecting the DC power plug
3. Connect the DC power plug from the charger/adaptor to the DC adaptor
connector (see Figure 2-3 on page 33).
4. Press [ON/OFF] to turn on the 38DL PLUS.
2.3 Using Battery Power
The 38DL PLUS comes with a rechargeable lithium-ion (Li-ion) battery (P/N: 38-BAT
[U8760054]). The 38DL PLUS automatically recharges the 38-BAT battery when you
connect the instrument to the AC power.
You can also operate the 38DL PLUS using four AA-size Alkaline or nickel metal
hydride (NiMH) rechargeable batteries using the AA battery holder (P/N: 38DLP/AA
[U8780290]). The 38DL PLUS does not recharge NiMH batteries. You must recharge
AA batteries with an external battery charger (not included).
The 38DL PLUS battery is not fully charged when shipped. You must fully charge the
battery before operating the instrument from the battery power.
DC power plug
Connector rubber seal
DC adaptor connector
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
