Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Chapter 1 24
1.4 Connectors

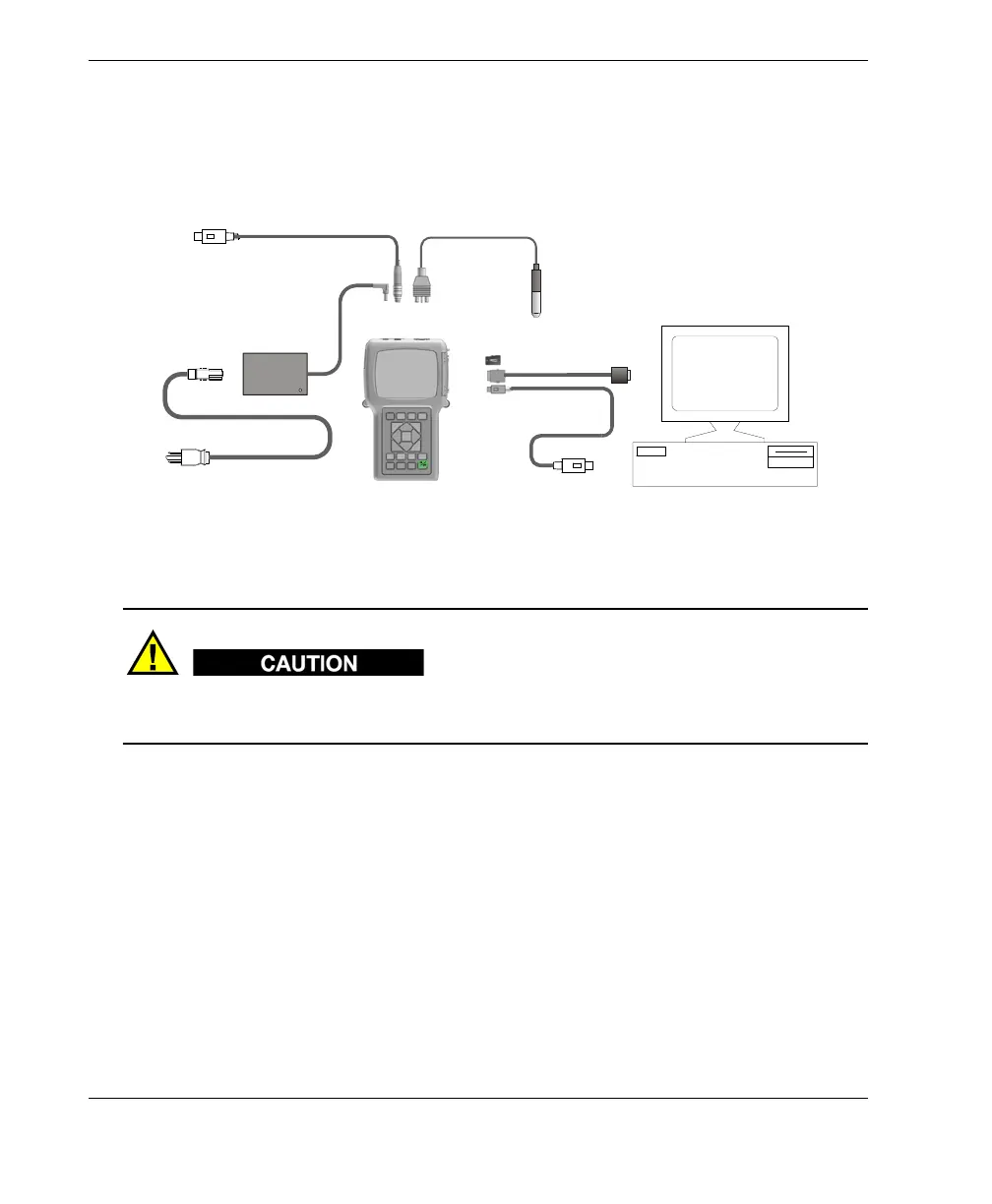

Figure 1-3 on page 24 illustrates the possible connections of the 38DL PLUS with
external devices.
Figure 1‑3 The 38DL PLUS connections
To avoid the risk of injuries or equipment damage, use only the AC power cord
supplied with the 38DL PLUS. Do not use this AC power cord with other products.
The DC power, USB/RS-232 communication, and Transmit/Receive probe connectors
are located on the top end of the 38DL PLUS (see Figure 1-4 on page 25).
USB/RS-232
USB
VGA
Transducer
AC power cord
EP-MCA
microSD
CAUTION

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
