Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Chapter 4 50

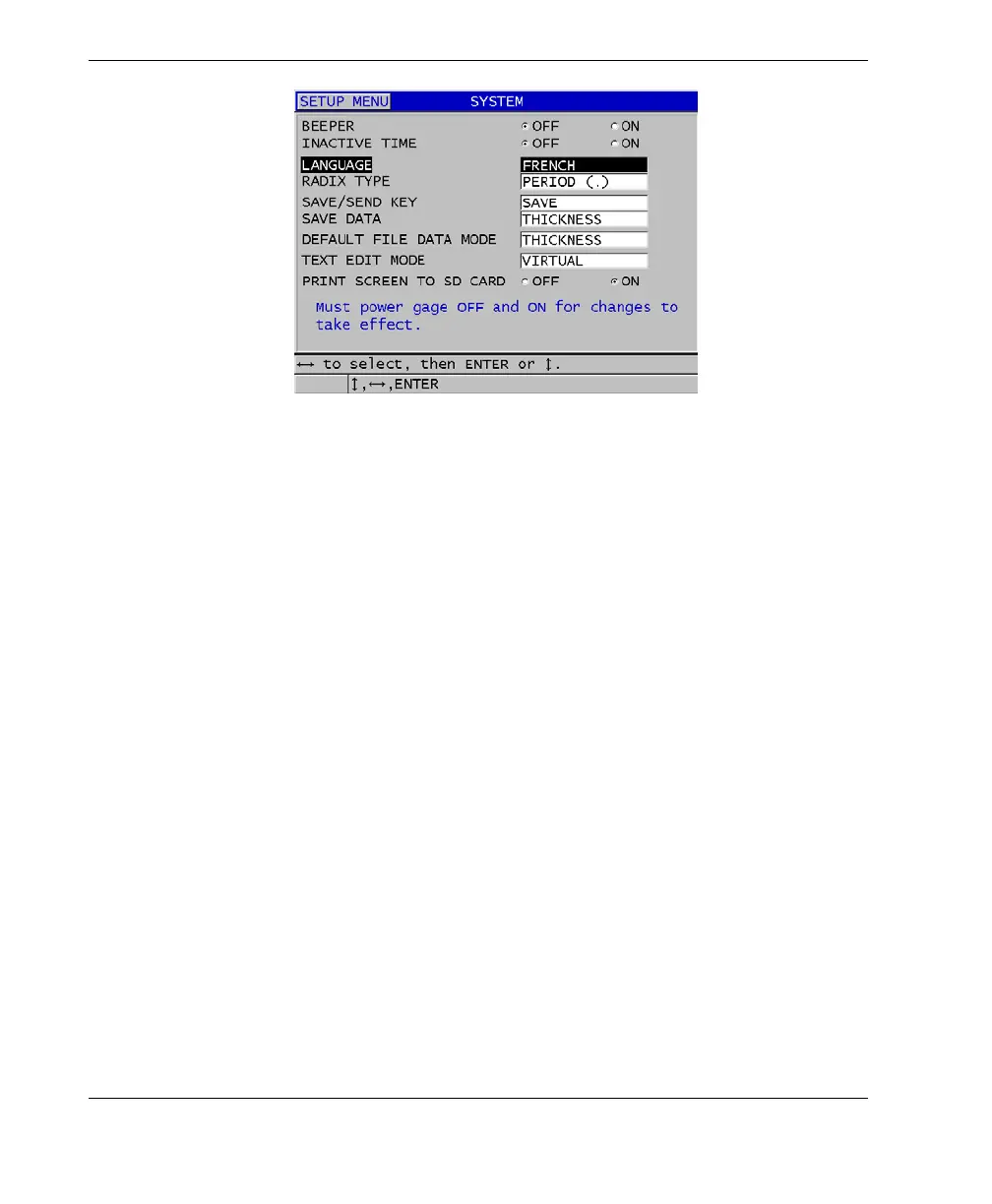

Figure 4‑1 Selecting the user interface language
4. Press [MEAS] to return to the measurement screen.
5. Turn off the 38DL PLUS, and then turn it back on to activate the language change.
4.2 Selecting the Measurement Units
You can set the 38DL PLUS to show thickness measurements in inches or millimeters.
To set the measurement units
1. Press [SETUP MENU].
2. In the menu, select MEAS.
3. In the MEAS screen, set UNIT TYPE to INCH or MILLIMETER.
4. Press [MEAS] to return to the measurement screen.
4.3 Setting the Clock
The 38DL PLUS has a built-in date and time clock. You can set the date and the time
and select their format. The 38DL PLUS saves all measurements value with their
acquisition date.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
