Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Instrument Description 25

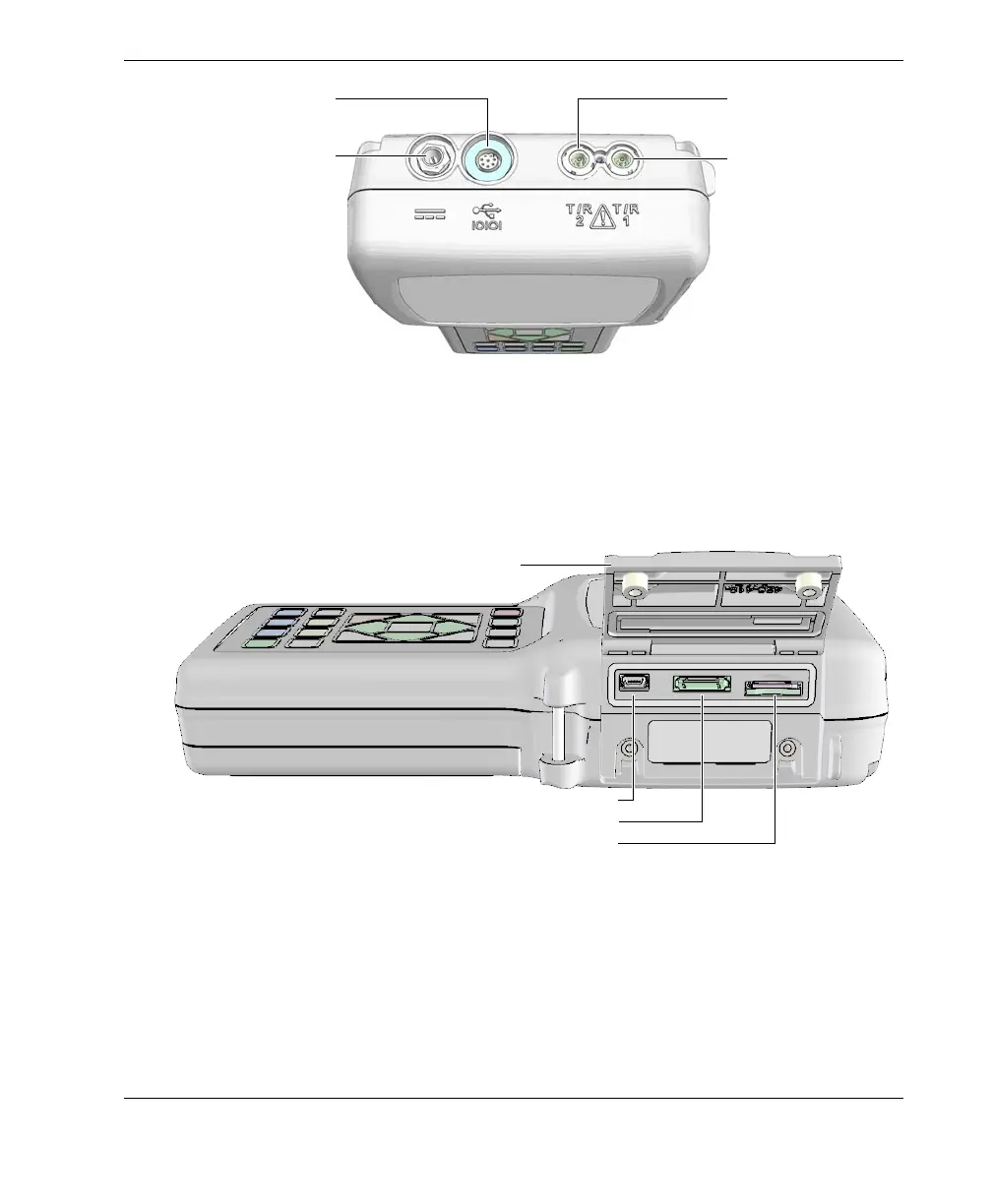

Figure 1‑4 The top end connectors
The USB client connector, the VGA output connector, and the external microSD
memory card slot are located on the right side of the instrument, hidden behind the
I/O door (see Figure 1-5 on page 25).
Figure 1‑5 The connectors behind the I/O door
DC power connector
USB/RS-232 serial
communication connector
Transmit/Receive
transducer connector 2
Transmit/Receive
transducer connector 1
USB client connector
VGA output connector
microSD external memory card slot
I/O door

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
