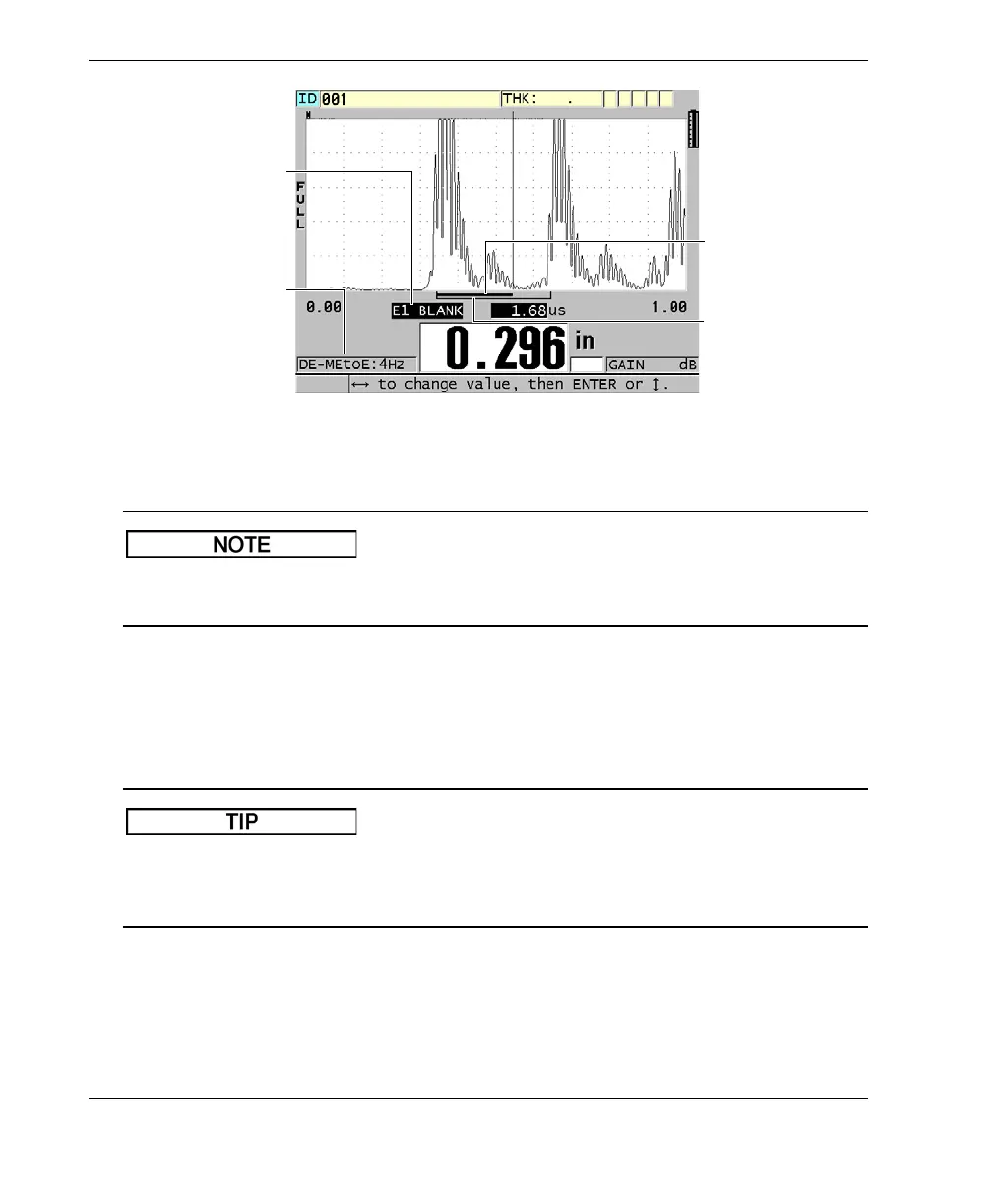

Figure 5‑14 Measuring with the manual echo‑to‑echo detection mode
In severe corrosion situations where valid multiple echoes are not present, you must
use the standard mode to be able to measure thicknesses.
You can use dual element transducers in all three modes. You can use all
measurement, display, and datalogger functions with the echo-to-echo modes. The
internal datalogger recognizes and saves all necessary echo-to-echo information to
upload and download thickness, waveform, and setup data.
You do not have to switch between echo detection modes when measuring both
coated and uncoated areas because you can measure uncoated wall thicknesses using
an echo-to-echo mode.
To change the echo detection mode
1. Press [2nd F], [ZOOM] (E‑TO‑E).
Dual element (DE)
manual echo-to-echo
(MEtoE) detection mode
E1 blank bar
Echo-to-echo detection
bar
[WAVE ADJ] parameter
NOTE
TIP

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
