Olympus 38DL PLUS Basic Operation Manual

DMTA-10009-01EN [U8778346], Rev. D, November 2016
Chapter 2 32
2.2 Using the AC Power
You can operate the 38DL PLUS with the AC power using the charger/adaptor (P/N:
EP-MCA [U8767042]). The EP-MCA has a universal AC power input that operates
with any line voltage from 100 VAC to 120 VAC or 200 VAC to 240 VAC and with
50 Hz to 60 Hz line frequency.
To use AC power
1. Connect the AC power cord to the charger/adaptor (P/N: EP-MCA [U8767042]),
and to an appropriate power outlet (see Figure 2-2 on page 32).
To avoid the risk of injuries or equipment damage, use only the AC power cord
supplied with the 38DL PLUS. Do not use this AC power cord with other products.

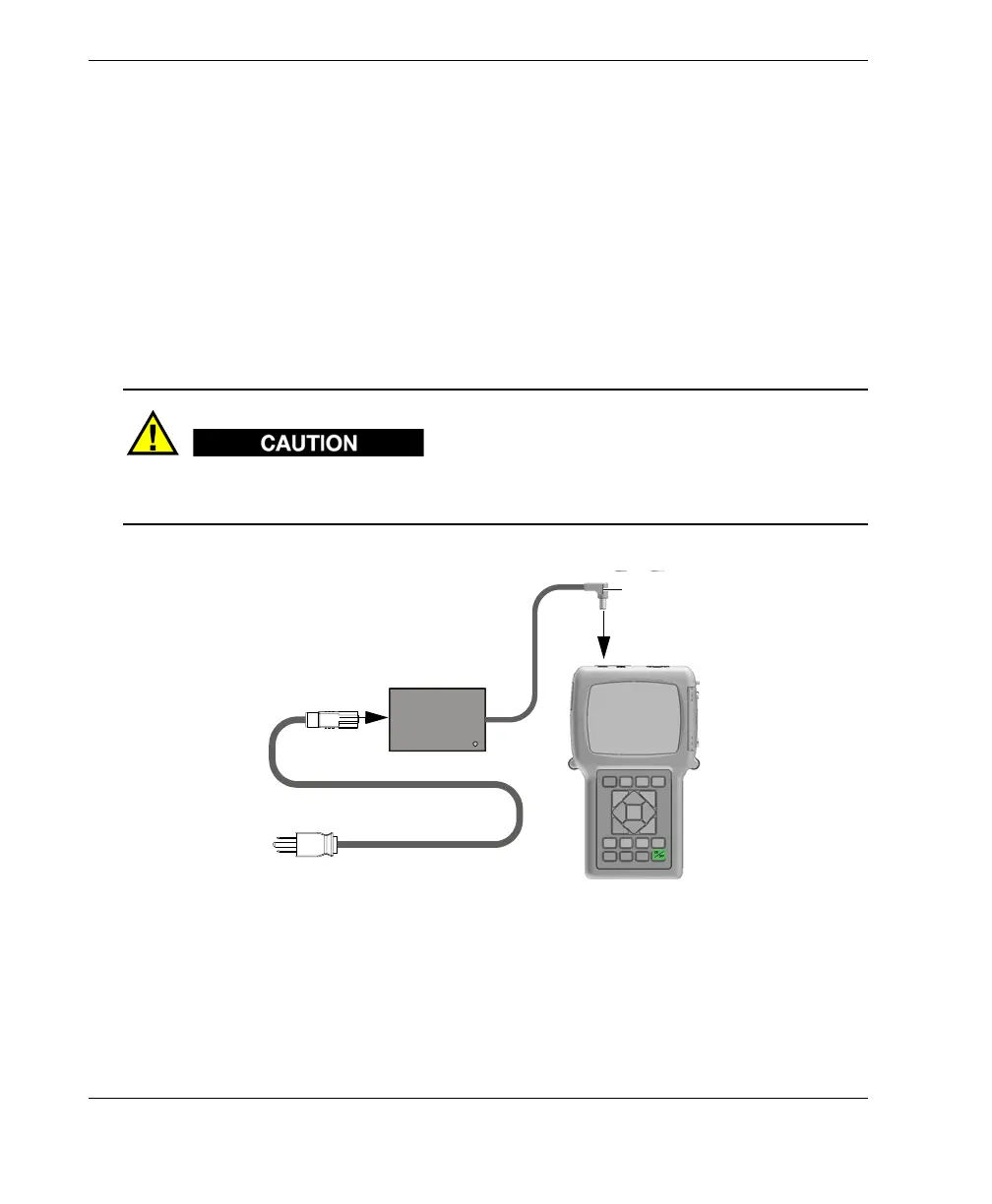

Figure 2‑2 Connecting the charger/adaptor
2. On the 38DL PLUS, lift the rubber seal covering the DC adaptor connector on top
of the 38DL PLUS (see Figure 2-3 on page 33).
CAUTION
EP-MCA
DC power
plug
AC power cord
To power outlet

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
