Powering the 38DL PLUS 37
6. At the back of the instrument, unscrew the four screws of the battery
compartment cover (see Figure 2-4 on page 36).
7. Remove the battery compartment cover.
8. Remove the battery and carefully disconnect the battery connector.
9. Connect the new battery in the battery compartment.
10. Ensure that the gasket of the battery compartment cover is clean and in good
condition.
11. Reinstall the battery compartment cover at the back of the instrument, and then
tighten the four screws.
12. Reinstall the protective rubber boot and the hand strap.
13. Press [ON/OFF] to turn on the 38DL PLUS.
14. To answer the question appearing at the bottom of the screen (see Figure 2-5 on
page 37):
 Select Li‑ion when using a 38-BAT battery.
OR
Select NiMH or Alkaline when using four NiMH AA batteries or four
Alkaline AA batteries with the AA battery holder.

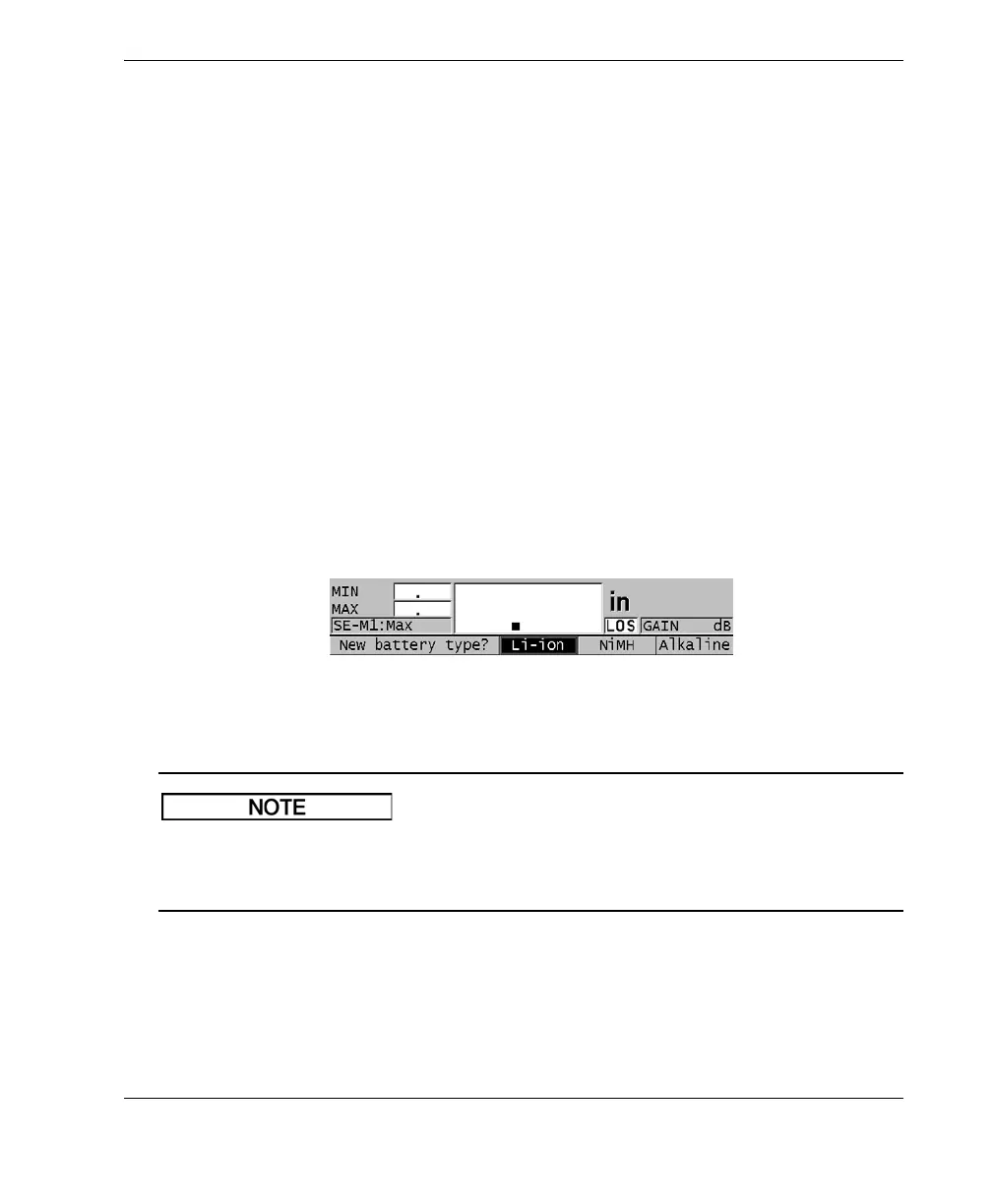

Figure 2‑5 Selecting the new battery type
When replacing the rechargeable 38-BAT battery, fully charge the battery to ensure
the accuracy of the estimated remaining battery charge shown by the power indicator
(see “Power Indicator” on page 31).
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
