1.5 Keypad Functions
The 38DL PLUS comes either with the English, international, Chinese, or Japanese
keypad (see Figure 1-6 on page 26). The functions are the same for all keypads. On the
international keypad, the text labels on many keys are replaced by pictograms. In this
document, keypad keys are referred to using the English label in bold and within
brackets (ex.: [MEAS]).

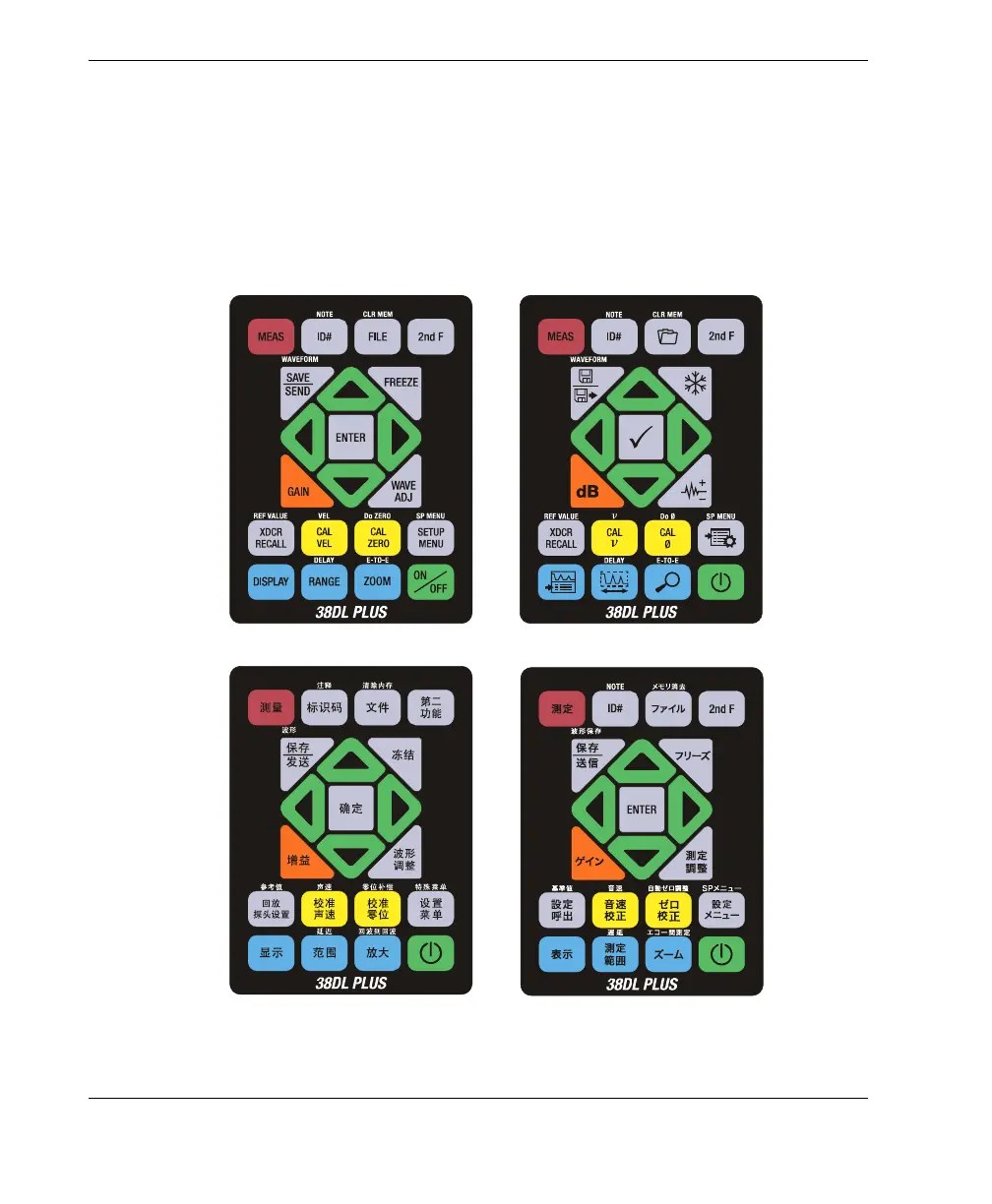

Figure 1‑6 The 38DL PLUS keypads
English keypad International keypad
Chinese keypad
Japanese keypad
