Chapter 9 Function setup
EVIS EXERA II VIDEO SYSTEM CENTER CV-180
Monitor
This operation sets the monitor type, video signal, aspect ratio of the HDTV
(horizontal and vertical ratio of the display area) and the terminal to be activated
by the monitor for video output.

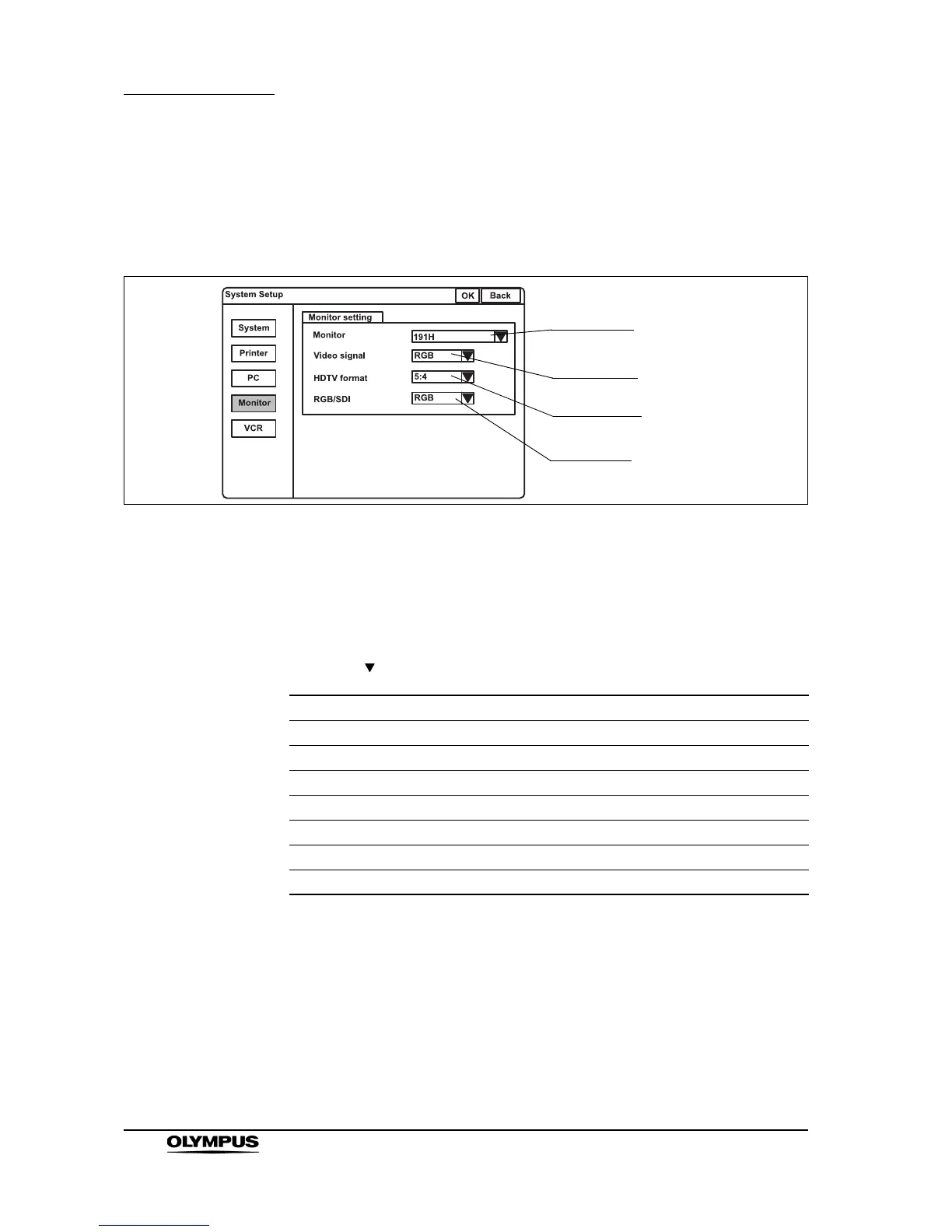

Figure 9.9
Click “Monitor Setting” on the system setup menu. The setting items appear on
the right side of the window (see Figure 9.9).
Monitor type
1. Click “ ” of “Monitor”. The monitor types appear in the pull-down menu.
2. Click the desired monitor type. The selected monitor type is displayed.
Setting value Video signal Applicable monitor model
141/201 SDTV OEV141, OEV201
142/143/202/203 SDTV OEV142, OEV143, OEV202, OEV203
181H HDTV OEV181H
191H HDTV OEV191H
191 SDTV OEV191
Remote OFF (HD) HDTV
Remote OFF (SD) SDTV
Table 9.13
To Next Page
