Chapter 4 Operation
EVIS EXERA II VIDEO SYSTEM CENTER CV-180
4.2 Connection of an endoscope
Connect the endoscope to the video system center and the light source. The
connection may require special cables. Refer to the instruction manuals of
ancillary equipment for details on the cables to be used.

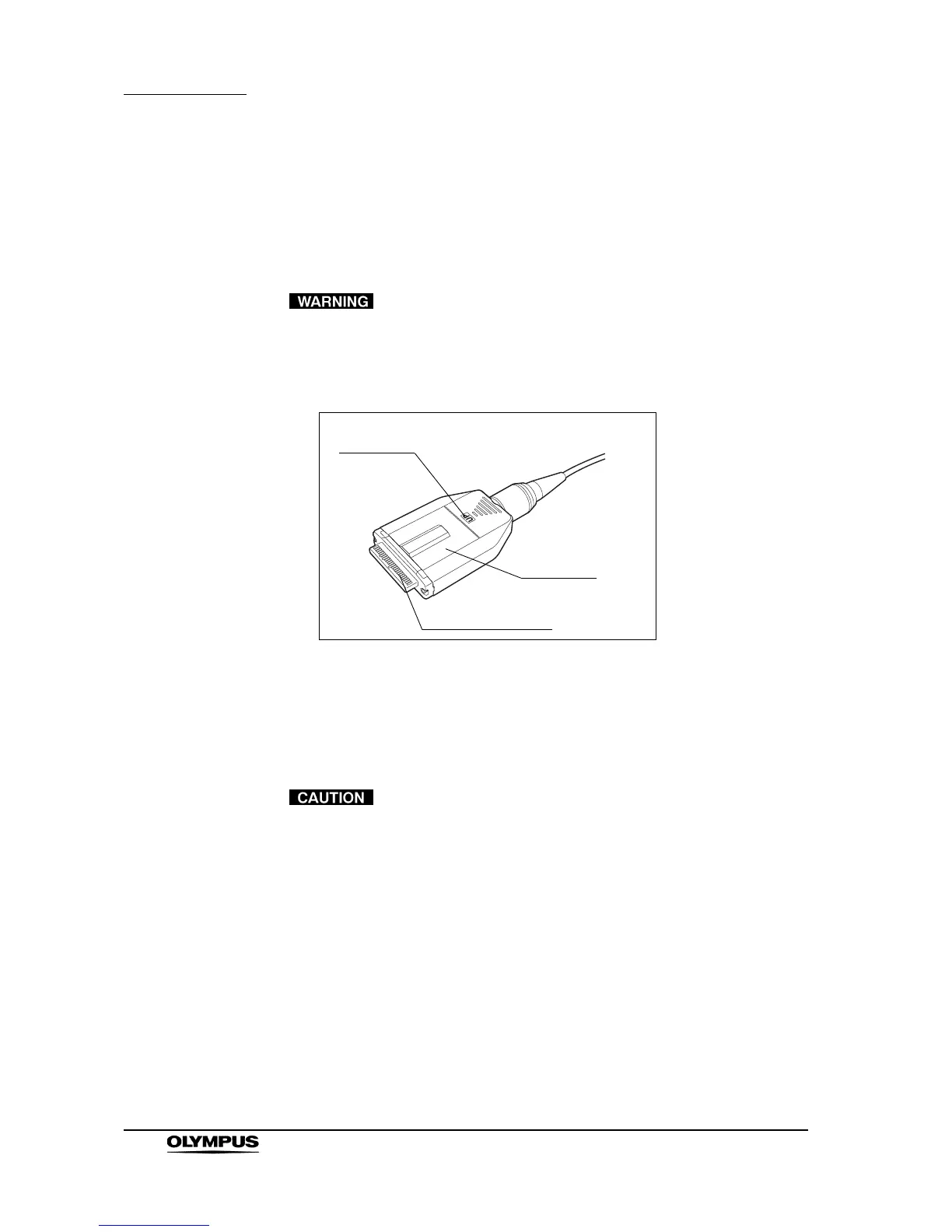

• Make sure that the video plug and its electrical contacts are
completely dry before connecting the plug to the video
system center (see Figure 4.2). Wet equipment could cause
the image to flicker or disappear.
Figure 4.2
• Do not apply excessive force to the camera cable of the
camera head by bending, stretching or crushing it. Also do
not pull a bundle of camera cables, as this may cause
internal wire disconnection.
• Do not connect or disconnect the endoscope connector while
this video system center is turned ON. Connecting or
disconnecting the endoscope while this video system center
is ON may destroy the CCD. Turn the video system center
OFF before connecting or disconnecting the endoscope.
• Connect the video plug all the way into the socket. The
improper connection may increase image noise or may
cause disappearance of the endoscopic image during
operation
• Be sure to refer to the instruction manuals of the ancillary
equipment including the endoscope and camera cable.
