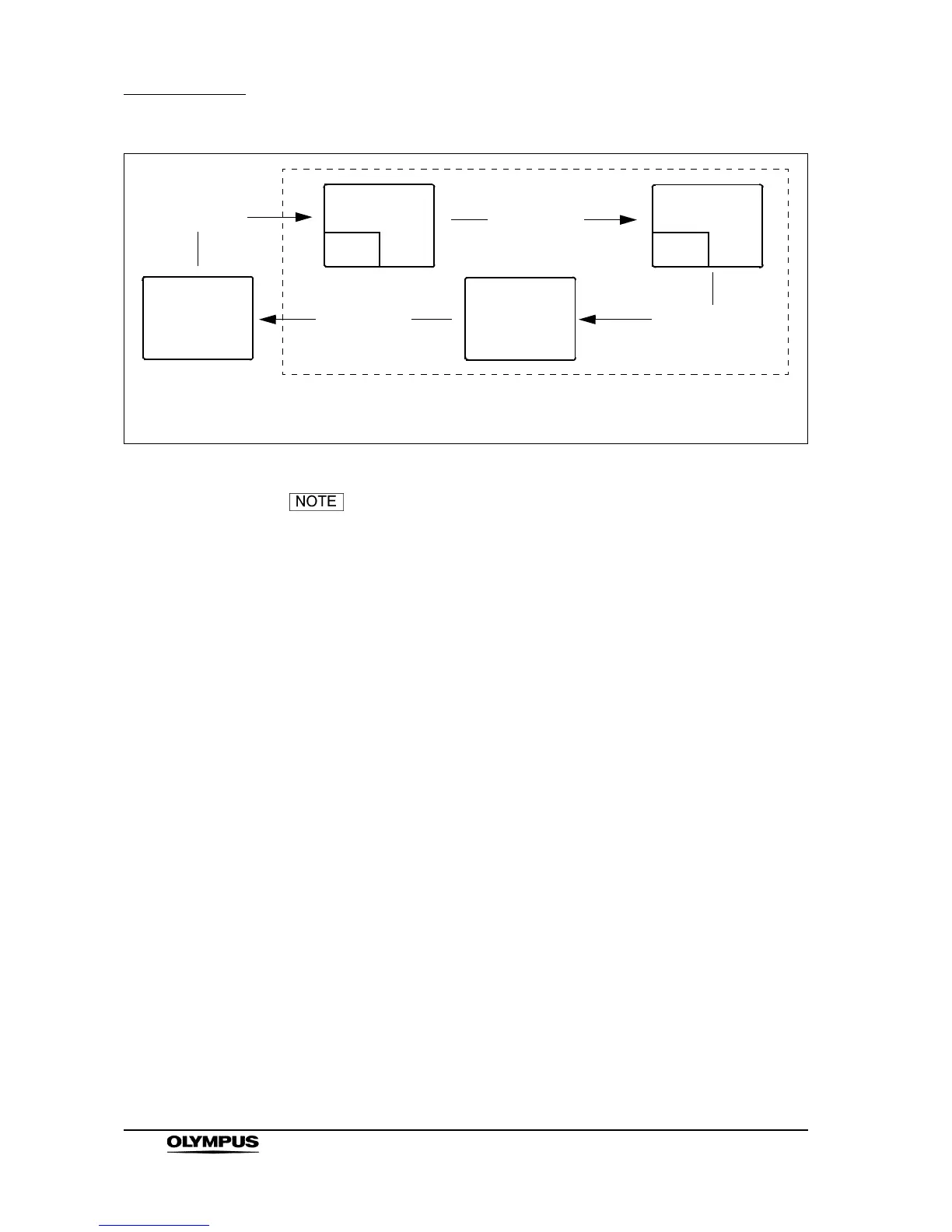

Figure 5.5
• All patient data disappears in the PinP display. Press the “F1”
key to display the data.
• The index image does not appear in the PinP display (see
“Release index time” on page 243).
• It takes a few seconds before the PinP display appears
depending on the devices connected.
• The PinP function is also controlled from the scope switches
and/or foot switches. For how to set up the scope switches
and foot switches. See “Remote switch and foot switch
(EXERA and VISERA)” on page 219.
• The output signal is just SDTV in PinP display.
• Before activating the PinP function make sure that an
endoscope is connected to this instrument. If no endoscope
is connected it might not be possible to use the PinP function
and image recording of an external device may not work.
