Olympus EVIS X1 - OEV321 UH Connection and Settings

27

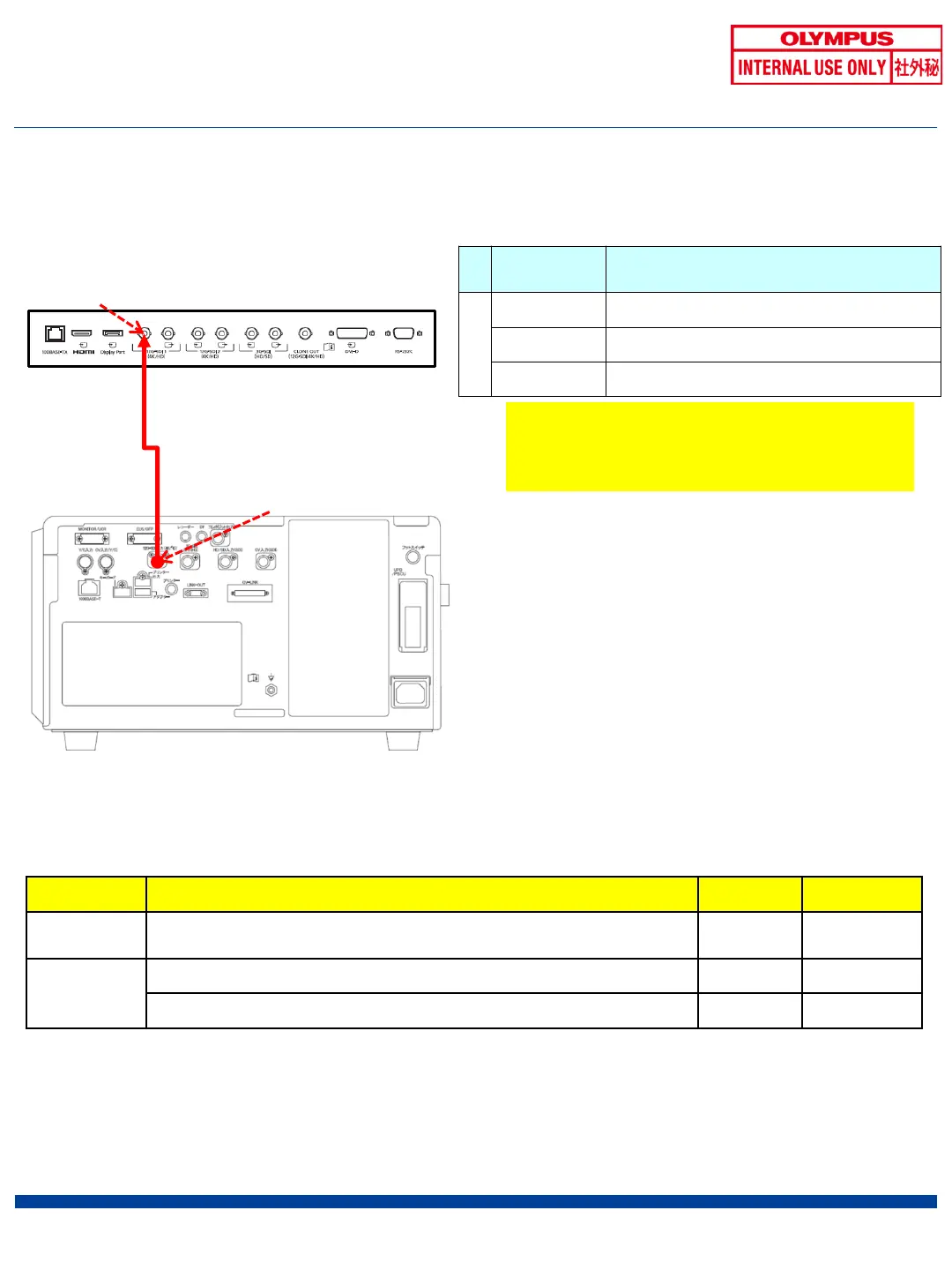

◆ OEV321UH
OEV321UH
CV-1500
<List of Cables>
1
Setting model Step Defalut After change
CV-1500
Setting > System setup > Video output > 12G-SDI OUT
(4K/HD) signal
HD:1080p 4K
OEV321UH
MENU > Preset > Load Preset B/C B/C
MENU > Input/Output Configuration > Port A Input Select 12G-SDI 1 12G-SDI 1
! Caution!
The 12G-SDI cable is required to output
4K image.
12G-SDI1 IN
12G-SDI output
[SETTING
INFORMATION]
#
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
