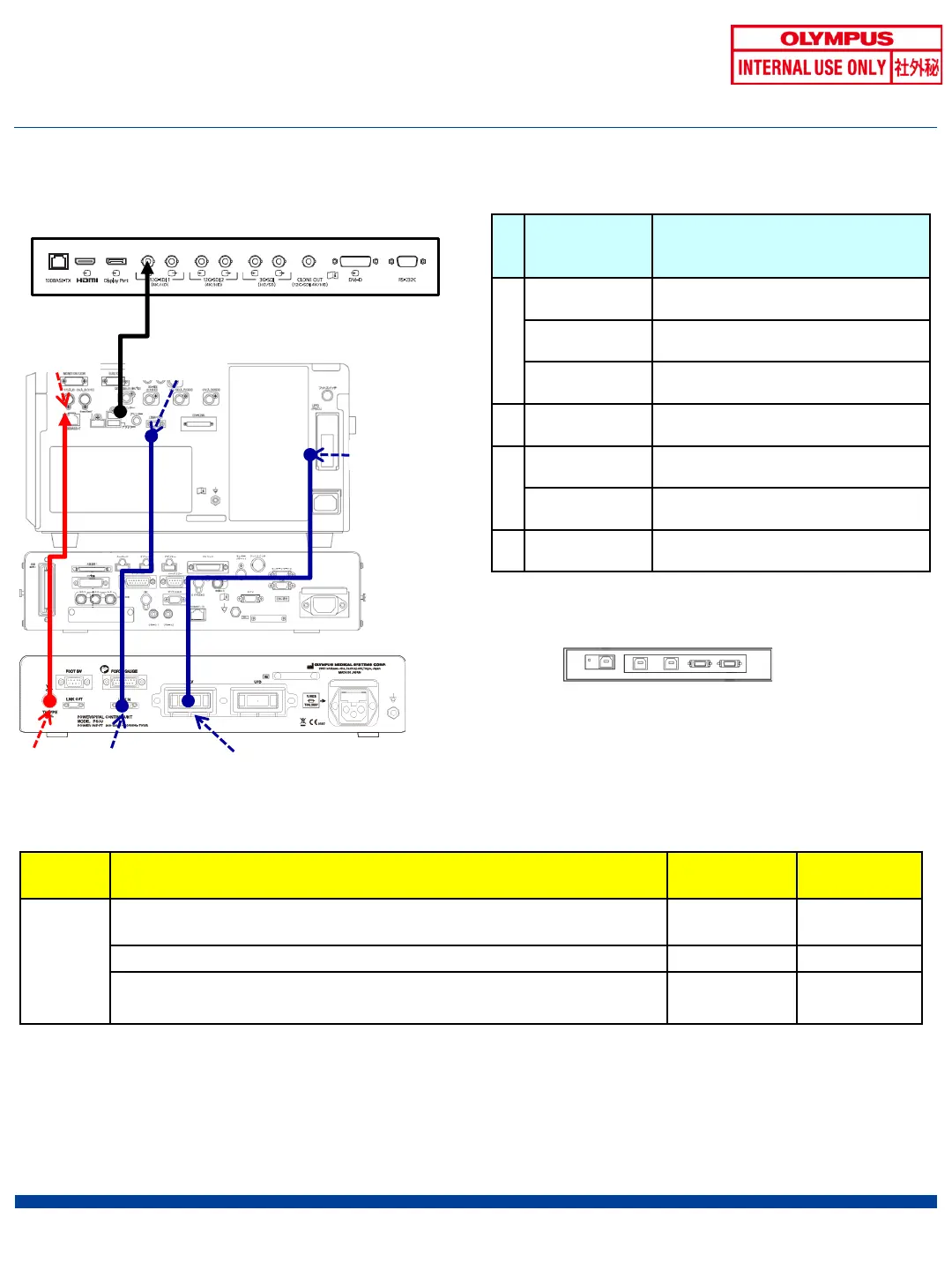

Olympus EVIS X1 - CLV-UPD Cable; CV-1500 Setting> System Setup > Peripherals 2> Select PIP;POP Device; CV-190;190 Plus;290+Pscu; Hd;Sd in (Sdi) Y;C in

CV-1500
CV-190/190PLUS290
MAJ-2363
87
◆ CV-190/190PLUS/290+PSCU
♯
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
2 MH-985 Y/C cable
3
MAJ-1942 Communication cable (0.7M)
MAJ-1948 Communication cable (1.8M)
4 MAJ-1898 CLV-UPD cable
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 12G-SDI OUT
(4K/HD) signal
HD:1080p 4K
Setting> System setup > Peripherals 2> Select PIP/POP device CV CV
Settings > User Settings > PIP/POP > Select CV ext. source
HD/SD IN
(SDI)
Y/C IN
■ Supplement
・ Please refer to the External Image Record Setting for how to record PSCU images.
■ Reference
Since the PIP has been entered into the CV, Force gauge screen is displayed on the monitor by performing the
following operations:
[How to display Force gauge screen]. Home > Function List > Info. > PIP/POP > PIP ON
OEV321UH
CV-1500
PSCU
*
3
LINK-OUT
CLV
UPD/PSCU
4
2
Y/C input
[SETTING INFORMATION]
Y/C
output
LINK-IN
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
* For OEV321UH connection and setting
Refer to "CV-
190/190PLUS/290+OEV321UH".
