CV-1500
CV-190/290/290
MAJ-2363
CV-190/190PLUS/290+EU-ME2 type A1 1/2
92
Keyboard
EVIS
HD/SD
SDI OUT

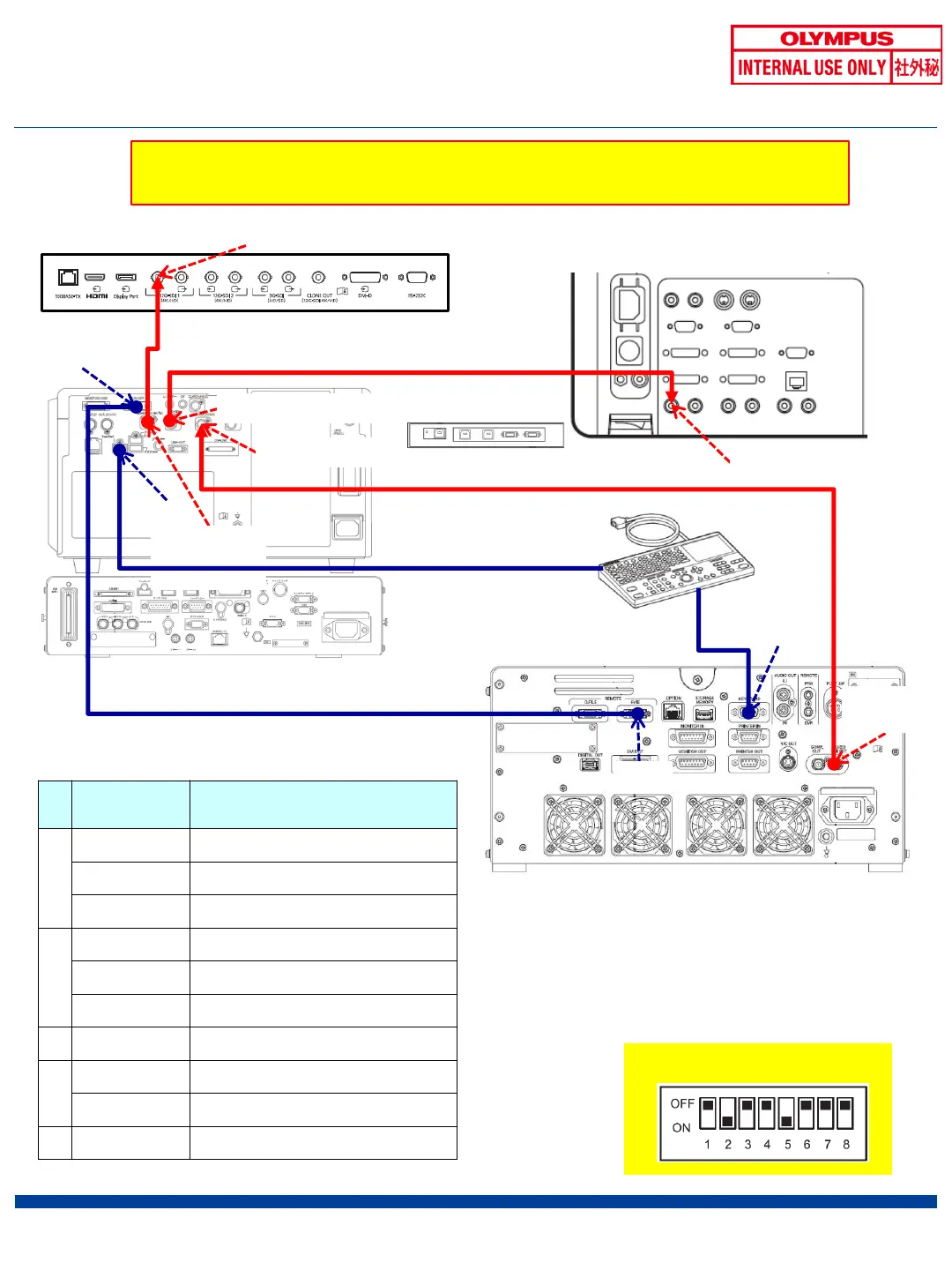

CV-1500 and EU-ME2 should be connected with SDI cable (2.5M).
Voltage fluctuations, such as lightning strikes, can cause noise in images.
SDI1 IN
3G-SDI output (HD)
1
2
3
5
OEV321UH
EU-ME2
MAJ-1995
OEV262H
DIP-switching setup for MAJ-1995
<List of Cables>
4
12G-SDI1 IN
12G-SDI
output
(4K/HD)
KEYBOARD
EUS/OFP
HD/SD input (SDI)
#
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
2
MAJ-2430 3G-SDI Cable (1.5M)
MAJ-2015 3G-SDI Cable (3.0M)
MAJ-2016 3G-SDI Cable (8.5M)
3
MAJ-1951 SDI cable (2.5M)
4
MAJ-604 DF remote cable (2 M)
MAJ-608 DF remote cable (15 M)
5
MAJ-1711 EVIS-
EUS connecting cable
* Please refer to EU-ME2 setting type Selection Flow and determine the wiring type.
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
