Olympus EVIS X1 - Outline of EU-ME2 Setting Types

Outline of EU-ME2 setting type
46
The outline of each connection type is as follows
* Select images to be stored by setting (see Appendix)
Type
A A1 E1S
CV PinP(SDI IN) CV PinP(SDI IN) SDI IN
US
Monitor display EVIS Imaging Comparable (4K, HD, SD) HD
Save image quality
Selectable in the
setting
* Same as EVIS
images
Selectable in the
setting
* Same as EVIS
images
Selectable in the
setting
* Same as EVIS
images

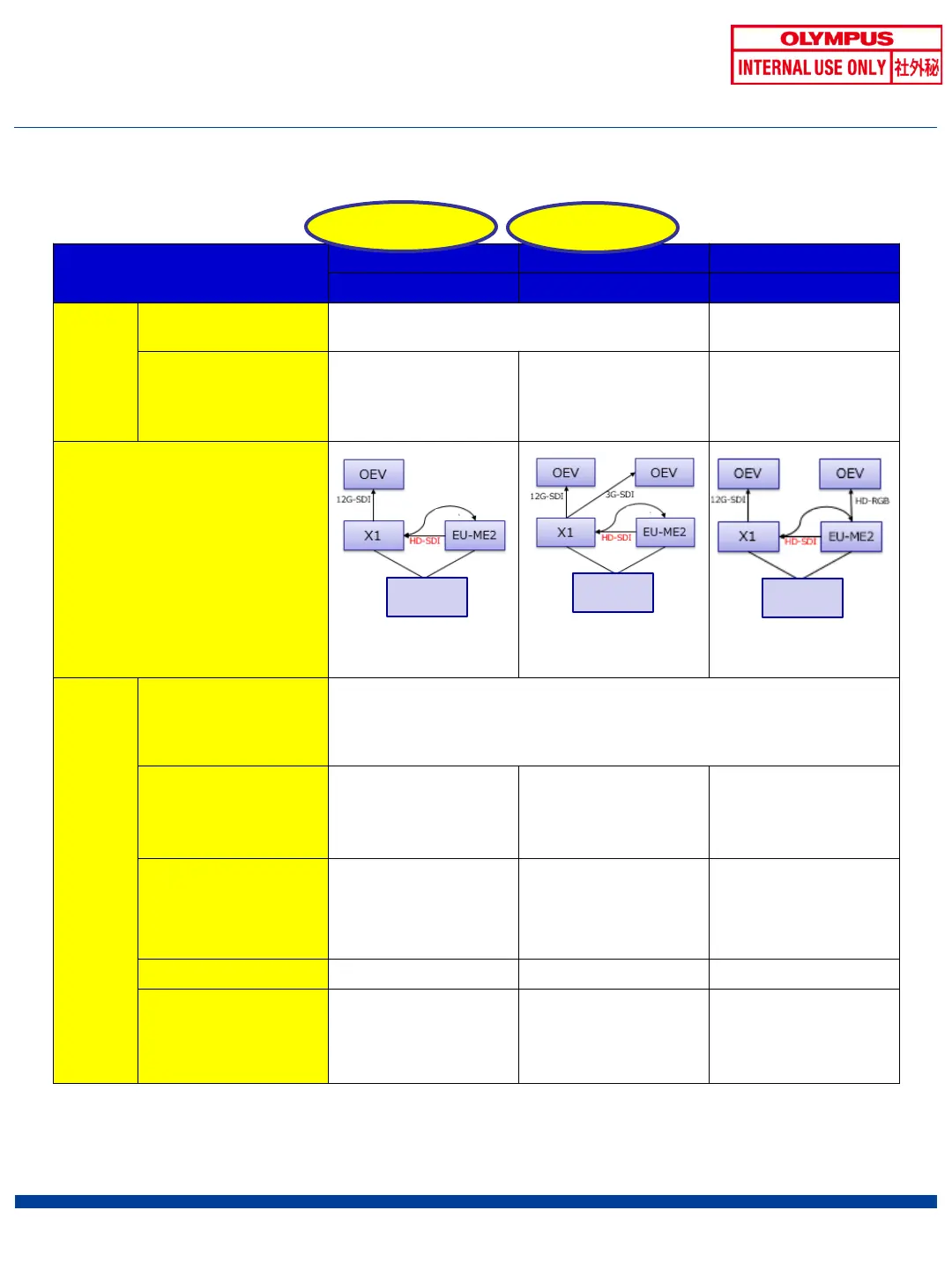

Simple diagram
Remarks
Wiring Use MAJ-1951 (2.5M) to connect CV-1500 and EU-ME2
P in P -
In US mode
No sub-screen
display
In US mode
No sub-screen
display
Maneuverability - -
If no ME2 is used,
additional wiring is
required for US
-
based monitors.
Stored image Options* Options* Options*
Other 1 Monitor
2 Monitors
Monitors 1: Fixed
EVIS
Monitors 2: EVIS/US
2 Monitors
Monitors 1: Fixed
EVIS
Monitor 2: Fixed US
Recommen
dation
Recommen
dation
Keyboard
Keyboard
Keyboard
Remote
Remote
Remote
