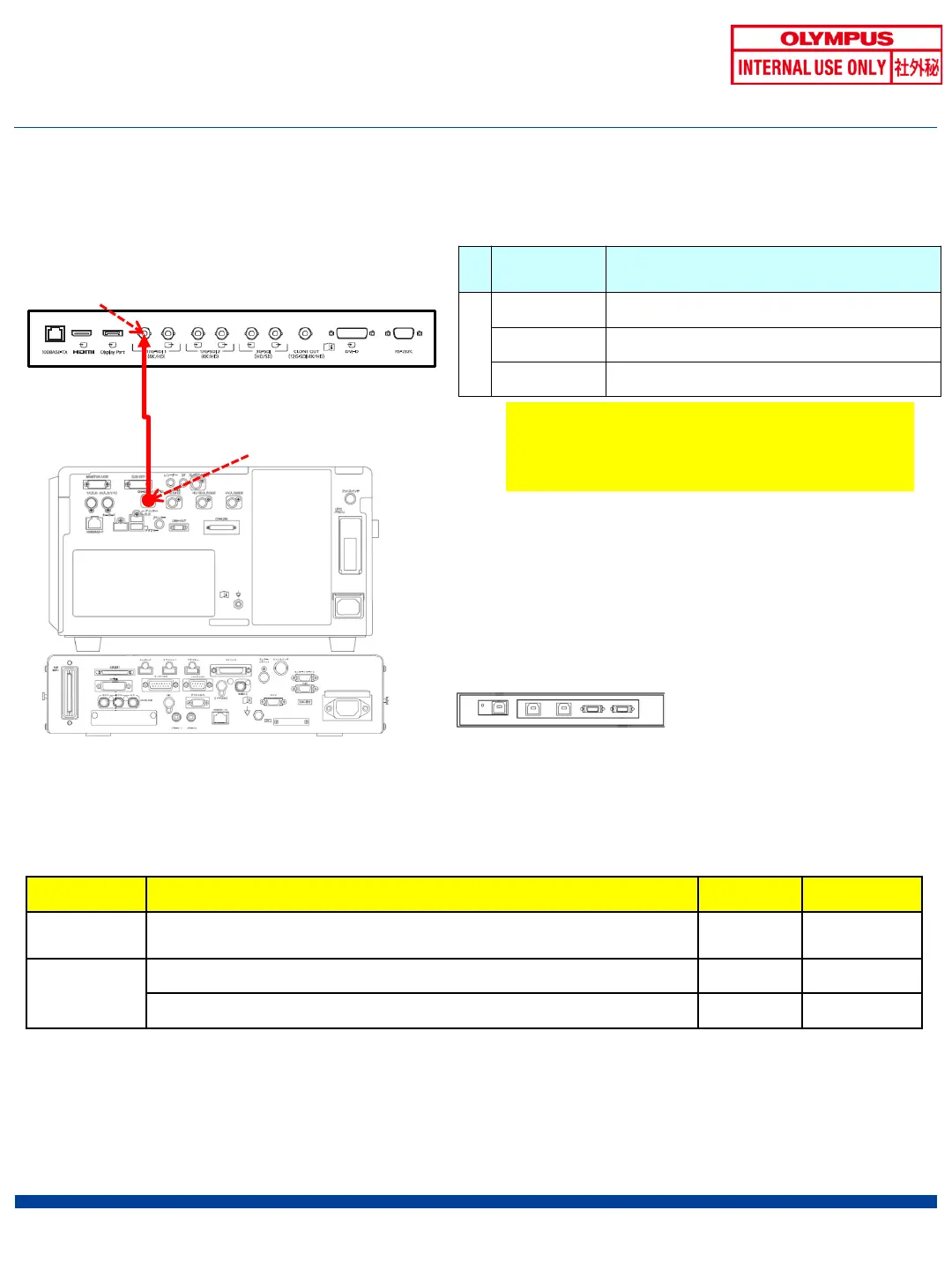

Olympus EVIS X1 - CV-190;190 PLUS;290 + OEV321 UH Setup

CV-1500
CV-190/190PLUS/290
MAJ-2363
76
◆ CV-190/190PLUS/290+OEV321UH
OEV321UH
<List of Cables>
1
Setting model Step Default After change
CV-1500
Setting > System setup > Video output > 12G-SDI OUT
(4K/HD) signal
HD:1080p 4K
OEV321UH
MENU > Preset > Load Preset B/C B/C
MENU > Input/Output Configuration > Port A Input Select 12G-SDI 1 12G-SDI 1
! Caution!
The 12G-SDI cable is required to output
4K image.
12G-SDI1 IN
12G-SDI output
[SETTING INFORMATION]
#
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
