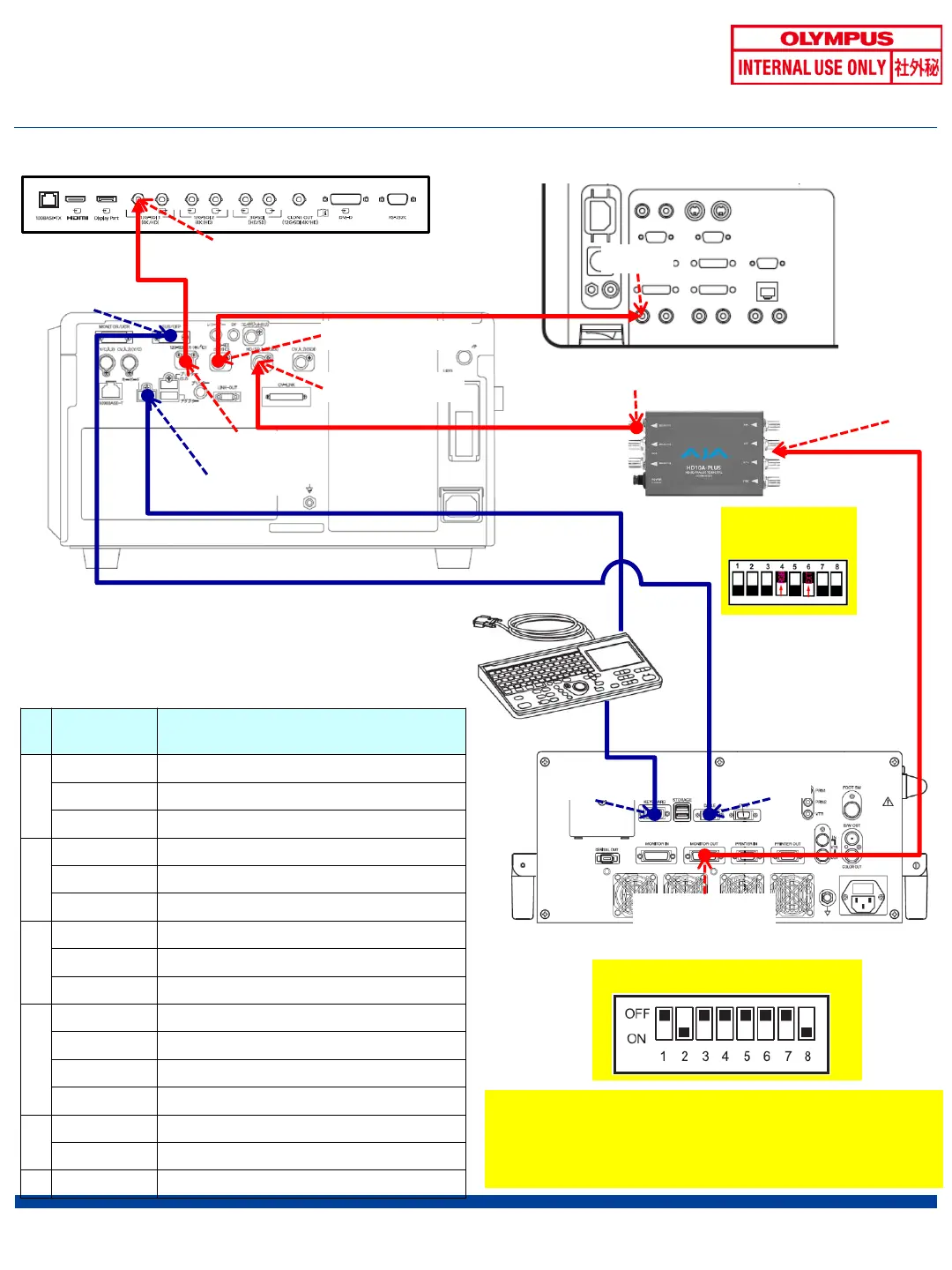

Olympus EVIS X1 - EU-ME1 Type A1

◆ EU-ME1 type A1 1/2
61
MONITOR OUT
RGB IN
SDI OUT1
HD/SD input (SDI)
12G-SDI
output
(4K/HD)
12G-SDI1 IN
Keyboard
KEYBOARD
EVIS
EUS/OFP
SDI1IN
3G-SDI output (HD)
OEV321UH
CV-1500
MAJ-1710
EU-ME1
SDI converter
Precautions for SDI Converters
・ Do not place beside CV-1500.
・ Take the power from the isolation transformer.
(Reference: SDI converter is a non-medical device.)
OEV262H
1
2
4
3
5
6
DIP-switching setup for MAJ-1710
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MAJ
-
2430
3G-SDI cable (1.5M)
MAJ
-
2015
3G-SDI cable (3.0M)
MAJ
-
2016
3G-SDI cable (8.5M)
3
MAJ
-
1951
SDI cable (2.5M)
MAJ
-
1912
SDI cable (8.5M)
MAJ
-
1464
SDI cable (22M)
4
MAJ
-
1586
HD/SD Monitor cables (2M)
MAJ-970 HD/SD Monitor cables (4M)
MAJ
-
1462
HD/SD Monitor cables (7M)
MAJ
-
1584
HD/SD Monitor cables (15M)
5
MAJ-604 DF remote cable (2 M)
MAJ-608 DF remote cable (15 M)
6
MAJ
-
1711
EVIS-EUS connecting cable
<List of Cables>
DIP-switching setup for
SDI converter
