Olympus EVIS X1 - CLV-UPD Cable; Y;C Input LINK-OUT

CV-1500
CV-190/190PLUS290
MAJ-2363
88

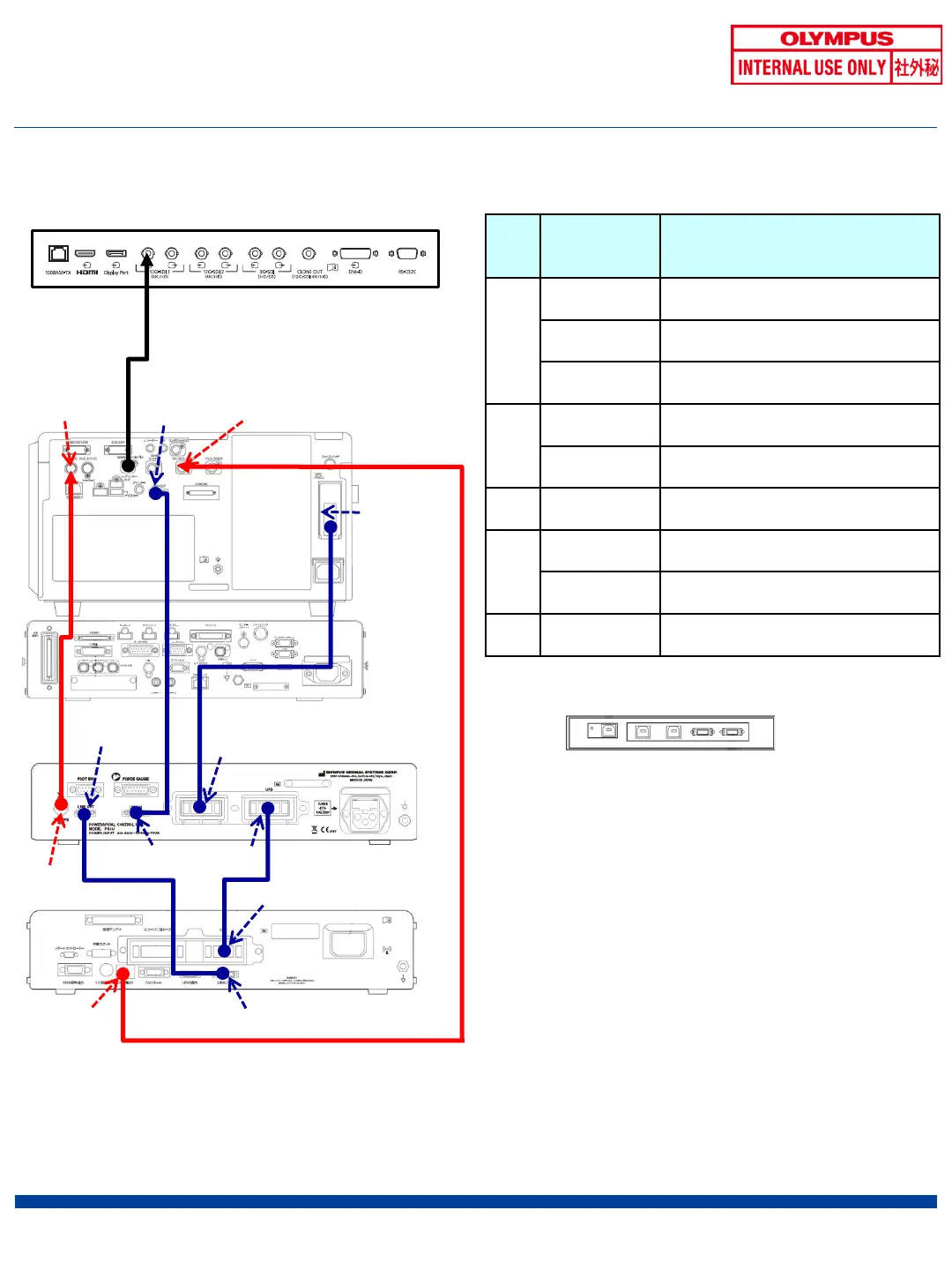

◆ CV-190/190PLUS/290+UPD-3+PSCU 1/2
♯
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
2
MAJ-1912 SDI-cable (8.5M)
MAJ-1951 SDI-cable (2.5M)
3 MH-985 Y/C cable
4/5
MAJ-1942 Communication cable (0.7M)
MAJ-1948 Communication cable (1.8M)
6/7 MAJ-1898 CLV-UPD cable
<List of Cables>
OEV321UH
CV-1500
UPD-3
*
LINK-OUT
LINK-IN
UPD/PSCU
4
2
Y/C input
PSCU
HD/SD input
Y/C
output
SDI output
LINK-IN
CLV
LINK-OUT
CLV
UPD
3
5
6
7
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
* For OEV321UH connection and setting
Refer to "CV-
190/190PLUS/290+OEV321UH".
