Olympus EVIS X1 - CV-190;190 Plus;290+Oep-6; SDI Outputs

CV-1500
CV-190/190PLUS/290
MAJ-2363
79
◆ CV-190/190PLUS/290+OEP-6
♯
Product
symbol
Name
1
MAJ-2430 3G-SDI cable (1.5M)
MAJ-2015 3G-SDI cable (3.0M)
MAJ-2016 3G-SDI cable (8.5M)
2 MAJ-1918 Remote cable 1.8M
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 3G-SDI OUT
(HD/SD) signal
HD:1080p HD:1080P
Setting > System setting > Peripherals 1 > Video printer type Not connected OEP-6
Setting> User Setting > Release/Pre-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video printers
OEP-6
MENU > System setup > Remote setup >REMOTE3 Device
type
CV CV
MENU > System setup > Input setup > Input signals Auto Auto
! Caution!
Since OEP-6 is not 4K compatible, set to
HD:1080p or less when outputting the image
from CV-1500.
■ Supplement
* Connecting MAJ-1918 turns the remote lock ON, which overrides OEP-5's front-panel operation, and
thereafter it can be operated by touch-panel of the CV.

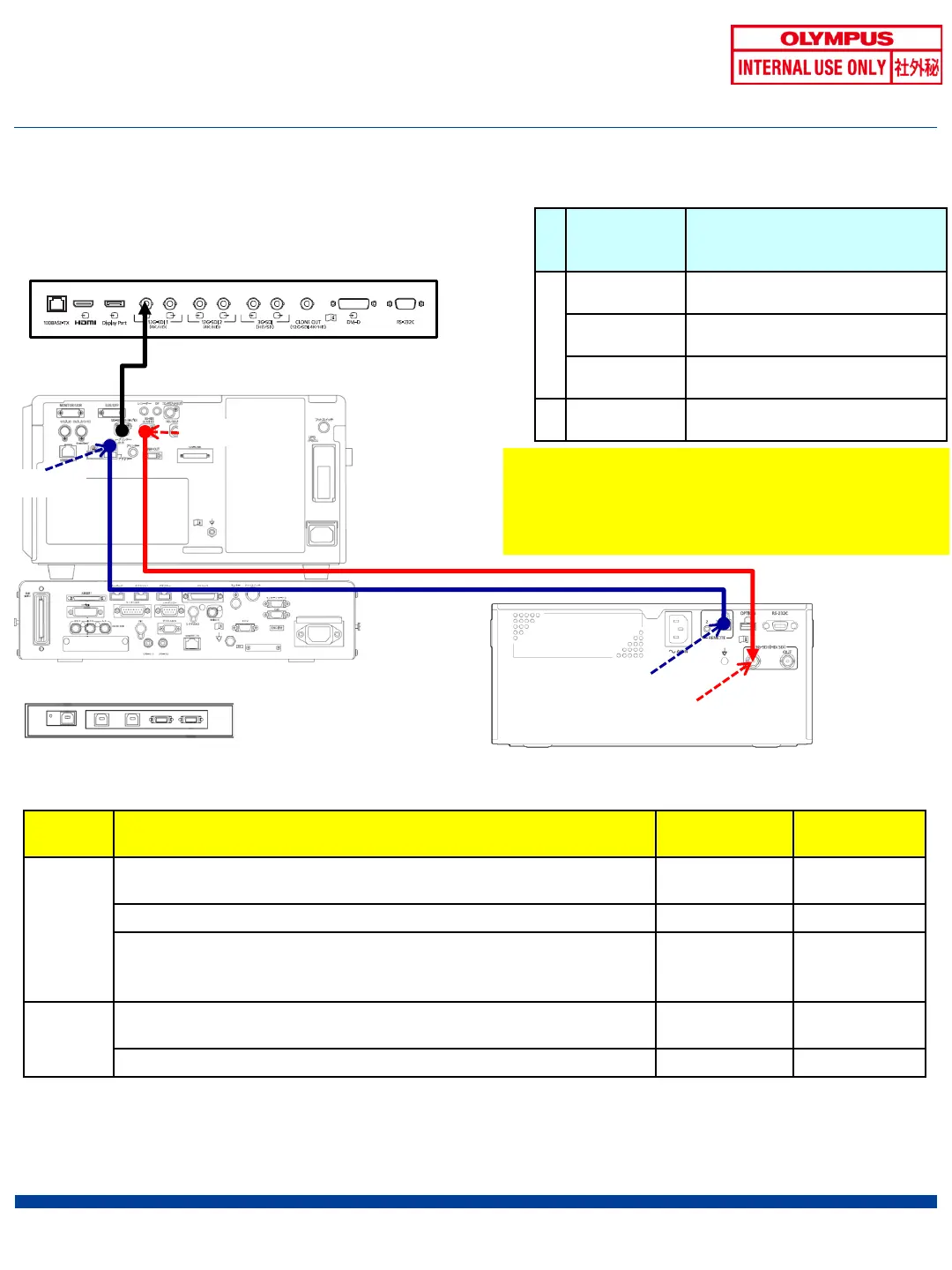

OEV321UH
OEP-6
1
2
Printer
3G-SDI outputs
REMOTE3
3G-SDI IN
* For OEV321UH connection and setting
Please refer to "CV-190/190PLUS/290+OEV321UH".
*
[SETTING INFORMATION]
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
