Olympus EVIS X1 - CV-190;190 PLUS;290 + EU-ME1 Type A Setup

CV-1500
CV-190/190PLUS/290
MAJ-2363

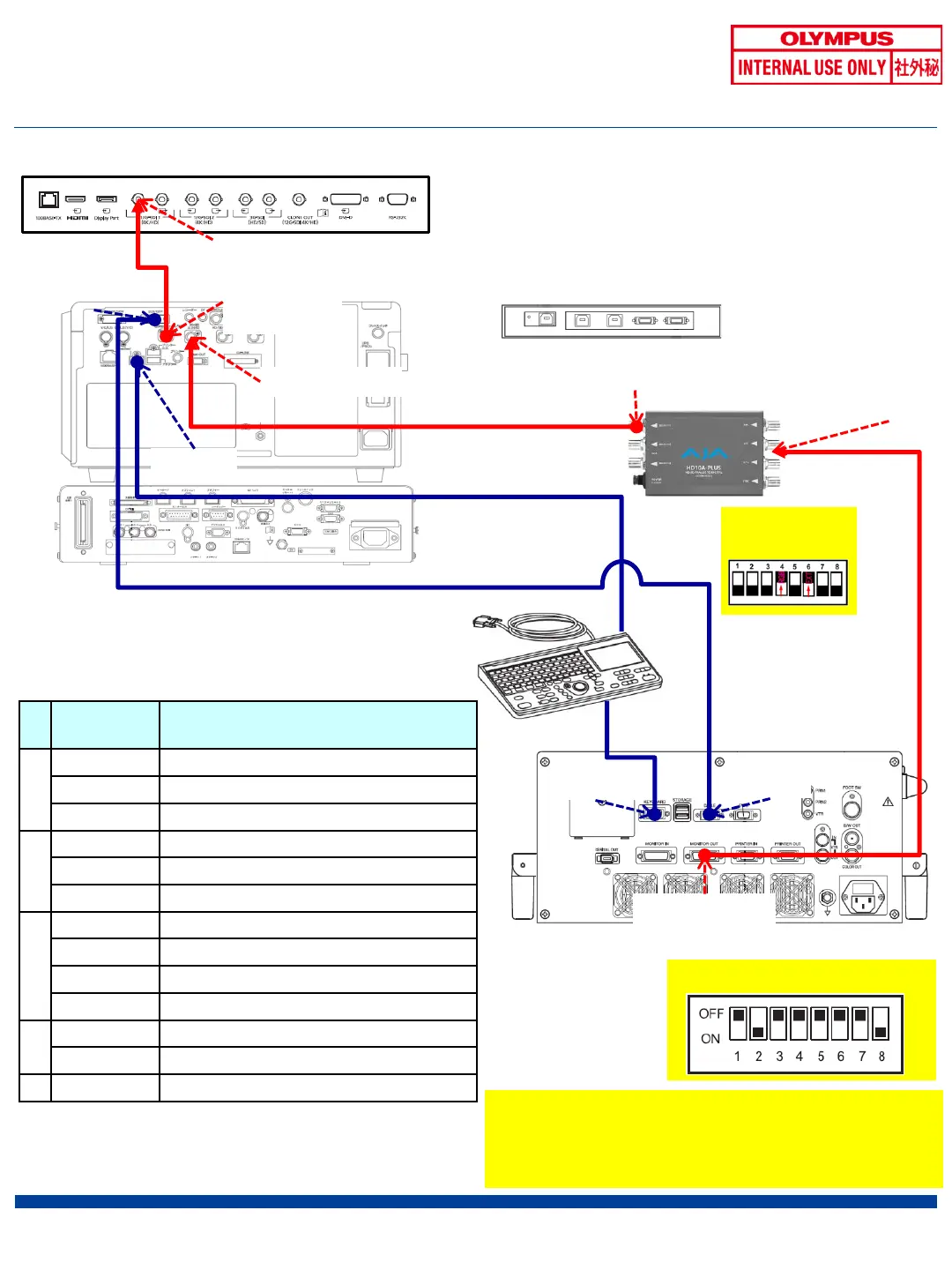

◆ CV-190/190PLUS/290+EU-ME1 type A 1/2
96
MONITOR OUT
RGB IN
SDI OUT1
HD/SD input (SDI)
12G-SDI
output
(4K/HD)
12G-SDI1 IN
Keyboard
KEYBOARD
EVIS
EUS/OFP
OEV321UH
MAJ-1710
EU-ME1
SDI converter
Precautions for SDI Converters
・ Do not place beside CV-1500.
・ Take the power from the isolation transformer.
(Reference: SDI converter is a non-medical device.)
1
2
3
4
5
DIP-switching setup for MAJ-1710
<List of Cables>
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MAJ
-
1951
SDI cable (2.5M)
MAJ
-
1912
SDI cable (8.5M)
MAJ
-
1464
SDI cable (22M)
3
MAJ
-
1586
HD/SD Monitor cable (2M)
MAJ-970 HD/SD Monitor cable (4M)
MAJ
-
1462
HD/SD Monitor cable (7M)
MAJ
-
1584
HD/SD Monitor cable (15M)
4
MAJ-604 DF remote cable (2 M)
MAJ-608 DF remote cable (15 M)
5
MAJ
-
1711
EVIS-EUS connecting cable
* Please refer to EU-ME1 setting type Selection Flow and determine the wiring type.
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
DIP-switching setup for
SDI converter
