Olympus EVIS X1 - EU-ME1 Type B

◆ EU-ME1 type B 1/2
59
VTR OUT
Y/C
input
12G-SDI
output
(4K/HD)
12G-SDI1 IN
Keyboard
KEYBOARD
EVIS
EUS/OFP
OEV321UH
CV-1500
MAJ-1710
EU-ME1
1
2
4
3

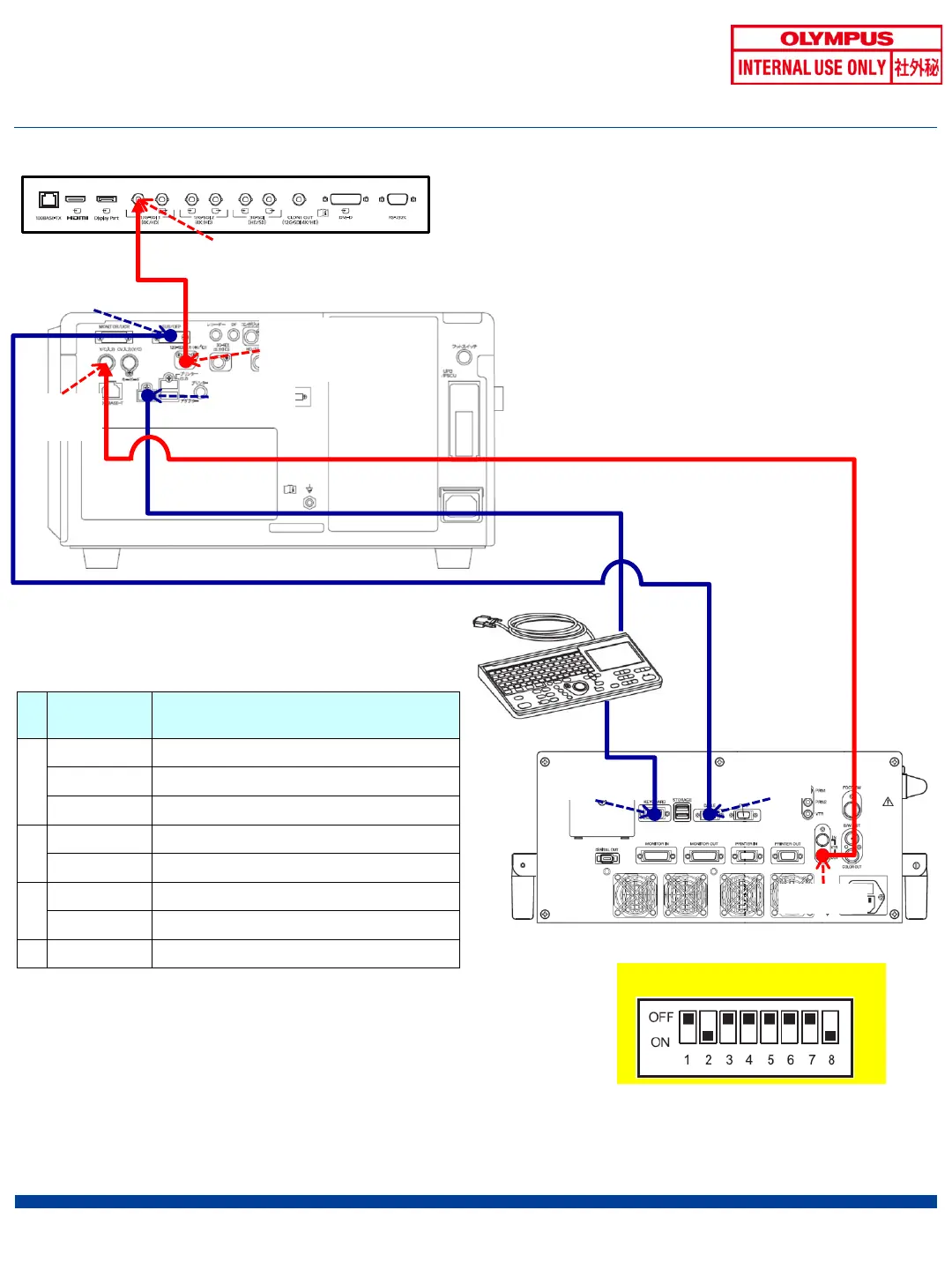

DIP-switching setup for MAJ-1710
<List of Cables>
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MH-985 Y/C cable (2.95M)
MAJ-987 Y/C cable (15M)
3
MAJ-604 DF remote cable (2 M)
MAJ-608 DF remote cable (15 M)
4
MAJ
-
1711
EVIS-EUS connecting cable
